(4) The PWM function, set the frequency and duty cycle through “PWM_FREQ” and
“PWM_DUTY”. Please refer to ZBasic for details.
(5) Hardware comparison output can be set and opened through “HW_PSWITCH2”.
Please refer to ZBasic for details.

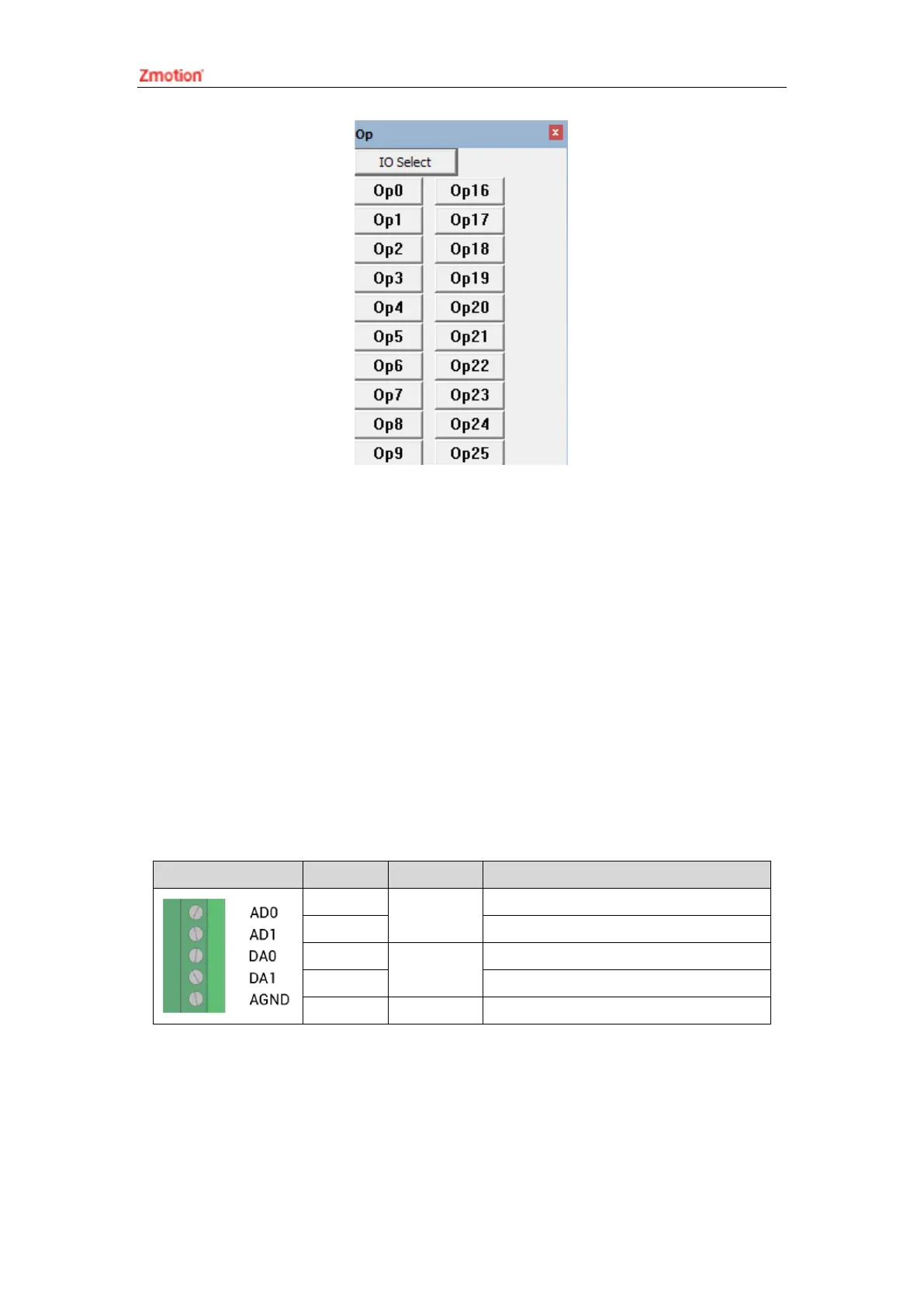

3.6. AD/DA Analog Input / Output
The analog port adopts a set of 5Pin screw-type pluggable terminals with a spacing
of 3.81mm.
→ Terminal Definition
Terminal
Name
Type
Function
AD0
Input
Analog input terminal: AIN(0)
AD1
Analog input terminal: AIN(1)
DA0
Output
Analog output terminal: AOUT(0)
DA1
Analog output terminal: AOUT(1)
AGND
Public End
Analog public end
3.6.1. Analog Output Specification & Wiring
→ Specification
