Zmotion ZMC420SCAN - 3.6.1. Analog Output Specification & Wiring

ZMC420SCAN Motion Controller Hardware Manual V1.5
Item
AD (0-1)
DA（0-1）
Resolution
12-bit
12-bit
Data range
0-4095
0-4095
Signal range
0-10V input
0-10V output
Data refresh ratio
1KHz
1KHz
Voltage input impedance /
output load
>40KΩ (voltage input
impedance)
>1KΩ (voltage output
load)

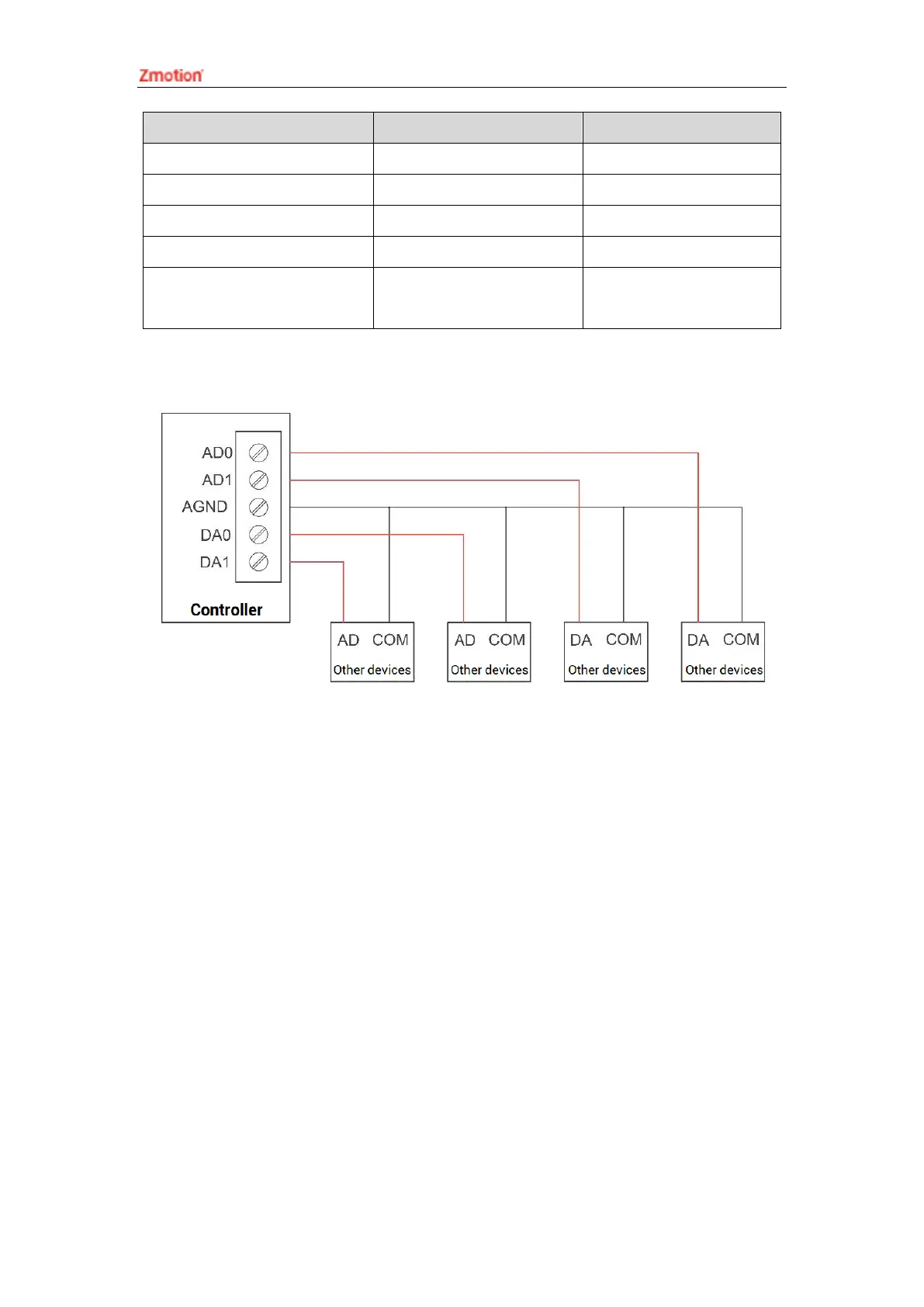

→ Wiring Reference
→ Wiring Note:
⚫ The analog input/output wiring method is as shown in the figure above, and the
external load signal range must match with this signal range.
⚫ Please use STP, especially in bad environments, and make sure the shielding layer is
fully grounded.
→ Cable Requirements:
Shielded Twisted Pair, and the shielded cable is grounded.
