Connecting
1, 7
4
25 3
6
1.

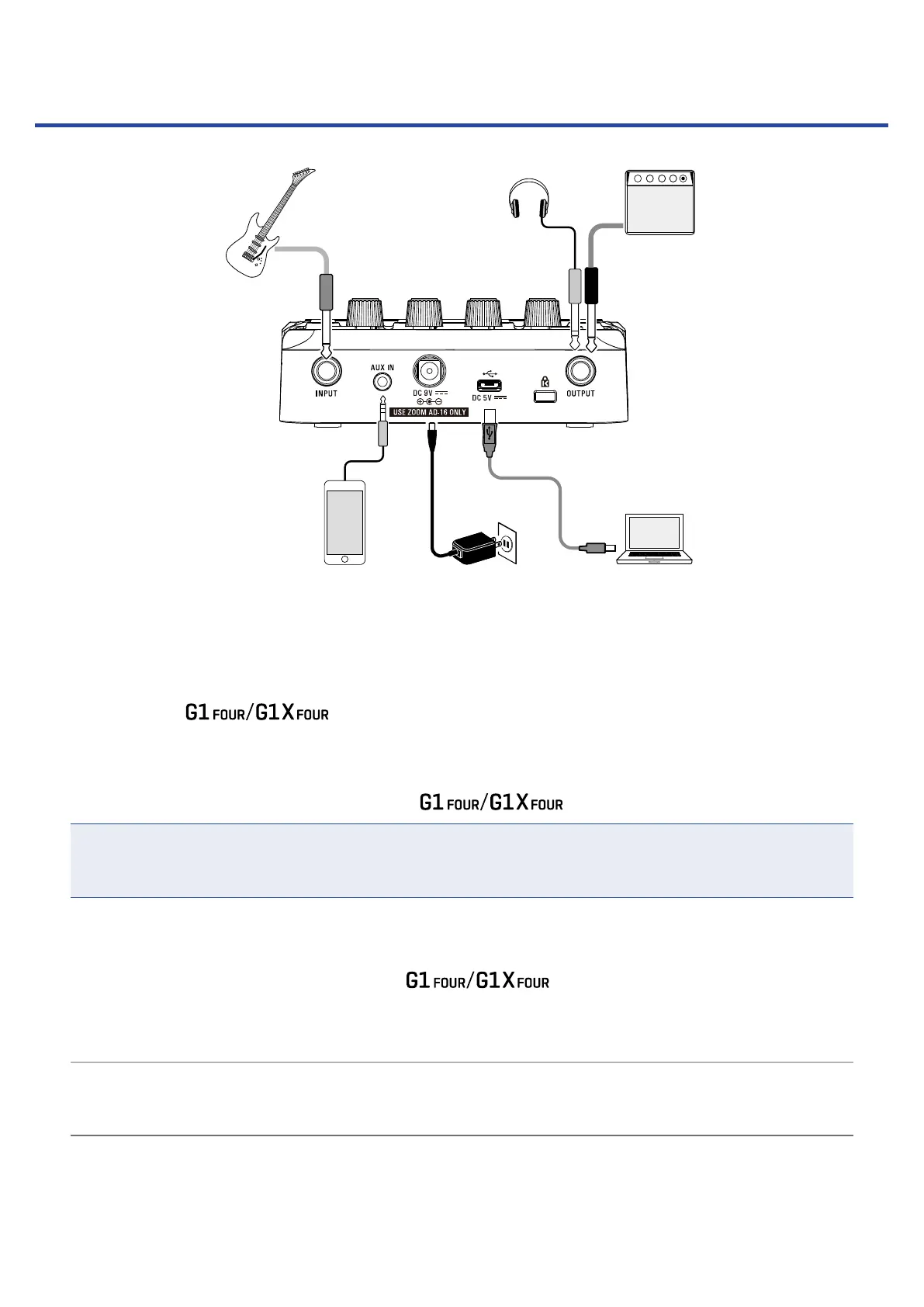

Minimize the volume of the guitar amp.
2.
To use AC power supply, connect to the dedicated AC adapter (ZOOM AD-16) to the AC adapter jack
and an outlet.
This turns the
power ON.
3.
To use a computer, connect a USB cable (not included) to the USB port and the computer.
When using USB bus power to operate the
, connecting this cable will turn it ON.
Guitar Lab
By using Guitar Lab, you can manage patches and edit and add effects, for example from a computer.
Download Guitar Lab from the ZOOM website (https://www.zoom.co.jp).
4.
Connect a guitar to the INPUT jack.
When using battery power to operate the
, connecting to this will turn it ON.
5.
To use external input, connect a portable audio player or other device to the AUX IN jack.
HINT
Signals input through the AUX IN jack will be sent to the OUTPUT jack directly without passing through
the built-in effects.
6.
Connect a guitar amp or headphones to the OUTPUT jack.
7.
Raise the guitar amp volume.
