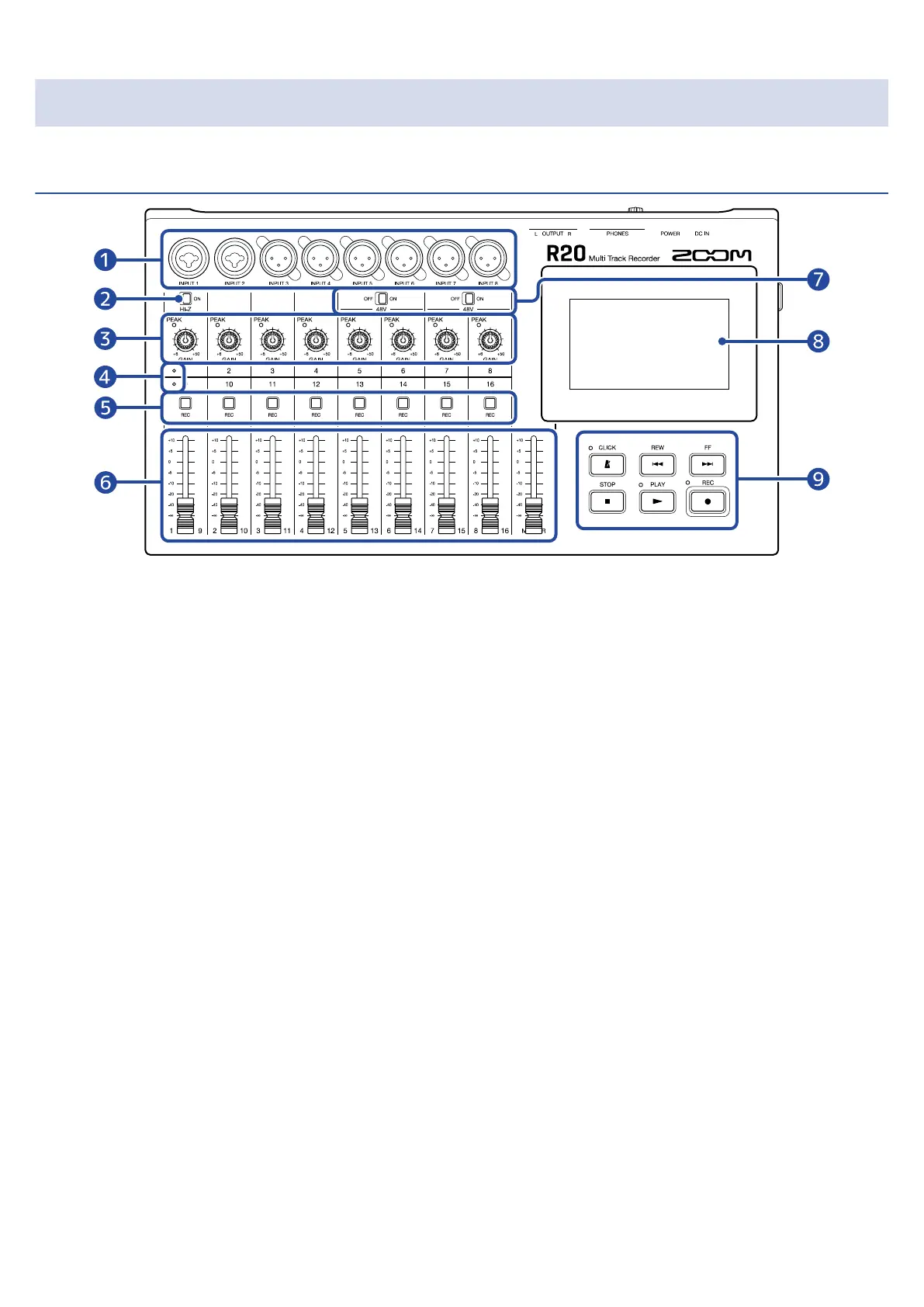

Functions of parts
Top
❶
Input jacks
Use INPUTS 1 and 2 to connect mics, keyboards and guitars. These support XLR and 1/4-inch phone
(unbalanced) plugs.
Use INPUTS 3–8 to connect mics and keyboards. These support XLR plugs.
❷
Hi-Z switch
Turn Hi-Z on/off for INPUT 1. Turn it on as necessary for the connected guitar or bass.
❸
Input PEAK indicators/GAIN knobs
Use the input GAIN knobs to adjust input signals. Adjust them so that the PEAK indicators do not light.
❹
Track indicators
These show whether the channel inputs and the faders are connected to tracks 1–8 or 9–16.
❺
Track REC buttons
Press these buttons to enable recording on tracks. They light red when enabled.
❻
Channel/MASTER faders
Channel faders: These adjust individual track signal levels in a range from −∞ to +10 dB.
MASTER fader: This adjusts the signal levels of the MASTER track, which is a stereo mix of the individual
tracks, in a range from −∞ to +10 dB.
❼
PHANTOM switches
These turn +48V phantom power on/off. Turn these on when, for example, connecting condenser mics
that support phantom power to INPUTS 5–8.
❽
Touchscreen
This shows various types of information and is operated by touch.
7
