RT100 Rough Terrain Crane
07 - 17
C. Auxiliary Winch
(1) The left joystick controls the auxiliary winch. Push the joystick forward to
reel-off to move the load down. Pull it to the rear to spool-up to move the load
up.
Note
Only when the operator’s seat is occupied and the icon on the display
lights up,can the joysticks initiate various movement.

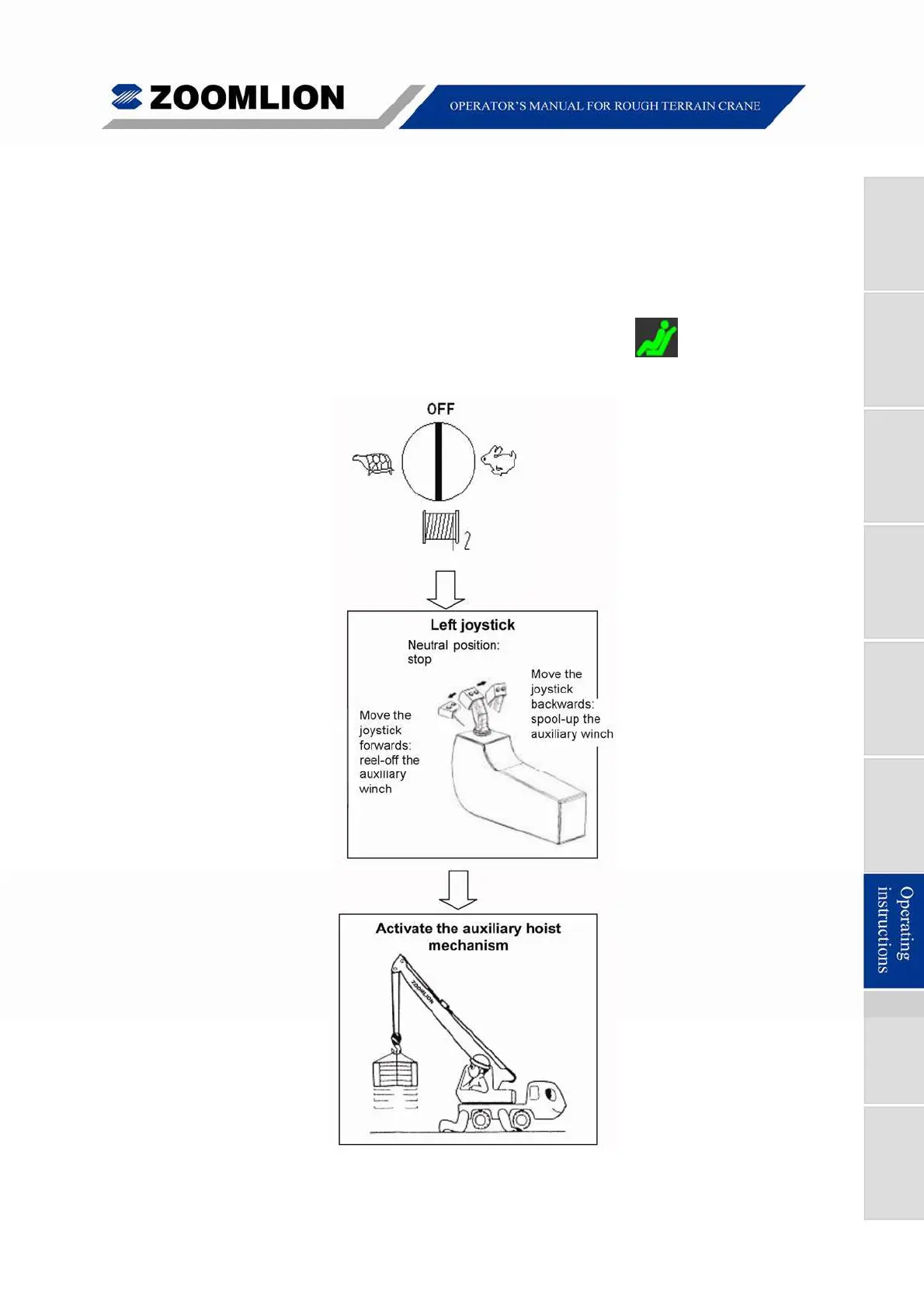

Figure 07 – 10 Auxiliary Winch - Left Joystick
