RT100 Rough Terrain Crane
07 - 16

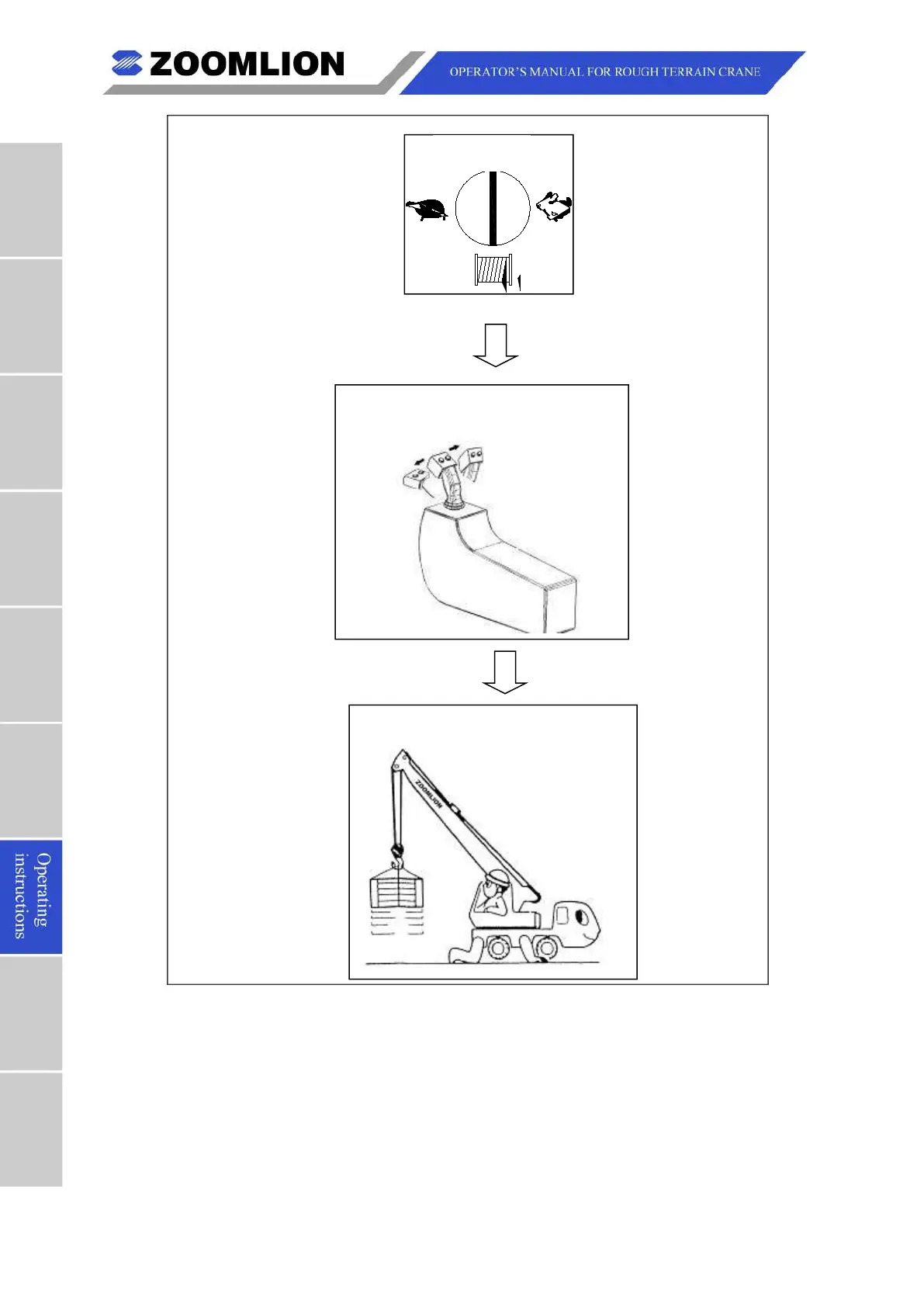

Figure 07 – 9 Main Winch - Right Joystick
Right joystick
Activate the main winch
mechanism
OFF
Move the
joystick
forward:
reel off the
main winch
Move the
joystick
backward:
spool up the
main winch
Neutral position: stop
Main Winch Control on
dash. Position switch to
desired winch speed
(high or low).
