RT100 Rough Terrain Crane
07 - 15

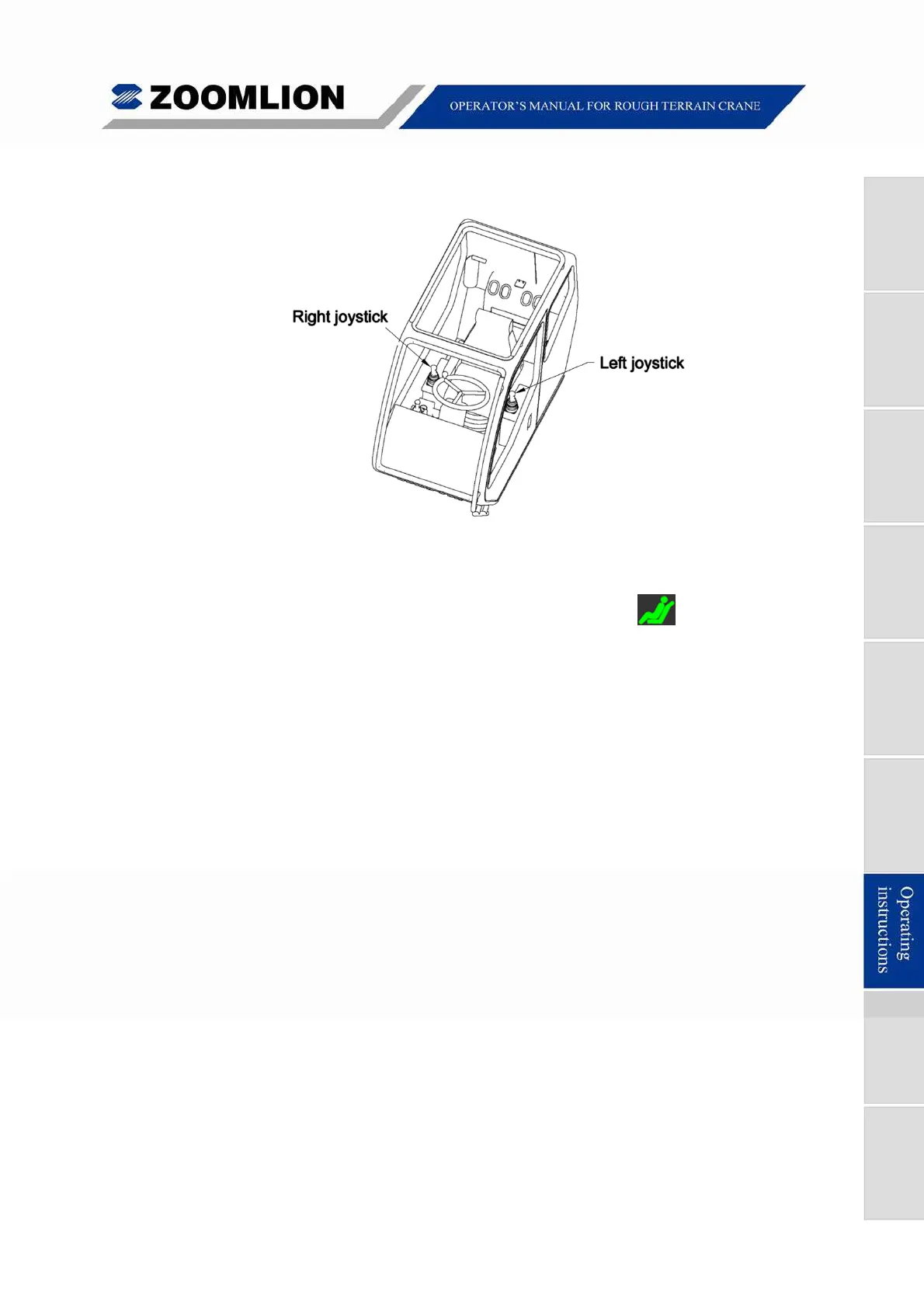

Figure 07 – 8 Joystick Locations
Note
Only when the operator’s seat is occupied and the icon on the display
lights up,can the right joystick initiate various movement.
(1) If the end of the boom is not directly above the load lift point when you lift a
load, do the steps that follow:
(a) Push the FREE SWING button. The FREE SWING indicator illuminates
and the free swing is active.
(b) Let the boom automatically align the end of the boom above the load.
(c) Push FREE SWING button again to disengage free swing. The FREE
SWING indicator goes off.
(d) The Main Winch Control is on the dash. Set it for the necessary winch
speed (high or low).
