RT100 Rough Terrain Crane 07 -
21

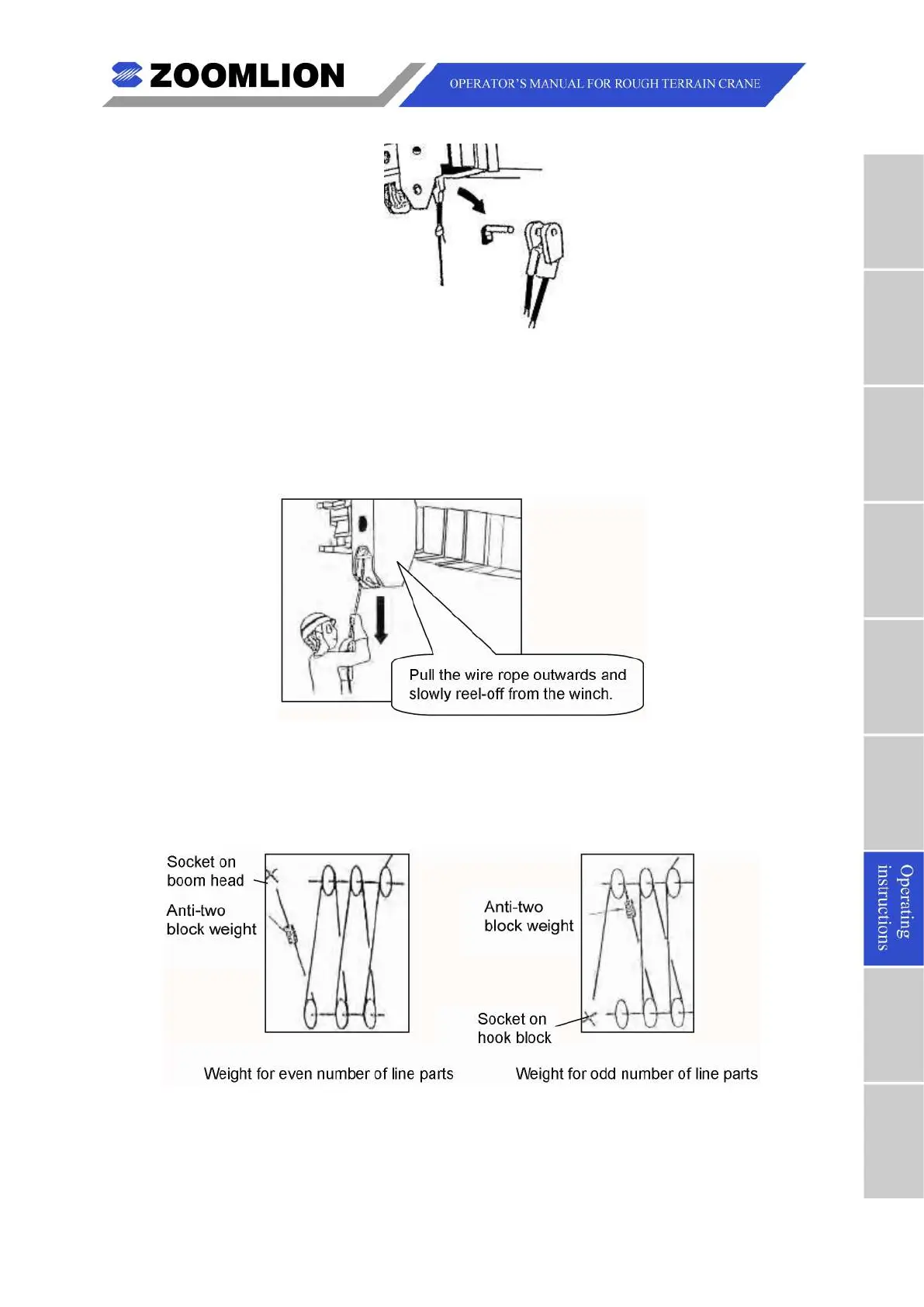

(d) Remove the wedge and socket assembly (beckett).
Figure 07 – 14 Even Line Parts
Dead end the rope on the hook block for an odd number of parts, and on the
boom head for an even number of parts.
(e) Change the line parts.
Figure 07 – 15 Line Part Change
You must change the location of the anti-two block weight if you have a different
number of wire-rope wraps.
Figure 07 – 16 Even and Odd Line Parts
(f) Put the wire-rope on the winch spool smoothly and in sequence.
(g) Install the socket and wire-rope clamp. Refer to Figure 07 – 17.
