RT100 Rough Terrain Crane
07 - 20
D. Hoist Line Reeving
(1) Before you start to change the wire-rope parts, fully retract the boom and move it
to the front of the crane.
(2) Change the wire-rope parts as follows:
(a) Derrick the boom down to put the hook on the ground.

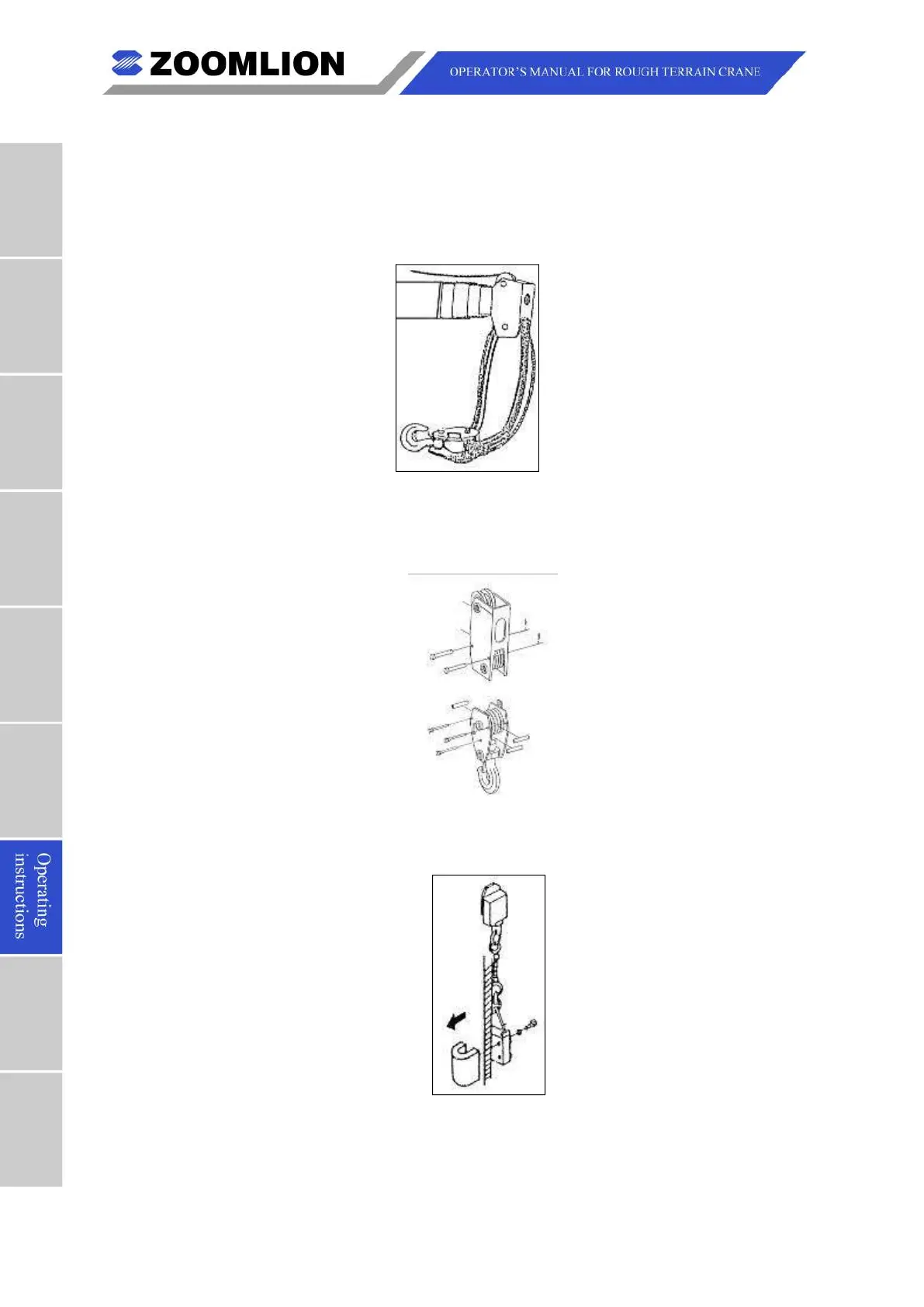

Figure 07 – 11 Down Boom Position
(b) Remove the pins on the hook block and boom head to let the wire rope
unreave.
Figure 07 – 12 Hook Assembly
(c) Remove the anti-two block weight.
Figure 07 – 13 Anti-Two Block Weight
