RT100 Rough Terrain Crane
07 - 36
J. Swing + Auxiliary Winch
(1) You can swing the superstructure to the left or right and move the auxiliary hook up
or down at the same time. For this type of move, it is necessary for the operator to
move the joystick two adjacent directions. For example, to swing the superstructure
to the right and move the auxiliary hook down, push the left joystick up and to the
right (1:30 clock position). Refer to Figure 07 – 36. The other movements on the left
joystick are as follows:
(2) Push up and to the left (10:30 clock position) - the superstructure swings to the left
the auxiliary hook moves down.
(3) Pull aft and to the right (4:30 clock position) - the superstructure swings to the right
and the auxiliary hook moves up.
(4) Pull aft and to the left (7:30 clock position) the superstructure to the left and the
auxiliary hook moves up.

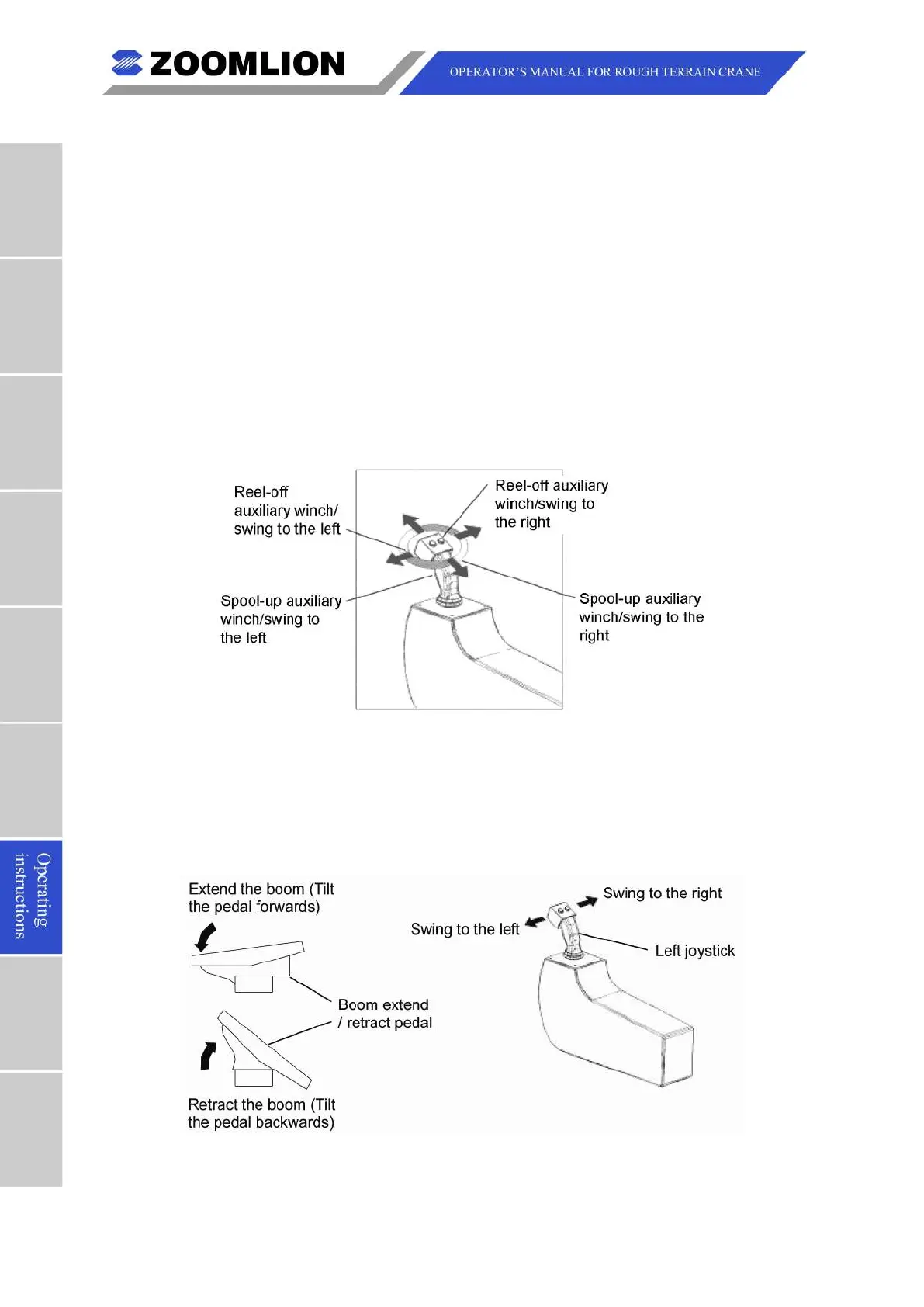

Figure 07 – 36 Swing + Auxiliary Winch
K. Swing + Extend or Retract the Boom
You can extend or retract the boom and to swing the superstructure to the left or right at
the same time. To do this, push the left pedal and move the left joystick left or right. Refer
to Figure 07 – 37.
Figure 07 – 37 Swing + Boom Extend or Retract
