RT100 Rough Terrain Crane 07 -
35
H. Swing + Main Winch
You can swing the superstructure to the left or right and move the main hook up or down
at the same time. To do this, move the left joystick left or right and push or pull the right
joystick. Refer to Figure 07 – 34.

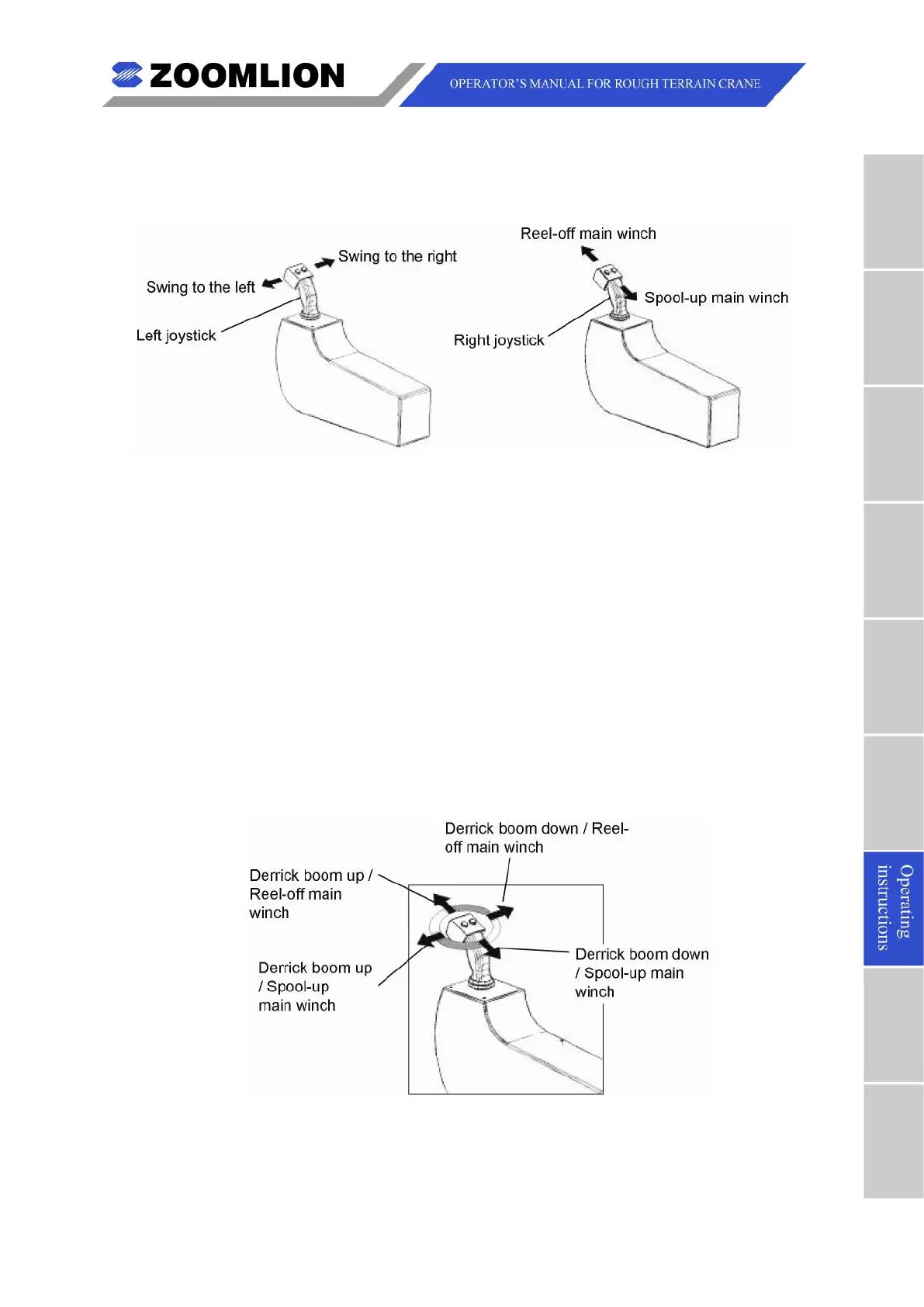

Figure 07 – 34 Swing + Main Winch
I. Derrick + Main Winch
(1) You can move the boom up or down and move the main hook up or down at the
same time. For this type of move, it is necessary for the operator to move the
joystick two adjacent directions. For example, to move the boom and main hook
down, push the right joystick up and to the right (1:30 clock position). Refer to Figure
07 – 35. The other movements on the right joystick are as follows:
(2) Push up and to the left (10:30 clock position) - the boom moves up and the main
hook moves down.
(3) Pull aft and to the right (4:30 clock position) - the boom moves down and the main
hook moves up.
(4) Pull aft and to the left (7:30 clock position) - the boom moves up and the main hook
moves down.
Figure 07 – 35 Derrick + Main Winch
