RT100 Rough Terrain Crane
07 - 34
F. Derrick + Auxiliary Winch
You can move the boom up or down and move the auxiliary hook up or down at the same
time. To do this, push or pull the left joystick and move the right joystick left or right. Refer
to Figure 07 – 32.

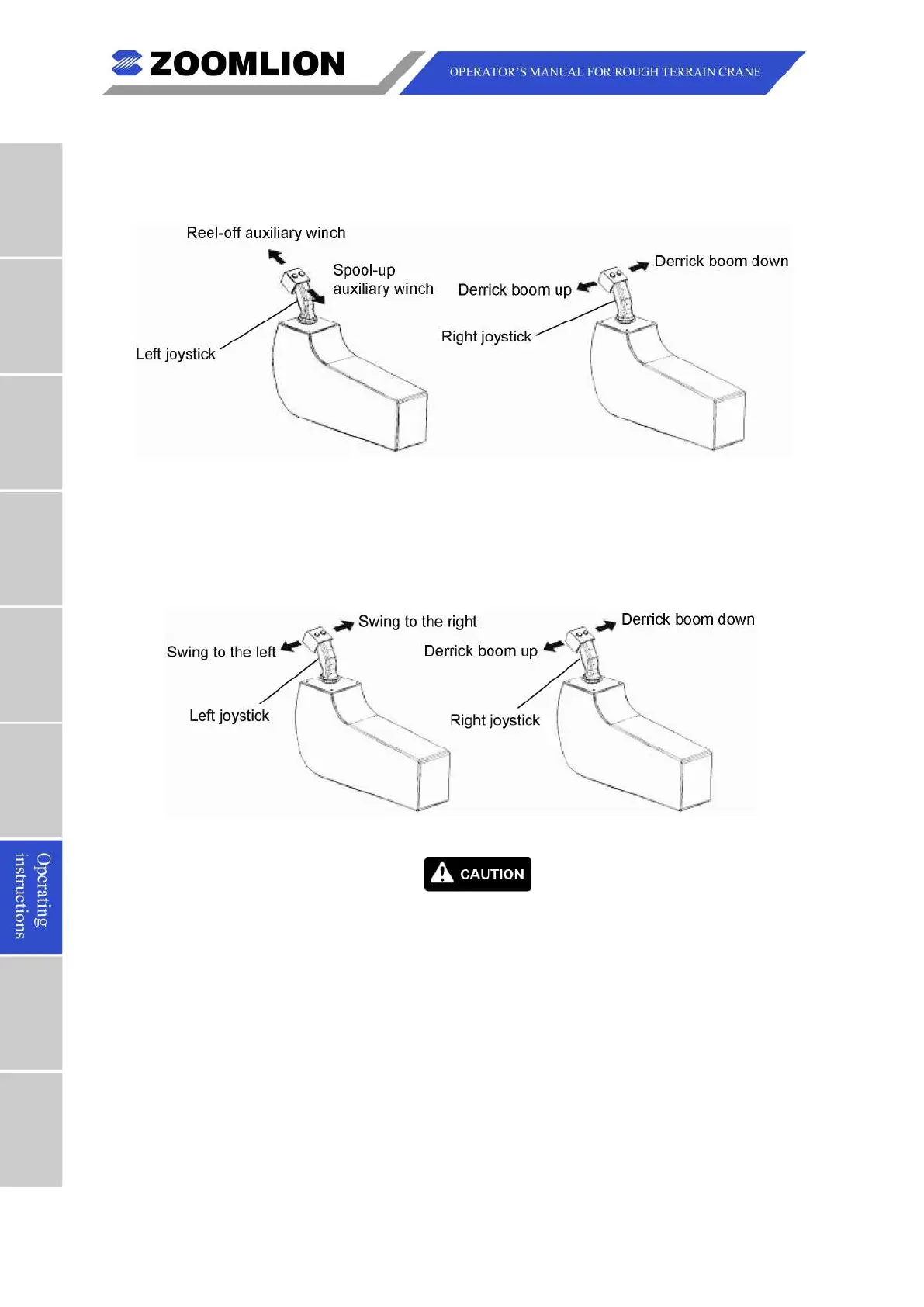

Figure 07 – 32 Derrick + Auxiliary Winch
G. Swing + Derrick
You can swing the superstructure to the left or right and move the boom up or down at
the same time. To do this, move the left joystick left or right and move the right joystick
left or right. Refer to Figure 07 – 33.
Figure 07 – 33 Swing + Derrick
When you lift the load, it moves. Be careful not to touch the outriggers with
the load.
