RT100 Rough Terrain Crane
07 - 38
(6) Extend the intermediate bracket and remove the pin (1).

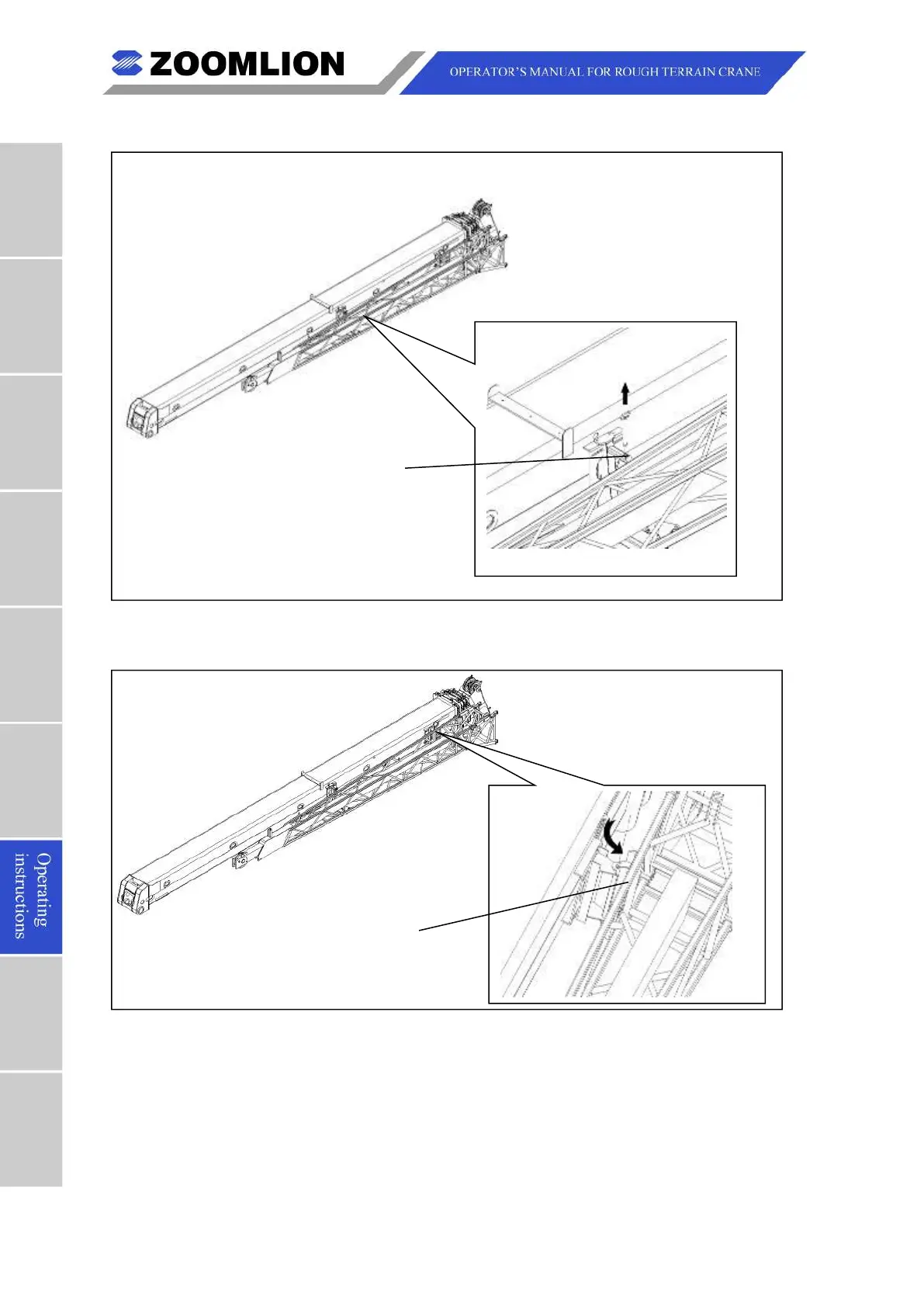

Figure 07 – 40 Pin (1) Removal
(7) Move front of the jib away from the main boom (jib pivots at pin 2).
Figure 07 – 41 Pin (2) Location
Pin 2
Pin 1
