RT100 Rough Terrain Crane 07 -
39

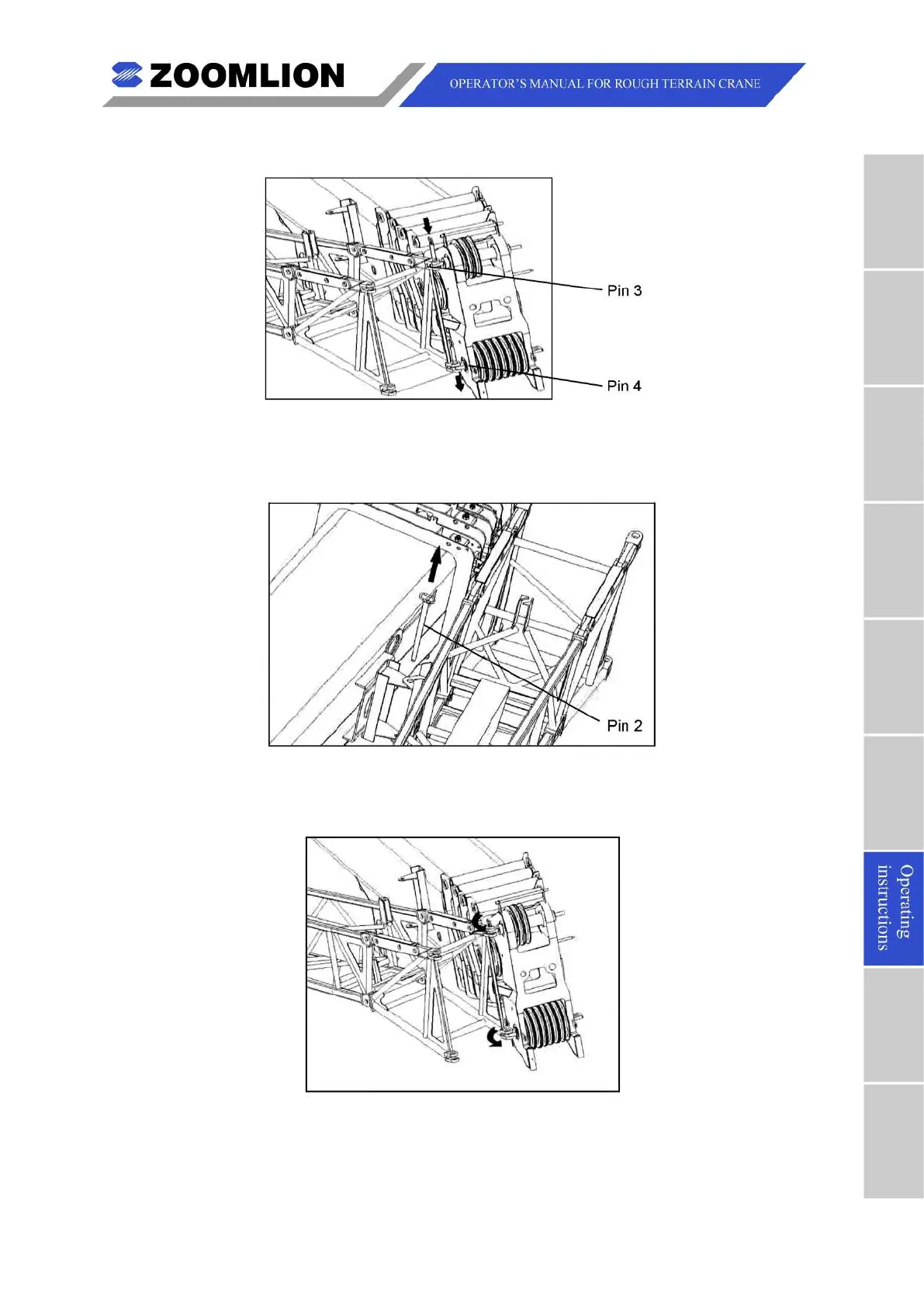

(8) Align the end of the jib with the connection points on the end of the boom. Install
the pin (3) and pin (4) and retaining clip.
Figure 07 – 42 Pin (3) and Pin (4) Installation
(9) Remove the pin 2.
Figure 07 – 43 Pin (2) Removal
(10) Move the jib (pivots on pin 3 and pin 4) to the front of the main boom.
Figure 07 – 44 Move the Jib
