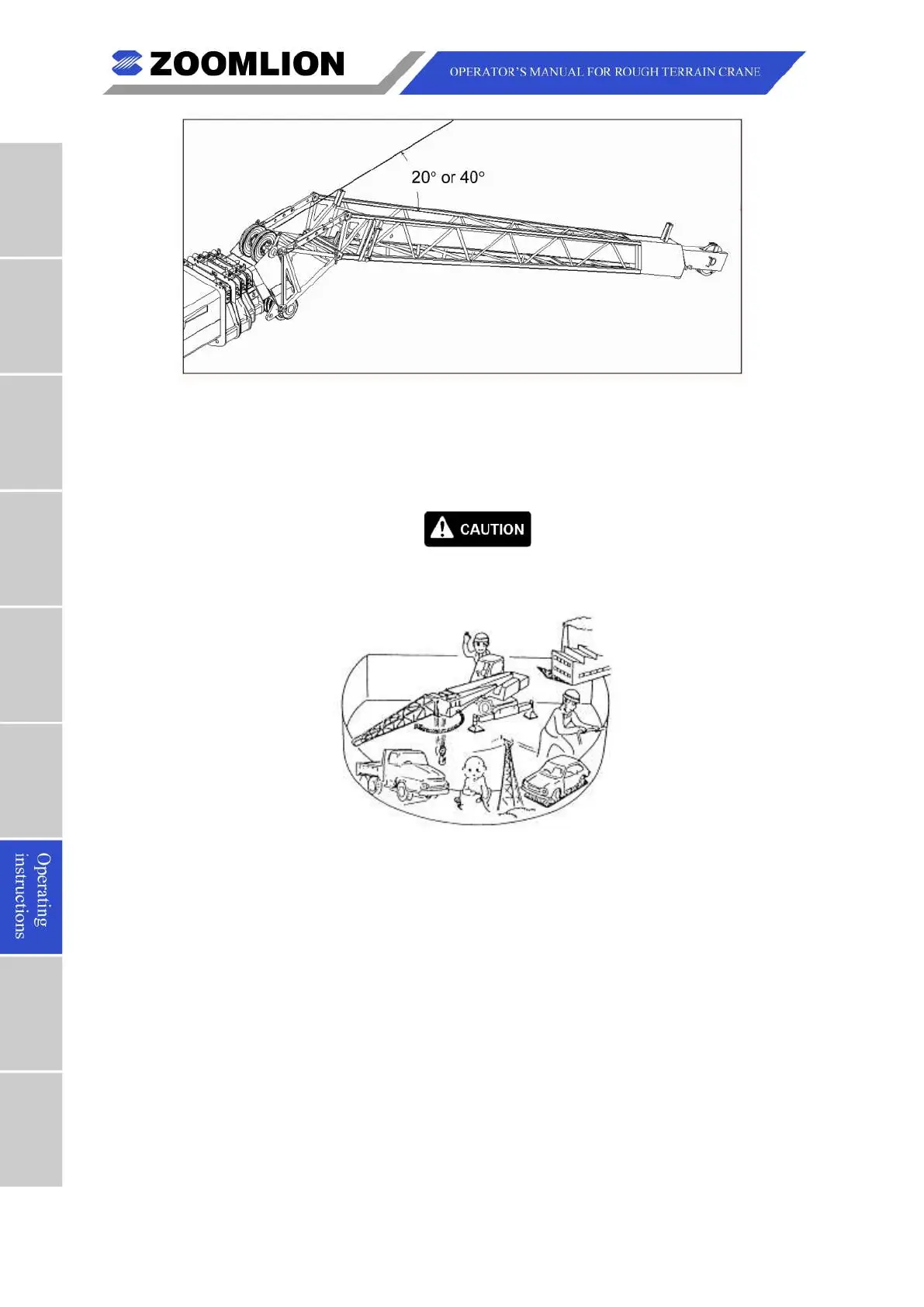

Figure 07 – 49 Offset
F. Disassemble the Jib
After you complete the jib operation, disassemble the jib in reverse order of the
assemble steps.
 Make sure that the area is clear of personnel and equipment before
you move the boom around.
Figure 07 – 50 Hazard Area – Boom Swing

The outriggers must be fully extended before you assemble or
disassemble the jib.

When you install the jib to the side of the boom, you must install all the
pins. Do not move the crane until all the jib pins are in position.

When you use the jib in a lift operation, put the High / Low Speed
Select Switch for Aux. winch in the high or low position.

Fully retract the boom. Move the jib to the front of the crane and set the
boom to the -3° position. You must use the correct work stands
(ladders, stairs, etc.) when you assemble or disassemble the jib.
