RT100 Rough Terrain Crane 07 -
41
E. Change the jib offset from 0° to 20° or 40°. Refer to Figures 07 – 48 and 07 – 49.
(1) Fully retract the boom.
(2) Make sure that the outriggers are fully extended.
(3) Derrick the boom to 0° position.
(4) Reeve the hoist wire-rope through the jib sheave.
(5) Remove the pins and the retaining clips at point A from the pull bracket. Put the pins
and retaining clips at point B for the 20° position or point C for the 40° position.
(6) Pay out the hoist rope and derrick the boom up slowly until the pin at point B or point
C touches pin A.

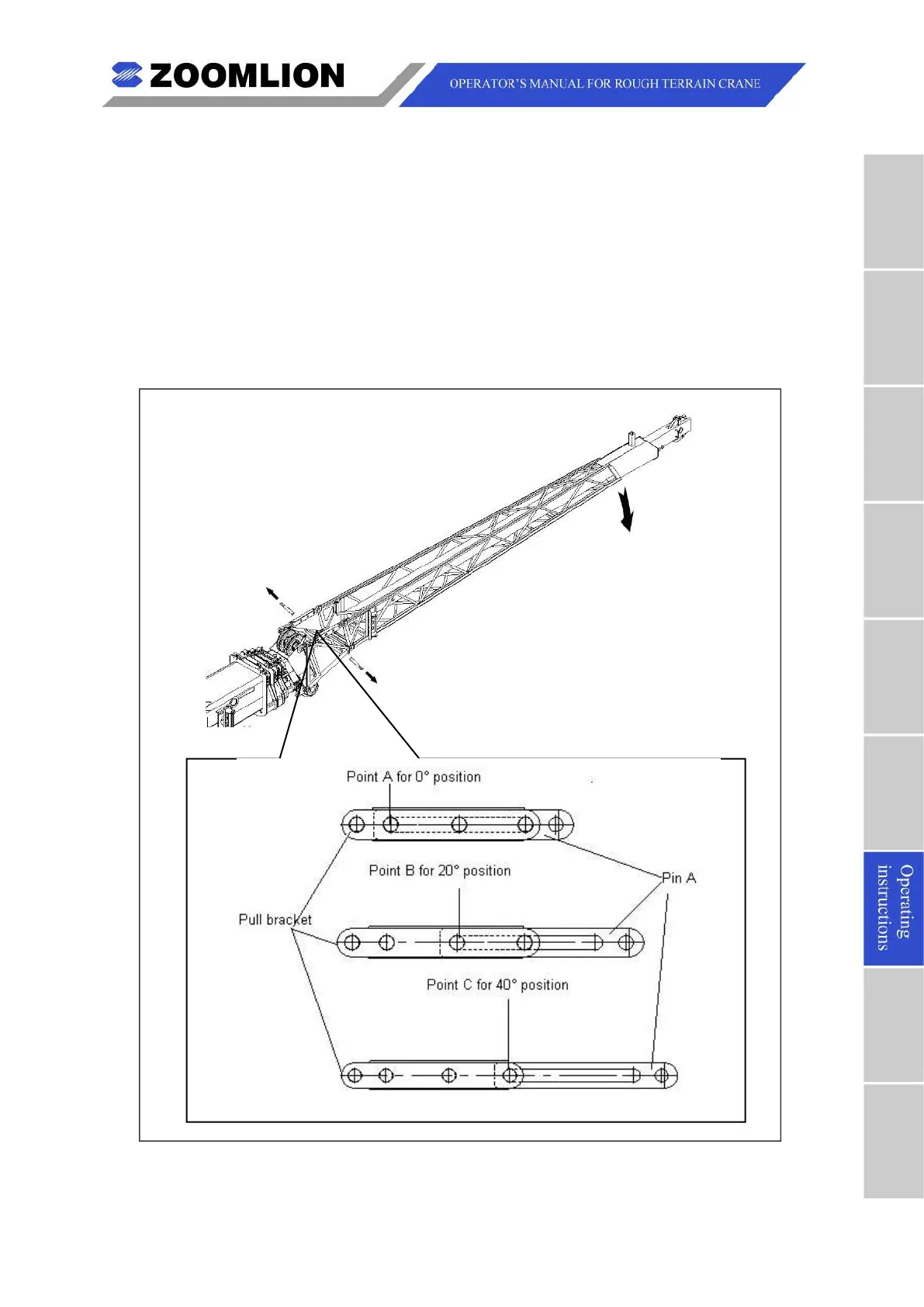

Figure 07 – 48
Figure 07 – 48 Offset Positions
