6.1.1 AIR CONDITIONER CONTROL PANEL
1 2 3 4

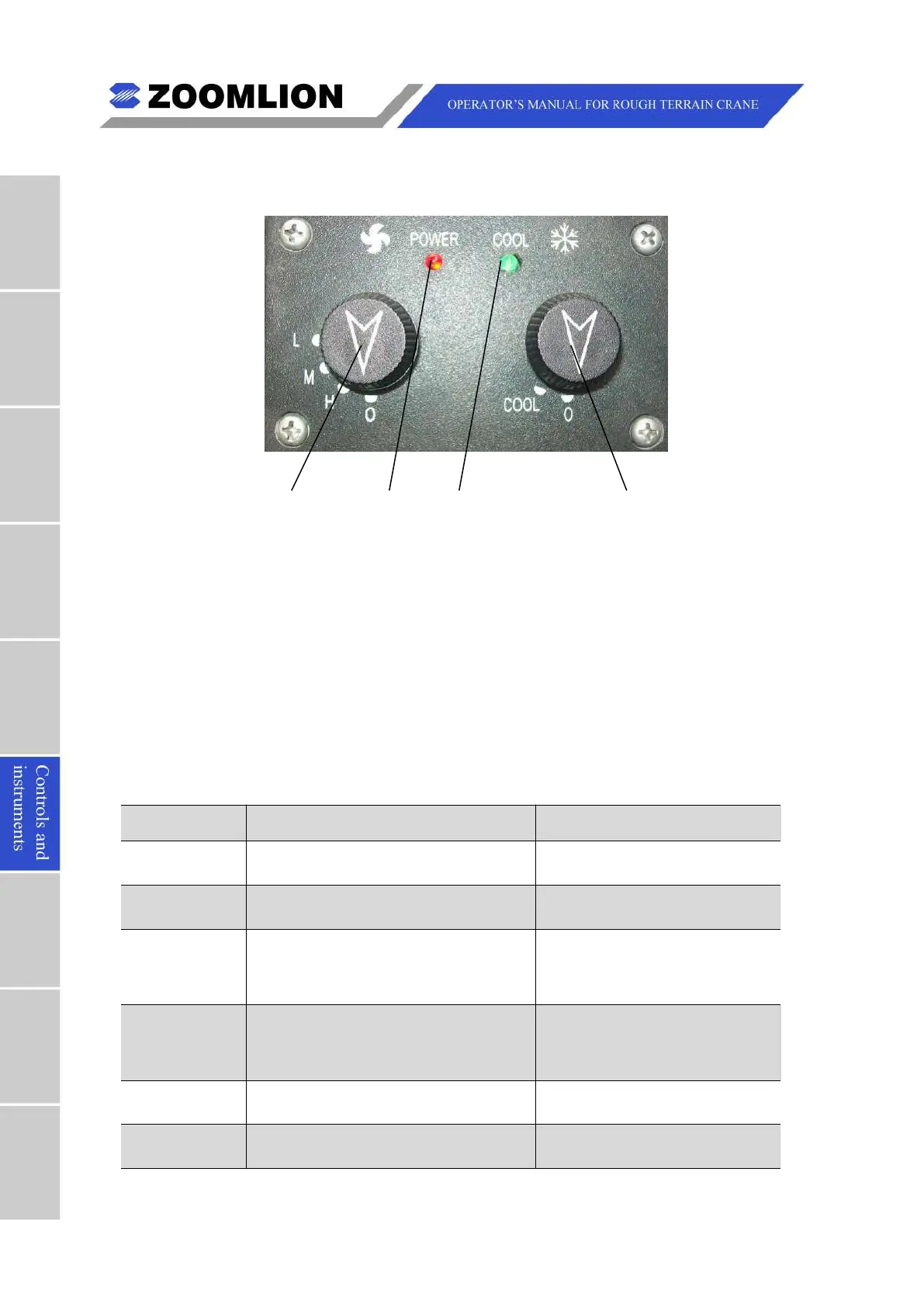

Figure 06 – 4 Air Conditioner Control Panel
FUNCTIONS
1. A/C FAN SPEED / MASTER SWITCH – Used to control the fan blower modes: OFF,
HI, MID, LOW.
2. FAN POWER INDICATOR
3. COOL MODE INDICATOR
4. CAB COOLER POWER SWITCH – Refrigeration ON / OFF. Starts or stops the
function of the compressor.
Table 06 – 1 Air Conditioner Maintenance Requirements
Item Requirements Maintenance interval
Condenser fan
motor
Examine and repair.
Every quarter
Evaporator fan
motor
Examine and repair.
Every quarter
Condenser
Examine and clean.
Every month or increase the
maintenance frequency
according to the working
conditions
Evaporator
Examine and clean.
Every quarter or increase the
maintenance frequency
according to the working
conditions
Electromagnetic
clutch
Make sure that it operates smoothly
and is clean.
Every quarter
Connector
Make sure that the connector is set in
place.
Every month
