06 - 12 RT100 Rough Terrain Crane

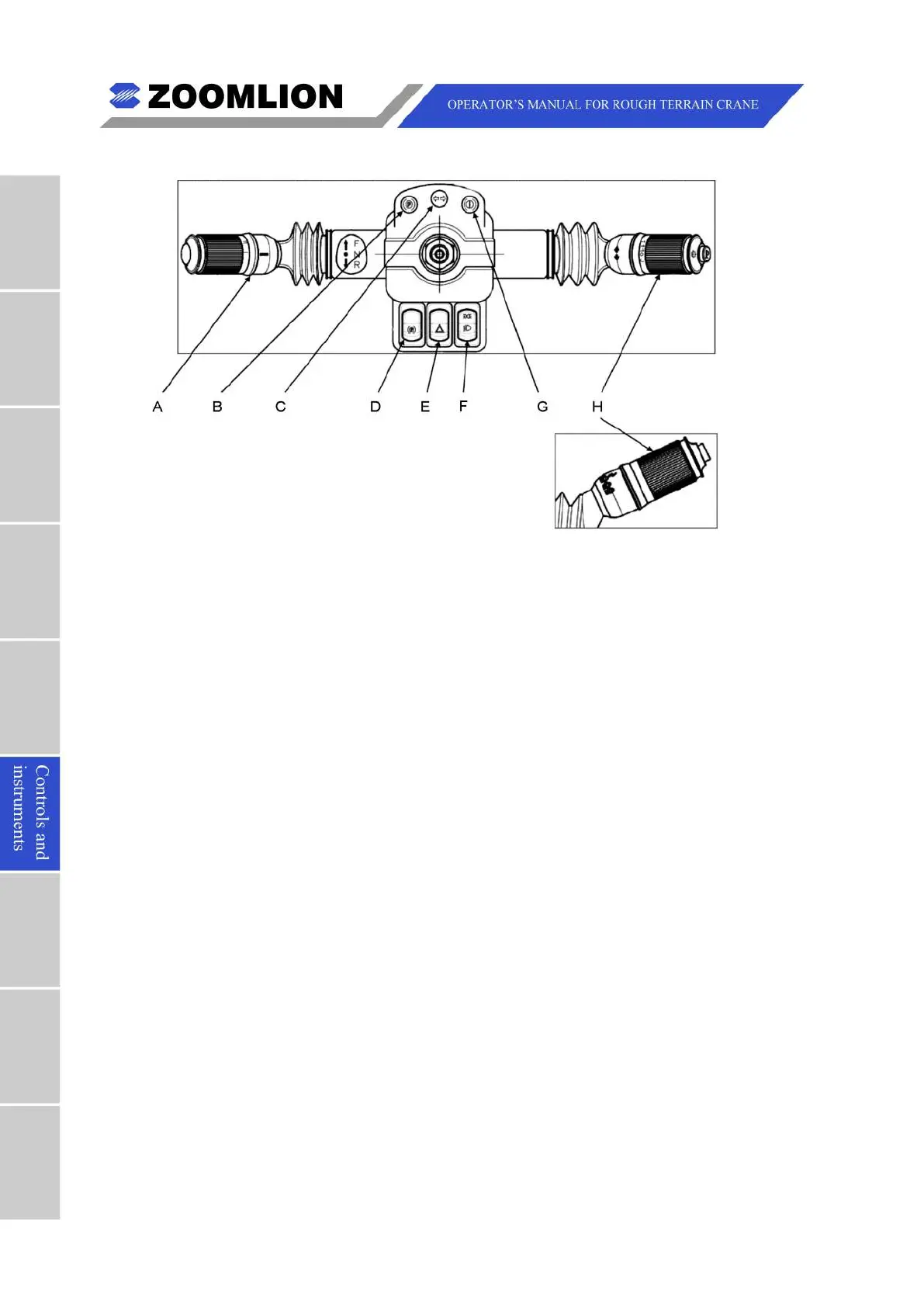

Figure 06 – 9 Combination Switches
A GEAR SELECTOR – Use to control the transmission gear selection. Pull in the
direction of the operator for forward. Push in the direction of the dash for reverse.
Turn the handle to set the speed.
B PARKING BRAKE INDICATOR – Illuminates when the parking brake is applied.
C TURN SIGNAL INDICATOR – Illuminates (blinks) when the left or right turn
D PARKING BRAKE SWITCH – Set the switch to the “P” position when the crane is
in the correct position to operate.
If you park the crane on a slope, you must put the chocks before and behind
E HAZARD LIGHTS SWITCH – Push-in to set the warning hazard lights to ON. The
indicator illuminates (flashes).
F CORNER MARKER LIGHTS / LOW BEAM SWITCH – Push the switch up, to
turn ON the corner marker lights. Push the switch down, illuminate the low beam
G SERVICE BRAKE INDICATOR – Illuminates when the service brake is applied.
H WIPER CONTROL – Windshield wiper operation (4-speed settings: J - Timed
Interval (Intermittent), I - Low Speed, II - High Speed, O - OFF). Push the button,
on the end of the handle, to spray washer fluid onto the window. Pull in the
direction of the operator for high beam. Push in the direction of the dash for low
