06 - 22 RT100 Rough Terrain Crane

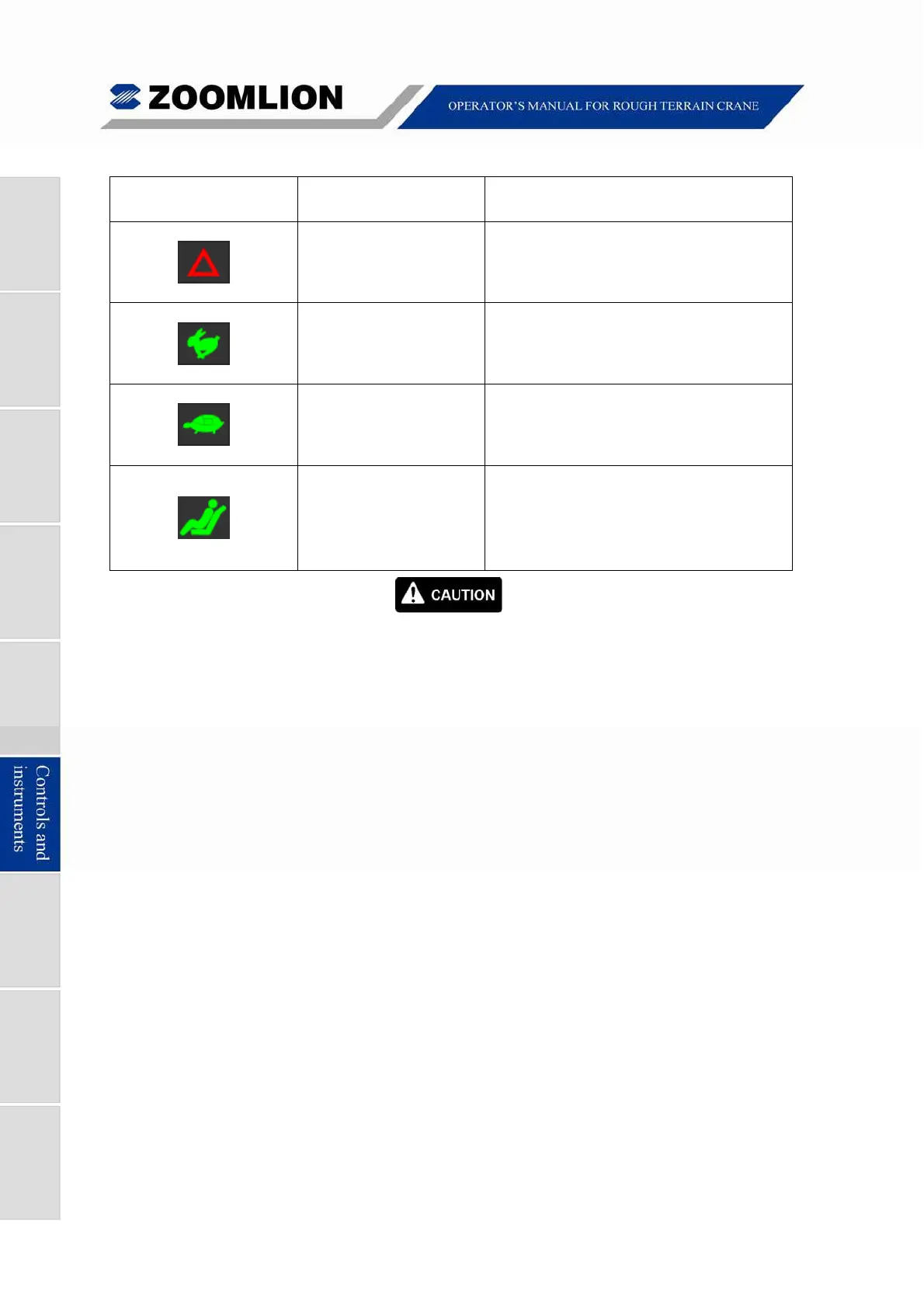

INDICATOR SYMBOL DESCRIPTION FUNCTION
HAZARD LIGHTS
INDICATOR
Illuminates:
Shows that the crane is in operation and
the hazard lights are ON.
HIGH-SPEED
INDICATOR
Illuminates:
Shows that the transmission high-low
speed valve is connected.
LOW-SPEED
INDICATOR
Illuminates:
Shows that the transmission high-low
speed valve is disconnected.
SEAT OCCUPIED
INDICATOR
Illuminates:
Only when the indicator lights up, can
the superstructure movements be
initiated.
When driving the crane, the joysticks and boom extend/retract pedal
remain active. Crane operations can occur if either joysticks or pedal
are used unintentionally.
