07 - 16 RT60 Rough Terrain Crane
c) WORKING RADIUS

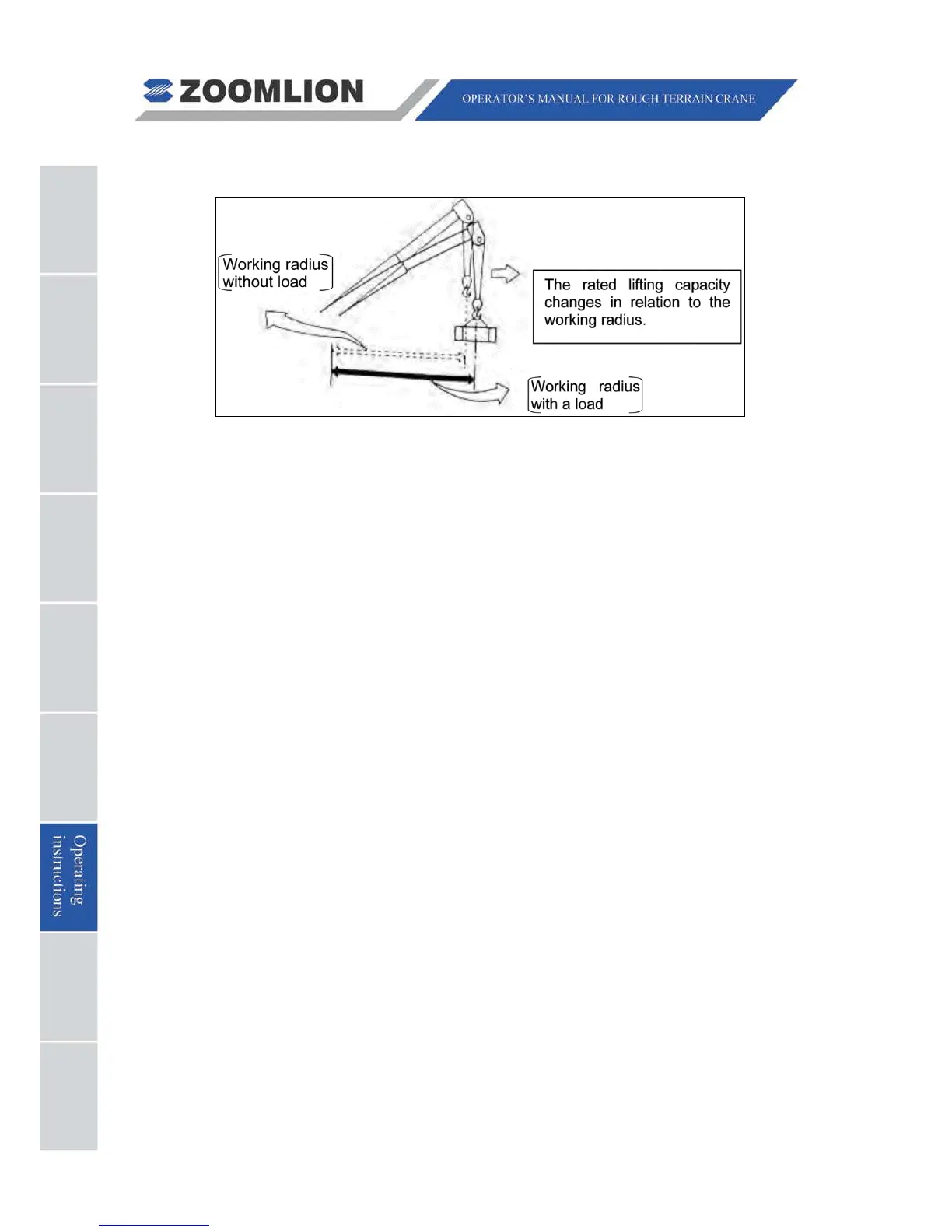

Figure 07 – 8 Working Radius
The balance valve fitted in hoist gear can not only ensure stable hoist movements but
also make the load stop at any required position.
The hoist rope may be not long enough at longer booms and higher lifting heights.
Change line parts to get longer rope. Before changing the line parts, install the
anti-two block counterweight.
