32

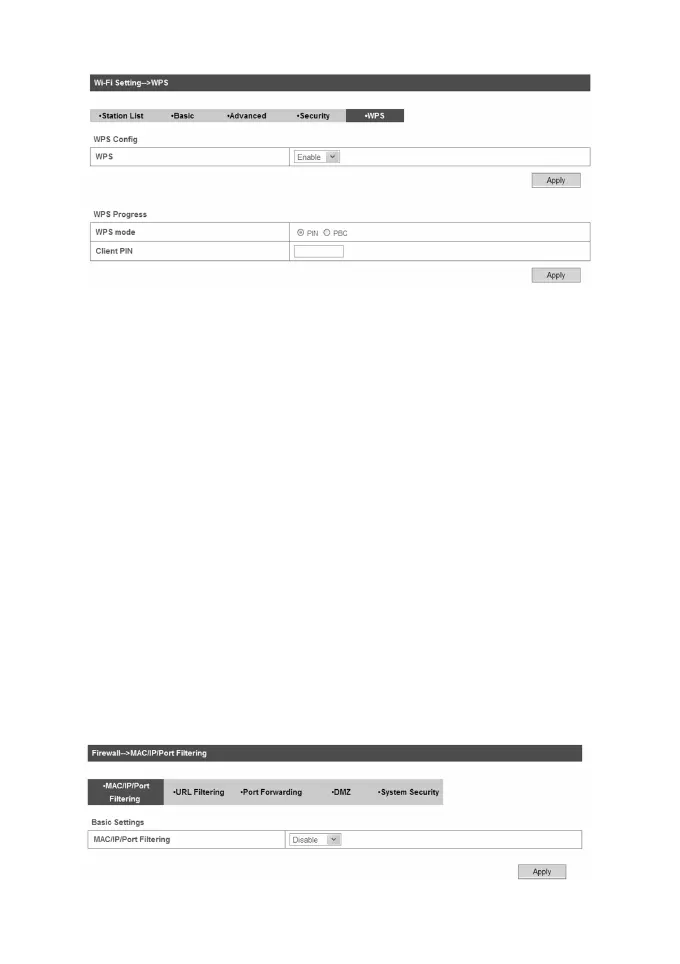

WPS Summary, WPS Progress and WPS Status are all shown in
the gure.
To set WPS, select WPS mode, the two modes are described below:
• PIN: Set the client's PIN code in Client PIN eld.
• PBC: Press the WPS button of the router or select PBC, and
then click Apply. Press WPS button on the client wireless
adapter within two minutes, and the negotiation process will be
established.
Firewall
You may setup firewall rules to protect your network from virus,
worm and malicious activity on the Internet.
Notes: You can set the maximum 10 ltering items for MAC/IP/Port
Filtering, URL Filtering and Port Forwarding.
MAC/IP/Port Filtering
Select Settings > Firewall > MAC/IP/Port Filtering, the MAC/IP/
Port Filtering is shown in the following gure:
