Chapter5ServiceConguration

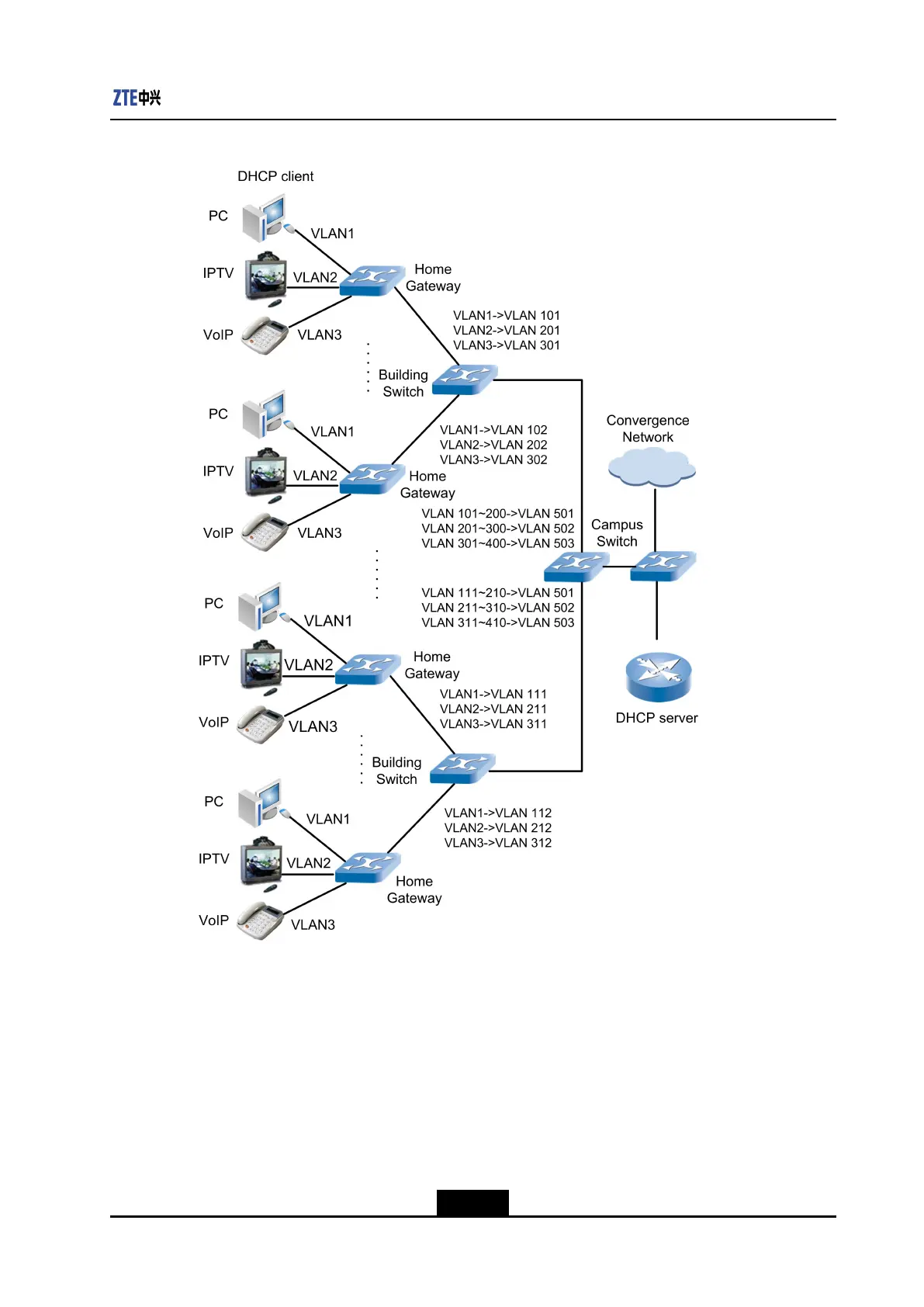

Figure5-28VLANMappingNetworkDiagram
MappingModes:
Uplink:replacetheCVLANwithSVLANbasedon“Interface+customerVLAN”.
Downlink:replacetheSVLANintheoutermostlayerwithCVLANbasedon“SVLAN+
DestinationMACaddress”.
Thewholesystemsupports400sessions,andupto400CVLANscanbesupported.
