Zte ZXR10 5250 Series - Figure 5-42 ZESR Dual-Node Dual-Uplink Configuration Example

ZXR105250SeriesCongurationGuide

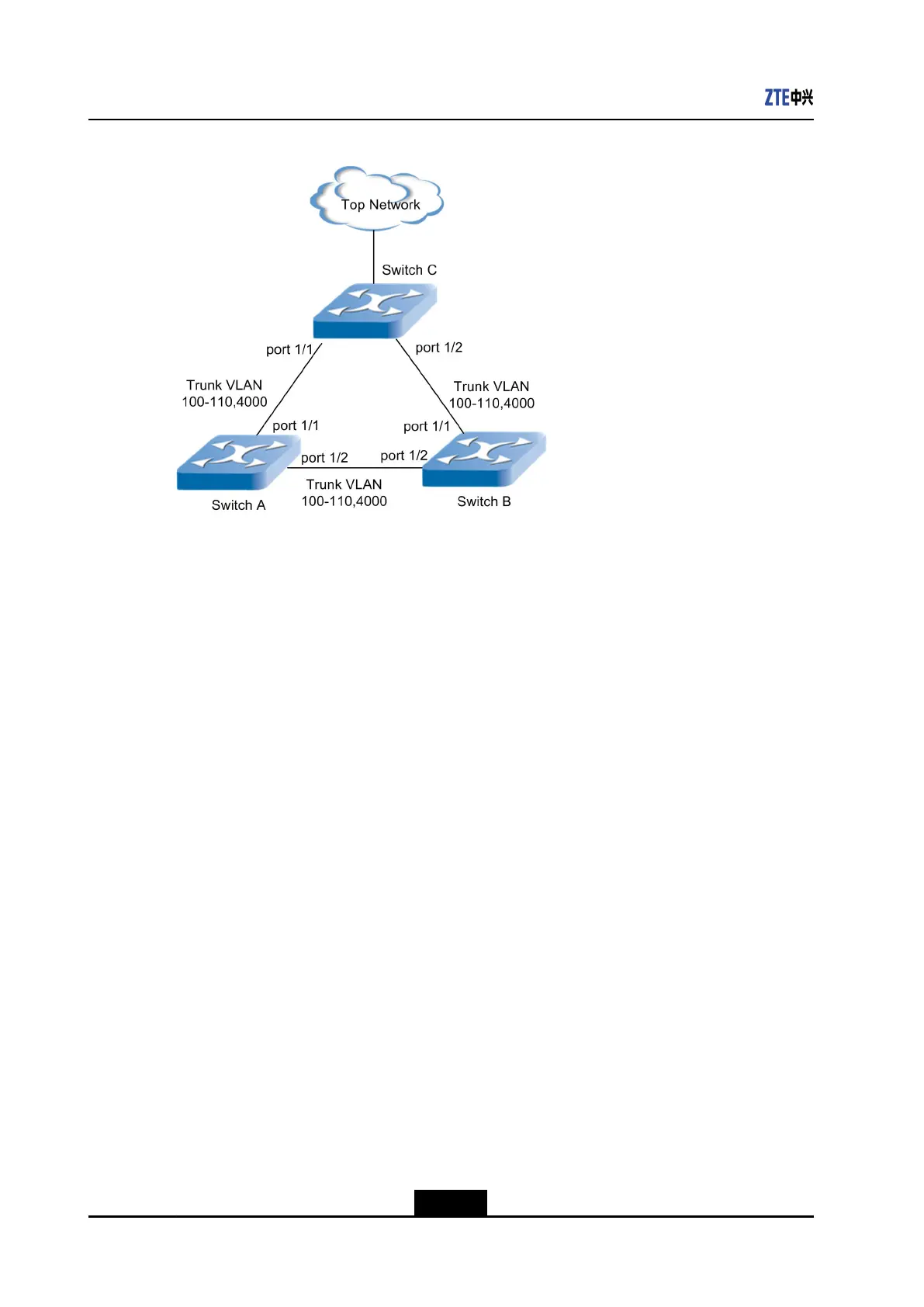

Figure5-42ZESRDual-NodeDual-UplinkCongurationExample
CongurationsonswitchA:
/*Runthefollowingcommandstoconfigurethespanningtreeinstance.*/
Switch_A(config)#setstpenable
Switch_A(config)#setstpforceversionmstp
Switch_A(config)#setstpinstance1addvlan100-110
/*RunthefollowingcommandtoconfiguretheZESRdomainwithVLAN4000
asthecontrolVLANandprotectioninstance1astheprotectioninstance.*/
Switch_A(config)#setzesrctrl-vlan4000protect-instance1
/*RunthefollowingcommandtoconfigureswitchAasthemasternodeofthe
primaryringwithport1/2asitsprimaryportandport1/1asits
secondaryport.*/
Switch_A(config)#setzesrctrl-vlan4000major-levelrolezess-master
primary-port1/2secondary-port1/1
/*RunthefollowingcommandstoenabletheTCNpacketsendingfunction
onport1/1.*/
Switch_A(config)#setzesrtcn-sendingport1/1enable
CongurationsonswitchB:
/*Runthefollowingcommandstoconfigurethespanningtreeinstance.*/
Switch_B(config)#setstpenable
Switch_B(config)#setstpforceversionmstp
Switch_B(config)#setstpinstance1addvlan100-11
/*RunthefollowingcommandtoconfiguretheZESRdomainwithVLAN4000
asthecontrolVLANandprotectioninstance1astheprotectioninstance.*/
