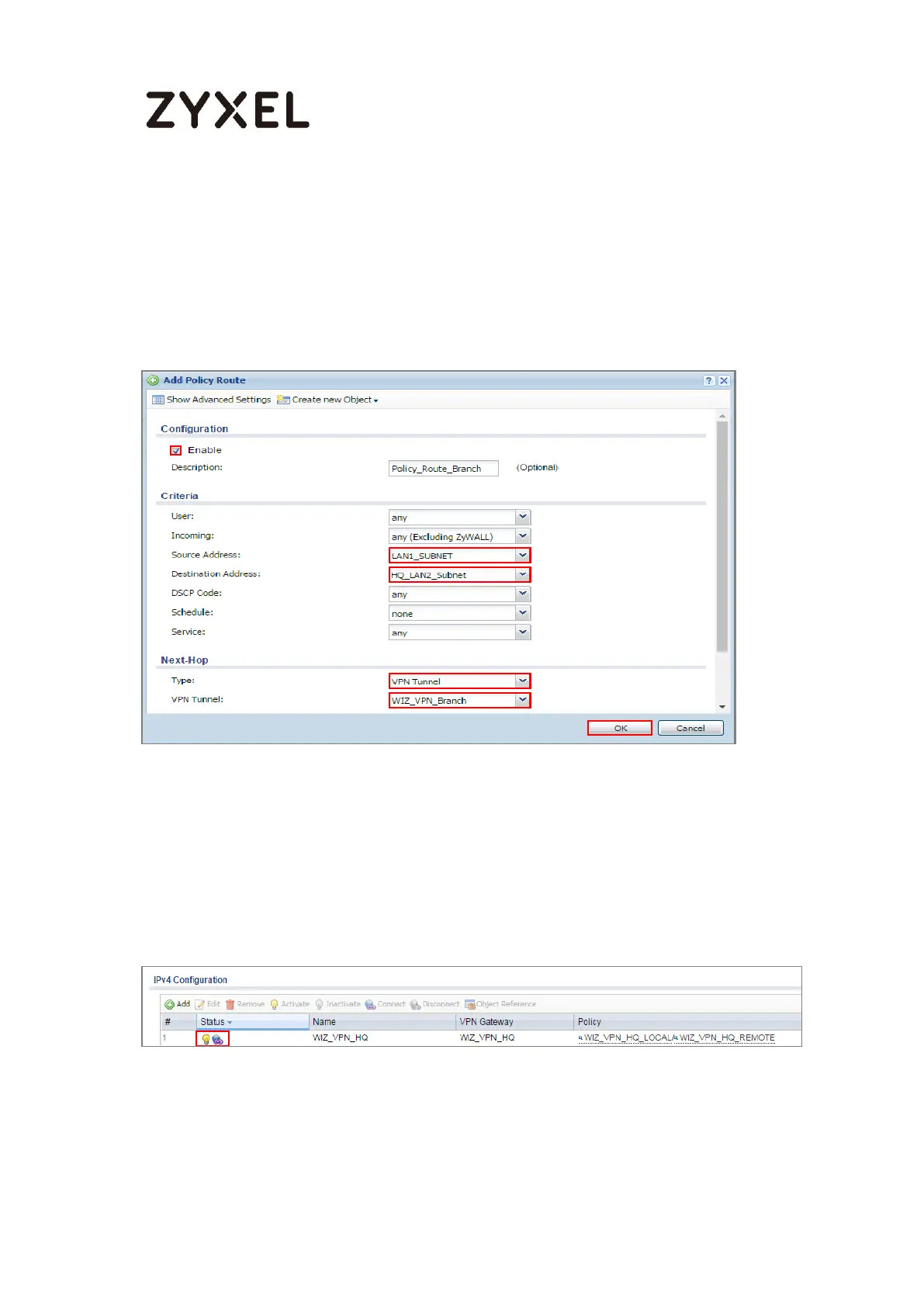

Go to ZyWALL/USG_Branch CONFIGURATION > Network > Routing > Add. Set

Source Address to be the local subnet (192.168.10.0/24 in this example). Set

Destination Address to be the remote LAN subnet (192.168.2.0/24 in this example)

allows joining the VPN tunnel.

CONFIGURATION > Network > Routing > Add

Test the IPSec VPN Tunnel

Go to ZYWALL/USG CONFIGURATION > VPN > IPSec VPN > VPN Connection, click

Connect on the upper bar. The Status connect icon is lit when the interface is

connected.

CONFIGURATION > VPN > IPSec VPN > VPN Connection

Go to ZyWALL/USG MONITOR > VPN Monitor > IPSec and verify the tunnel Up

Time and Inbound(Bytes)/Outbound(Bytes) Traffic.

MONITOR > VPN Monitor > IPSec
