Pin Number Signal Description Pin out
1
Input DI_1
2
Input DI_2
3
Input DI_3
4
Input DI_4
5
Input DI_5
6
Output DO_3
7
GND
8 GND
9 +10V Standby
10 +10V Standby

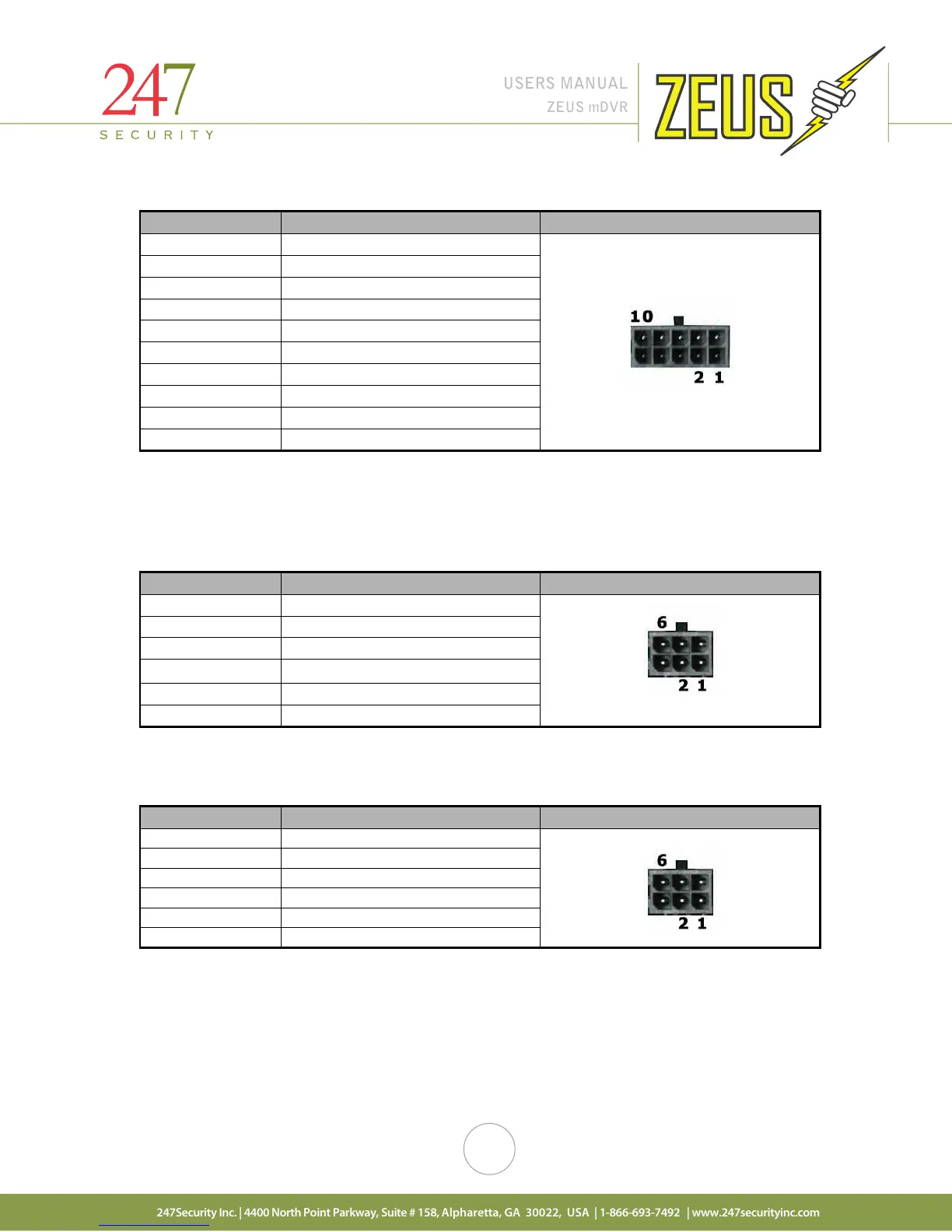

2.1.7 GENERAL PURPOSE INPUT / OUTPUT CONNECTOR #2
This connector provides 3 digital inputs. The digital inputs are labeled as DI_6, DI_7, DI_8. End-users
can assign any sensors to one of these digital input signals, up to 3 sensors can be wired to this connector. This
connector also provides +12VDC OUT on pin 4 with a built-in 0.75A fuse.
Pin Number
Signal Description
Pin out
1
Input DI_6
2
Input DI_7
3
Input DI_8
4 +12VDC OUT
5
Not connected
6
GND
2.1.8 EVENT MARKER CONNECTOR
This connector is used to plug in the included event marker cable.
Pin Number
Signal Description
Pin out
1 DI_0
2
GND
3 +12V OUT
4
Output DO_0
5 Output DO_1
6
Output DO_2
