ZEUS mDVR
USERS MANUAL
7
+6 VDC ~ +28 VDC abnormal operating voltage up to 10 seconds
Over and under voltage protection
Ignition Signal / Power Down Timer
Software configurable delay power off signal from 1- 14400 seconds (4 hours)
50mA current draw in sleep mode after power down
Power Consumption
Typical 10W (5°C ~ 55°C)
DVR draws less than 24ma when off
ENVIRONMENT
Temperature Range
-30°C to +55°C (-22°F to +131°F) operating temperature
Relative Humidity
10% to 90% non-condensing
1.3 CONNECTORS & LED LOCATIONS

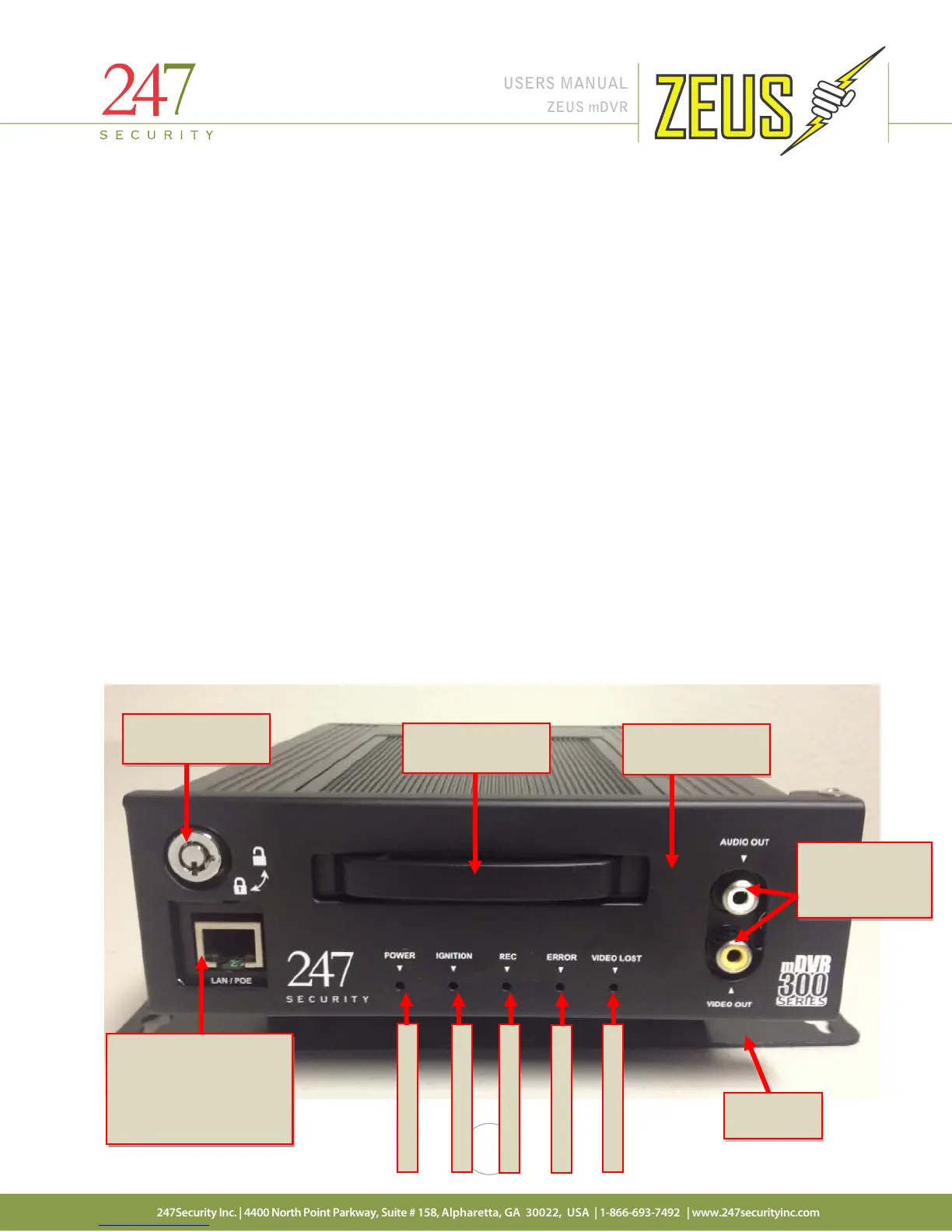

1.3.1 FRONT PANEL
With Door Closed
320 Gigabytes
Removable HDD
Key lock,
Secure HDD
Protection
Door
Video/Audio
output
Connect to
monitor
Video Lost LED
Error LED
Recording LED
Ignition LED
Power On LED
Mounting
Place
10/100Base-T
Network / Protocol
Over Ethernet.
(Works as POE when
Protection Door
closed)
10/100Base-T
Network / Power
over Ethernet.
(Works as POE when
Protection Door
closed)
