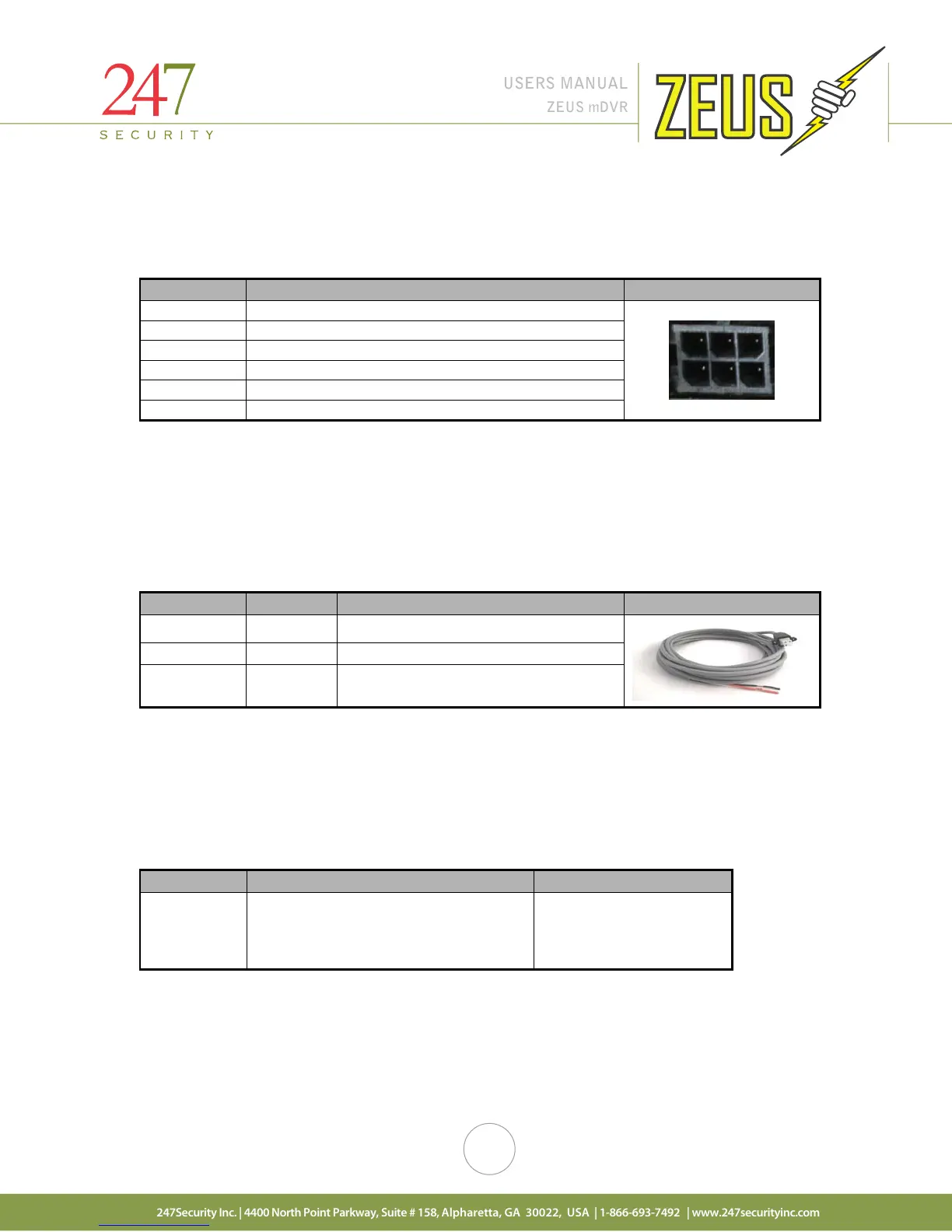

ZEUS mDVR
USERS MANUAL
13
2.1.9 GPS CONNECTOR
This connector on the back of the DVR is used to plug in the included GPS cable and allow the ZEUS DVR
to collect GPS data with the inside dash mount GPS antenna.
Pin Number Signal Description Pin out
1
N/A
2 RxD
3
TxD
4 N/A
5
GND
6 +12V OUT
2.2 CABLE REQUIREMENTS
2.2.1 POWER CABLE
The 15ft three wire power cable is included for connection between the DVR and your vehicle power
and ignition signals. It is highly recommended that in-line fast blow fuses (7.5 amps) be installed on the two
power input connections for safety pre-cautions.
Wire Color
Signal
Description
Red VIN Input voltage (8~24VDC)
Black
GND
Ground
White ON/OFF
Ignition switched power (only hot
when ignition is in RUN/ACC
2.2.2 EVENT MARKER CABLE
A 15 ft cable is already connected to the Event Marker and pre-wired to a 2X3 Molex connector; the
Molex connector will then connect to the event marker port on the back of the DVR. The event marker uses 3
digital outputs for Video Lost, Recording & Power LED’s and 1 digital input for the push button. The push
button is used for pre/post trigger recording which when pressed, marks the video files at that specific
moment. Pre-event and Post-event time locking can be configured in the DVR setup.
Connector
Description
6-Pin
Molex
Connects to Event Marker connector
on DVR
