PROJET 2500 PRINTER SYSTEM
A
B
C
E
D

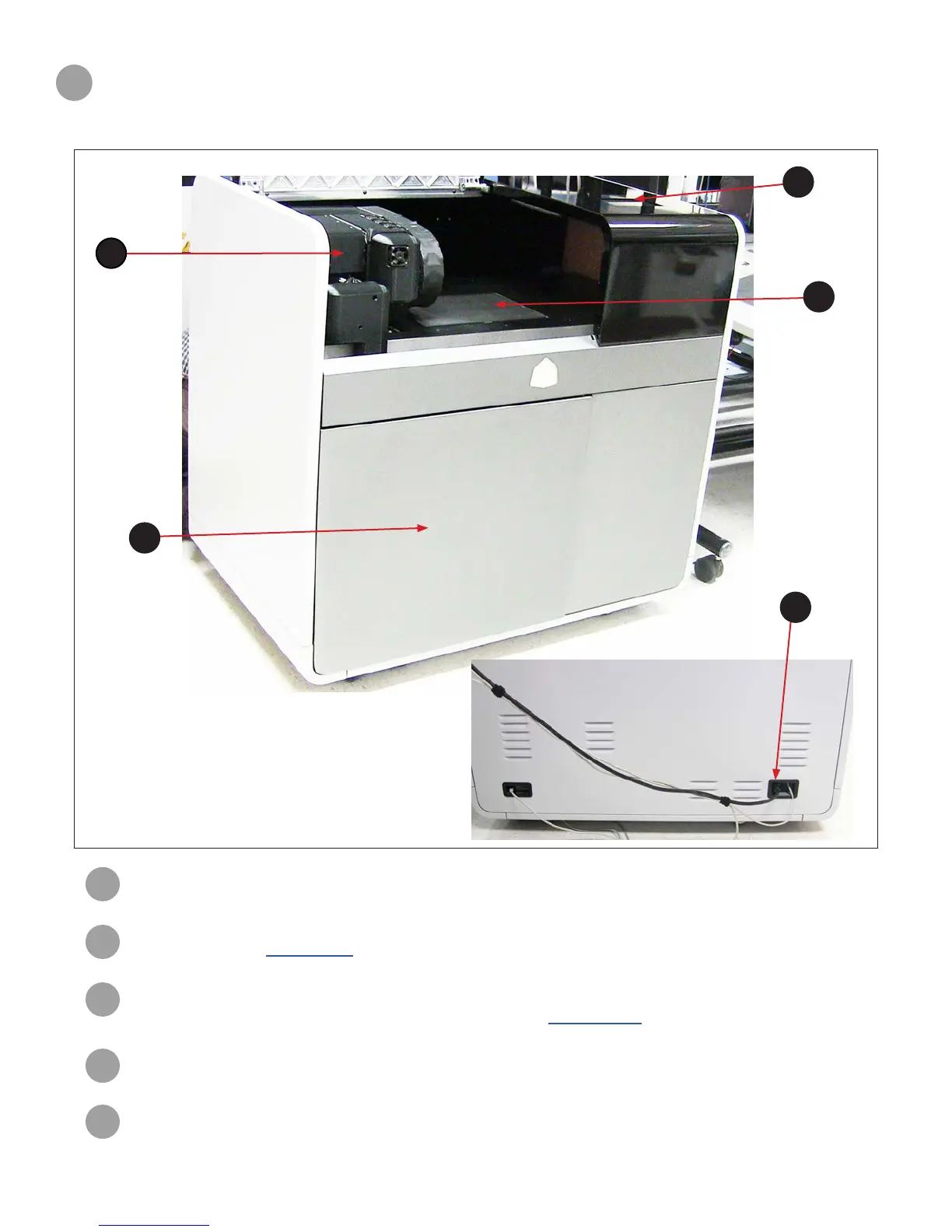

Print Engine : The Print Engine contains major systems such as the Printhead, Planarizer, UV Lamp Assembly, Wave Amp
and the IGUS Track.
Print Zone: Print Zone is the area where the print platform can be found. All print jobs are built on the print platform. For
more information see Printing Area next page.
User Interface (UI): This is the built-in touchscreen which allows the user to interface with the printer. The touchscreen
runs the Mycroft software that allows user to check printing status, material levels, as well as power printer on and off. For
more information on what user can access through the UI go to the User Interface section of this manual.
Electrical Cabinet (located in back of printer): The electrical cabinet contains all the electrical equipment for the ProJet
2500. The cabinet can be accessed through the back of the printer.
Material Drawer Module (MDM): The MDM drawer is a push/push type mechanism. To open the drawer push in, drawer
should pop open allowing you to pull it open the rest of the way. The MDM contains the part and support materials and the
waste bag.
A
B
C
D
E
