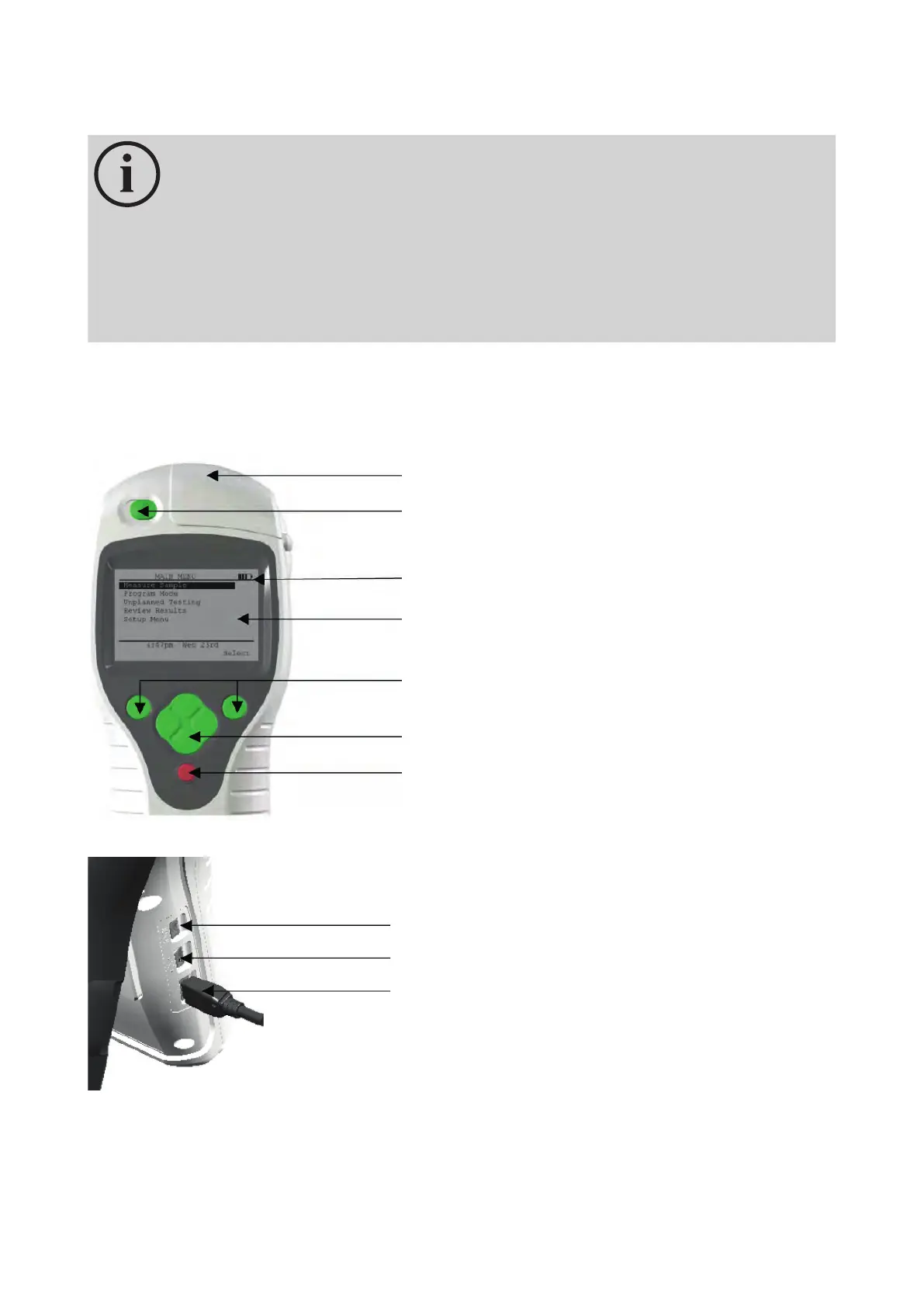

Chamber cap
Cap release
Battery level indicator
Display screen
Navigation buttons
Cursor control
On/Off switch
RS 232 to PC (not functional on NGi Luminometer)
USB to PC
Power from Charger
2.0 INSTRUMENT OVERVIEW
2.01 Parts of the 3M™ Clean-Trace™ NGi Luminometer
2.02 General Features
2.03 Charging the Battery
2.04 Switching the Instrument ON
2.05 Measurement Modes
2.06 Inserting a Test
2.07 Swab Sensor
2.08 Low Power Mode
2.09 PC Communications
2.01 Parts of the 3M™ Clean-Trace™ NGi Luminometer
The purpose of each of the Function Buttons can change according to the menu screen being displayed. Once a
menu is selected the button functions will be displayed at the bottom of the screen directly above each button.
Figure 1
Figure 2
2.02 General Features
The 3M™ Clean-Trace™ NGi Luminometer is a light-weight, fully portable instrument with alphanumeric LCD
display. The instrument is for use in production areas, healthcare settings and laboratories and can be supplied
with a carrying pouch. A separate internal Lithium Battery is used to retain information in the instruments memory,
with regard to sample plans, test points, data and calibration setting.
