N5071 Speed Dome Network Camera H.264 / D1 Real-Time
- 74 -

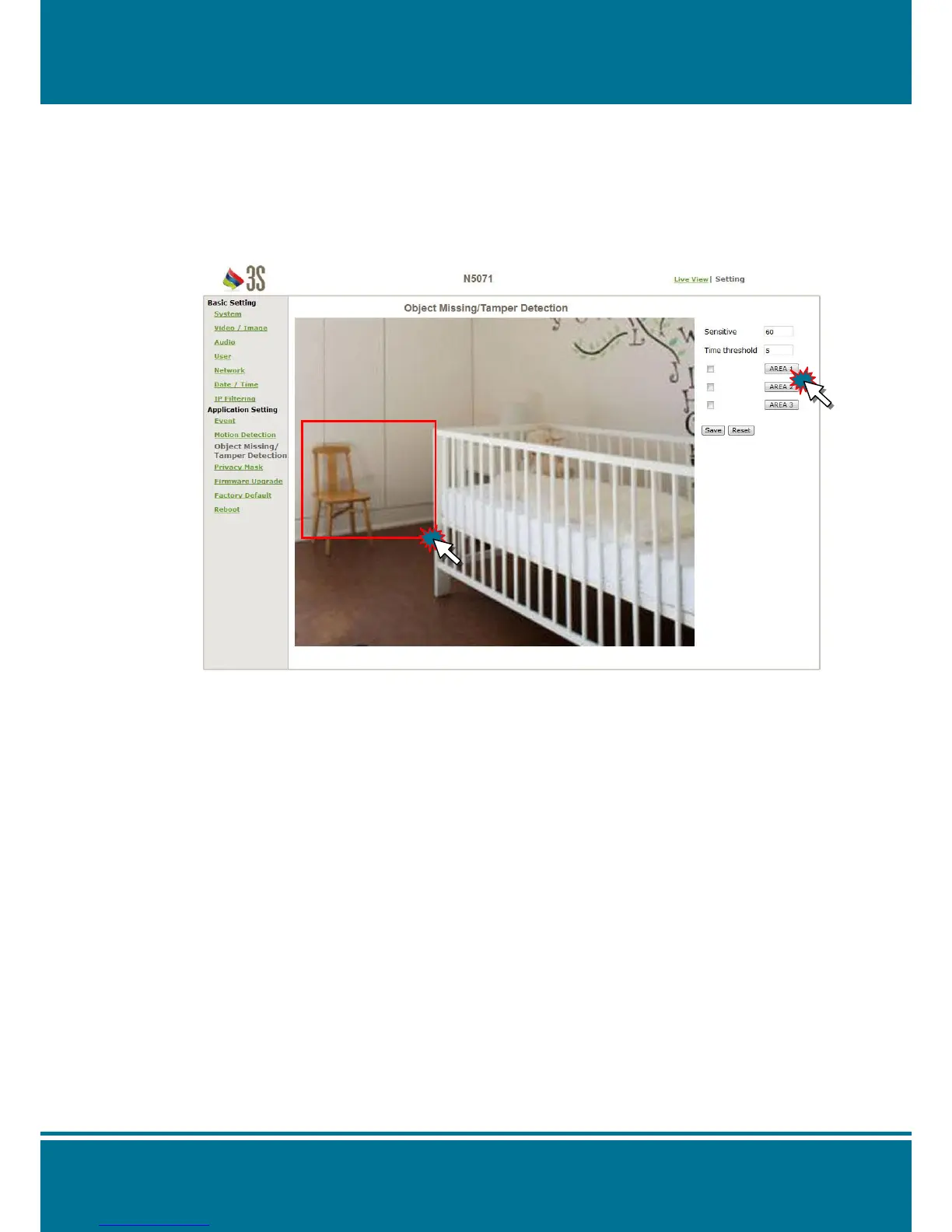

Blind Detection
Blind Detection means that you can set the inside/outside area for detect.
Blind Detection triggered if any object activity in the area that you have set.
Click the Area to open the setting frame and the setting frame will show on your screen.
You can adjust the frame size by move and drag the edge of the frame on the arrow of
your mouse, after adjusted click the left button of your mouse.
Area:
There are 3 frames available for setting: Area 1, Area 2 and Area 3.
Click Area to open the detectable area then click the signal checkbox to enable the
function.
Sensitive:
Adjust the Sensitive of the area by entering the degrees in the field of Sensitive.
The setting range is 0~100. 0 is the least sensitive and 100 is extremely sensitivie.
Time threshold:
Adjust the stay time to detect the object in the area.
The setting range is 0~100 seconds.
