Aprisa SRx User Manual 1.3.0
USB RS-232 Cabling Options
The following converter cables are available as Aprisa SR accessories to provide the customer interface.
The kit contains a USB connector retention clip (see ‘USB Retention Clip’ on page 290).

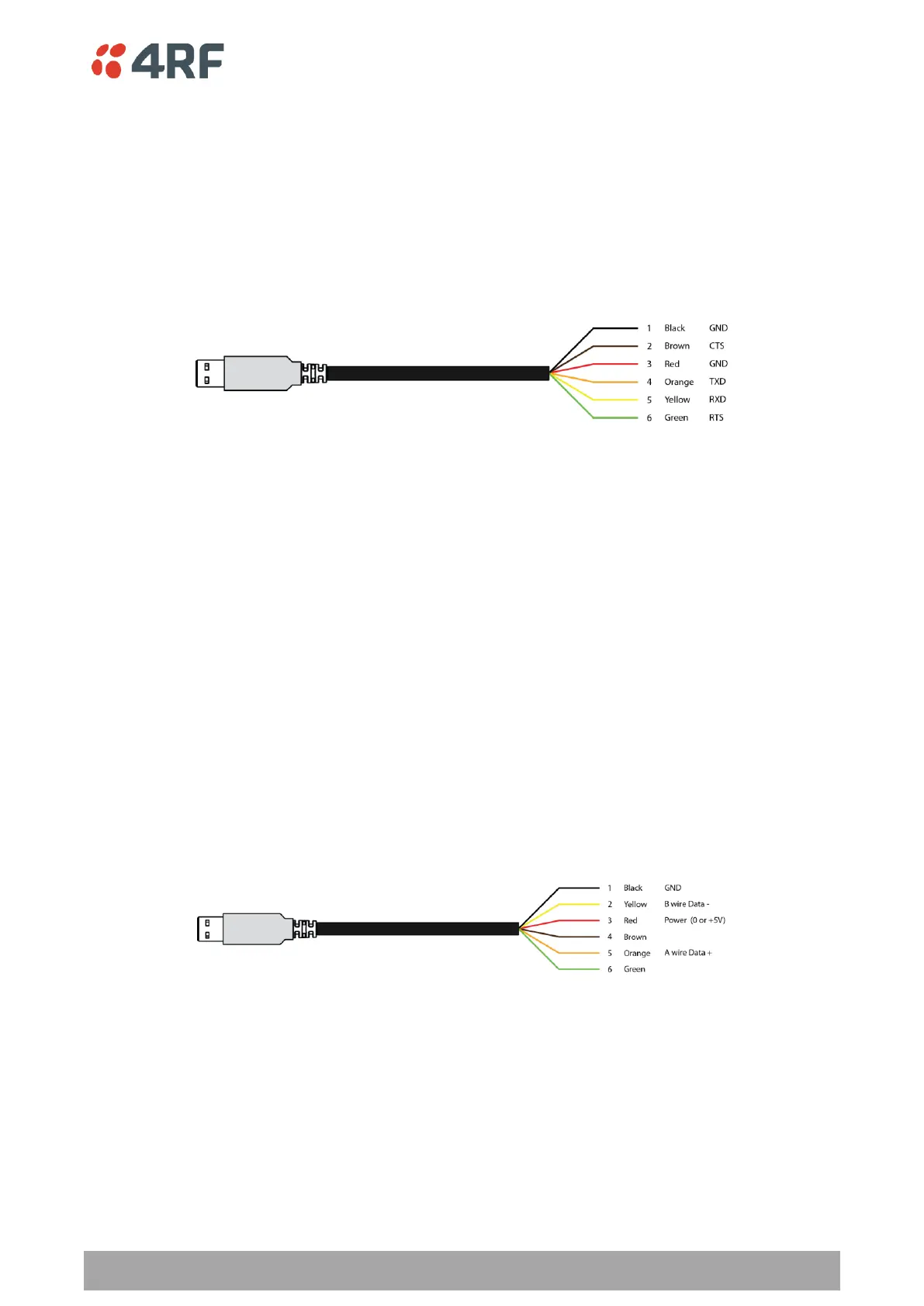

1. USB Converter to 1.8 metre multi-strand cable 6 wire for termination of customer connector
4RF SR+ Acc, Kit, Interface, USB Conv, RS-232, Multi-strand, 1.8m
2. USB converter to RJ45 female kit for USB to RS-232 DCE conversion.
4RF SR+ Acc, Kit, Interface, USB Conv, RS-232, RJ45, Female, 1.8m
3. USB converter to DB9 female kit for USB to RS-232 DCE conversion.
4RF SR+ Acc, Kit, Interface, USB Conv, RS-232, DB9, Female, 1.8m
USB RS-485 Cabling Options
The following converter cable is available as an Aprisa SR accessory to provide the customer interface RS-
485 2 wire. The kit contains a USB connector retention clip (see ‘USB Retention Clip’ on page 290).
1. USB Converter to 1.8 metre multi-strand cable 6 wire for termination of customer interface
4RF SR+ Acc, Kit, Interface, USB Conv, RS-485, Multi-strand, 1.8m
