AAON VCCX-454 - BD-3 PI Third Party Interface Module; Figure 4: BD-3 PI Third Party Interface Dimensions

15VCCX-454 Controller Technical Guide
DIMENSIONS
BD-3PI Third Party Interface Module
2019WXX
Input:
24VAC Class 2
Max. Amb. Temp:
60 C
o
ASM07771
4.0
4.5
Note: All Dimensions are in inches.

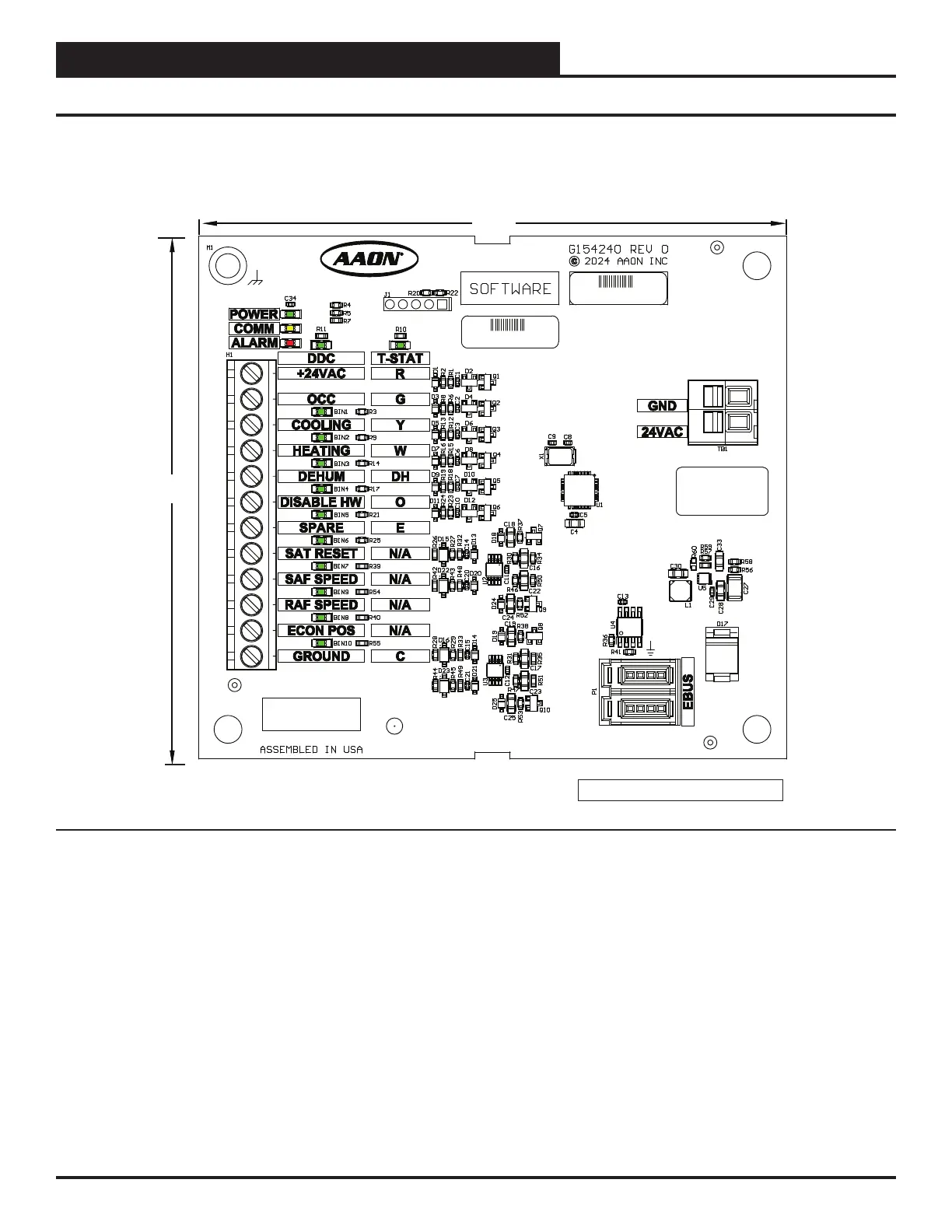

Figure 4: BD-3PI Third Party Interface Dimensions
