ABB 4690 - Installing the Optional De-bubbler

4690 Series
Turbidity systems 3Installation
10 IM/4690–EN Rev. A
3.4 Installing the Optional De-bubbler
3.4.1 Mounting the De-bubbler
Note. The de-bubbler MUST be mounted vertically with the
flow upwards.
Dimensions in mm (in)

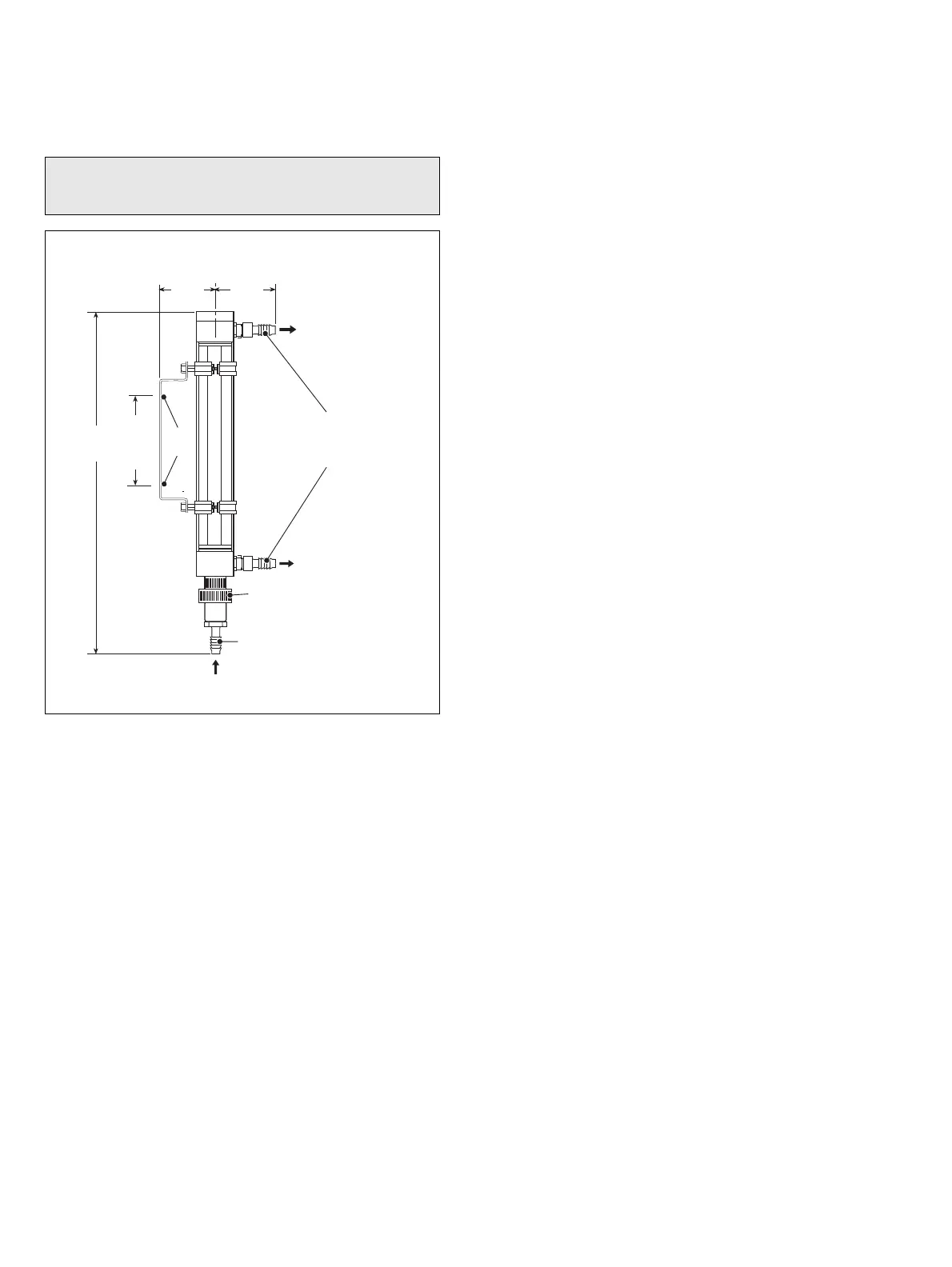

Fig. 3.11 De-Bubbler Mounting Information
(Debubbler Part Number 7997 500)
88
(3.5)
Ø 6.5
(0.25)
540
(21.3)
91
(3.6)
Disconnect Fittings – 12 (0.5) i.d.
Tube (rotatable through 360°)
Removable Fitting
12 (0.5) Internal
Diameter Tubing
150
(5.9)
CRS
Drain Outlet
Sample Outlet
Sample Inlet
