ABB 4690 - Panel-Mounting

4690 Series
Turbidity systems 3Installation
IM/4690–EN Rev. A 7

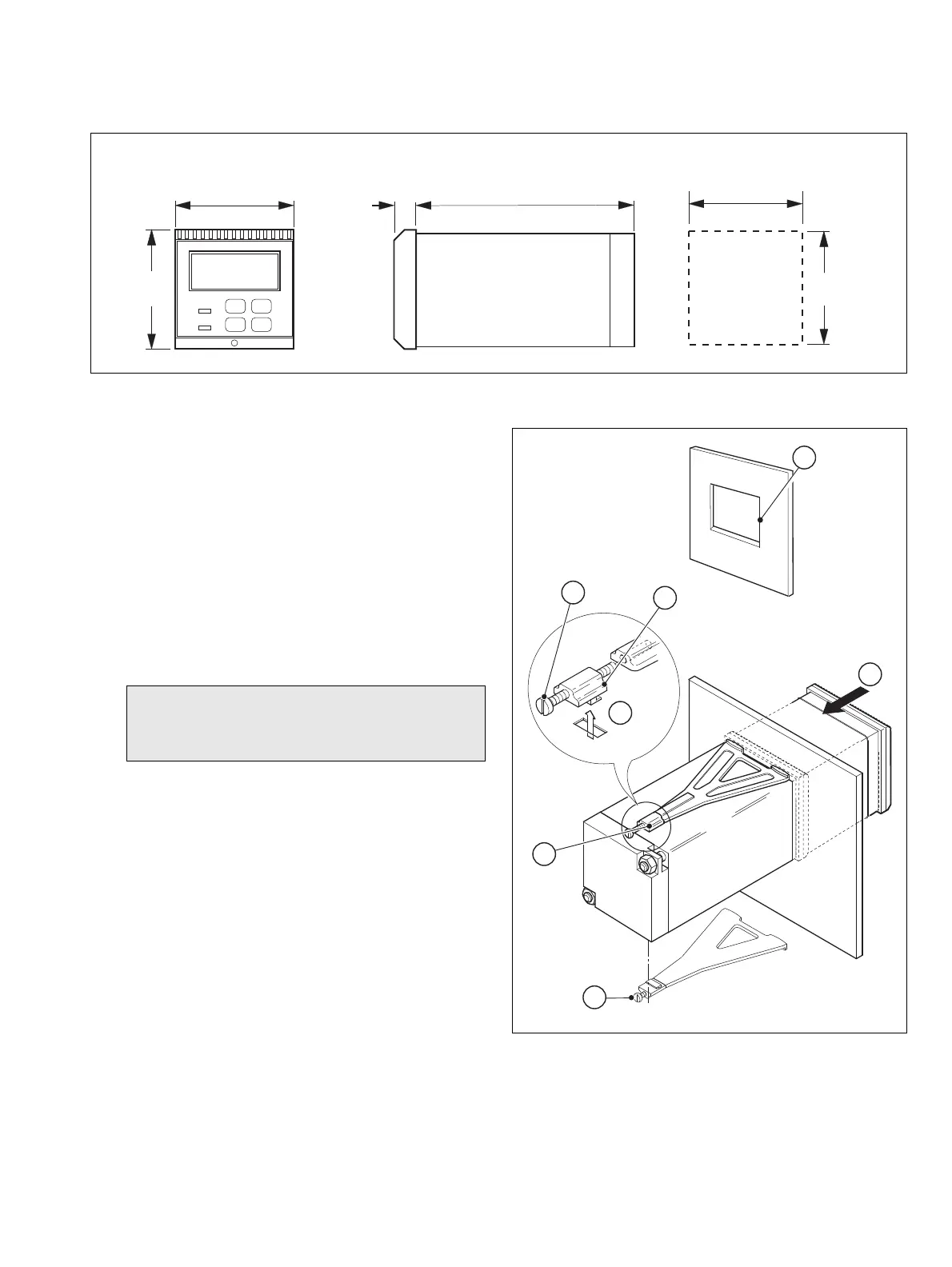

3.2.3 Panel-mounting
Referring to Fig. 3.5:
a Cut a hole in the panel (see Fig. 3.6 for dimensions).
Analyzers may be close stacked to DIN 43835.
b Loosen the retaining screw on each panel clamp.
c Remove the panel clamp and anchors from the analyzer
case.
d Insert the analyzer into the panel cut-out.
e Refit the panel clamps to the case, ensuring that the panel
clamp anchors are located correctly in their slot.
f Secure the analyzer by tightening the panel clamp
retaining screws.
Dimensions in mm (in.)
Fig. 3.6 Overall Dimensions
+0.8
0
92 (3.62 )
+0.03
0
+0.8
0
92
(3.62 )
+0.03
0
191 (7.52)
12 (0.47)
96 (3.78)
96
(3.78)
Panel Cut-out
Caution. The clamp must fit flat on the analyzer
casing. If the clamp is bowed, the securing screw is
overtight and sealing problems may occur.
Fig. 3.7 Panel-mounting
1
3
4
6
5
3
2
