Section 2 Installation Installing SM810/TP855

3BSE036351-510 A 105

Connection of Input Signals to SM810

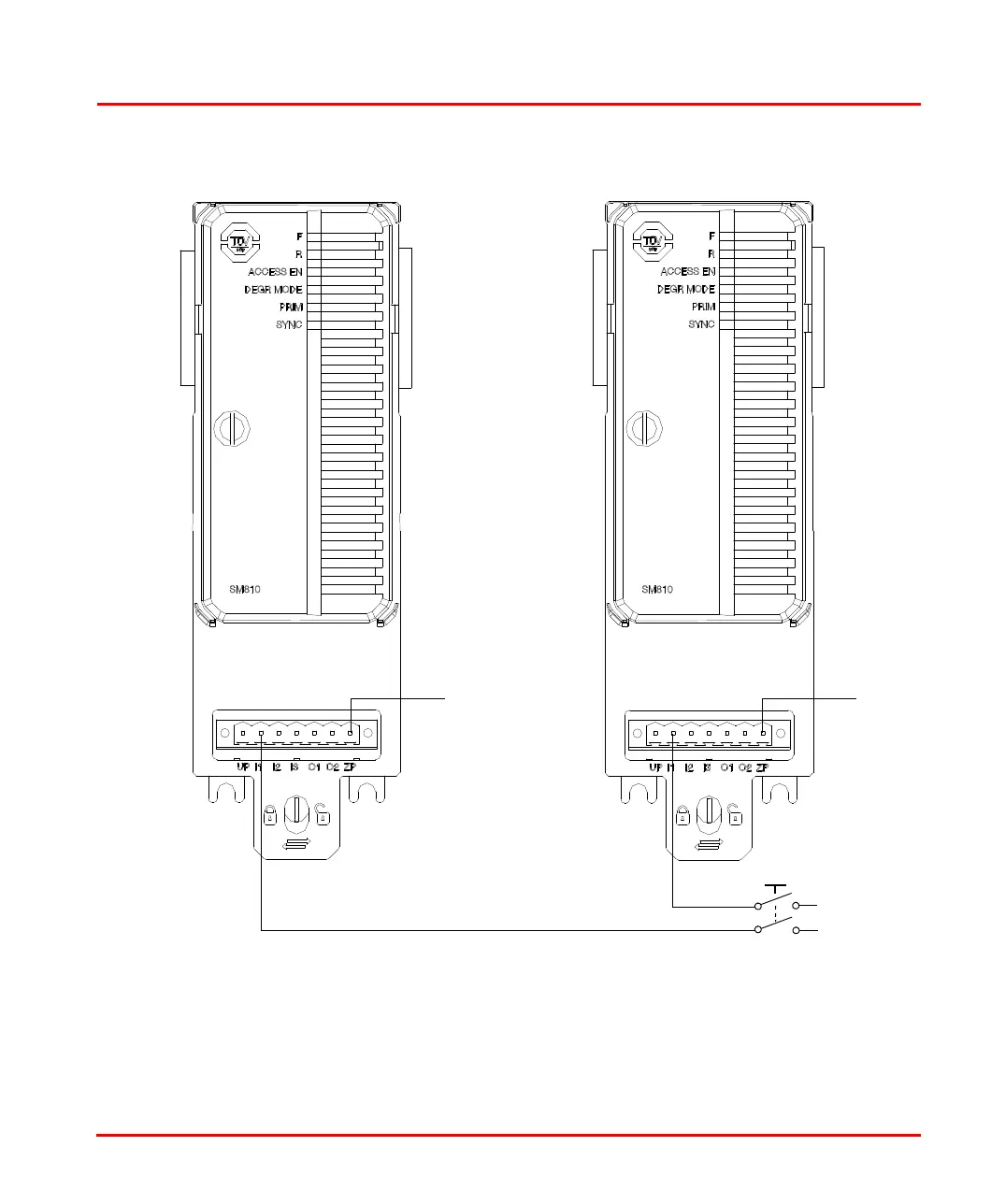

Figure 35. Connection of input signals to redundant SM810.

0V A0V B

24V A

24V B

I1: Reset all forces

I2: Access enable
