Section 3 Configuration Connection to a Control Network
3BSE036351-510 A 153
Connection to a Control Network
Control Network is a private IP network domain for both real time data and general
system communication between industrial computers. It is scalable, from a very
small network with a few nodes, to a large network containing a number of
“Network Areas” and many hundreds of nodes.

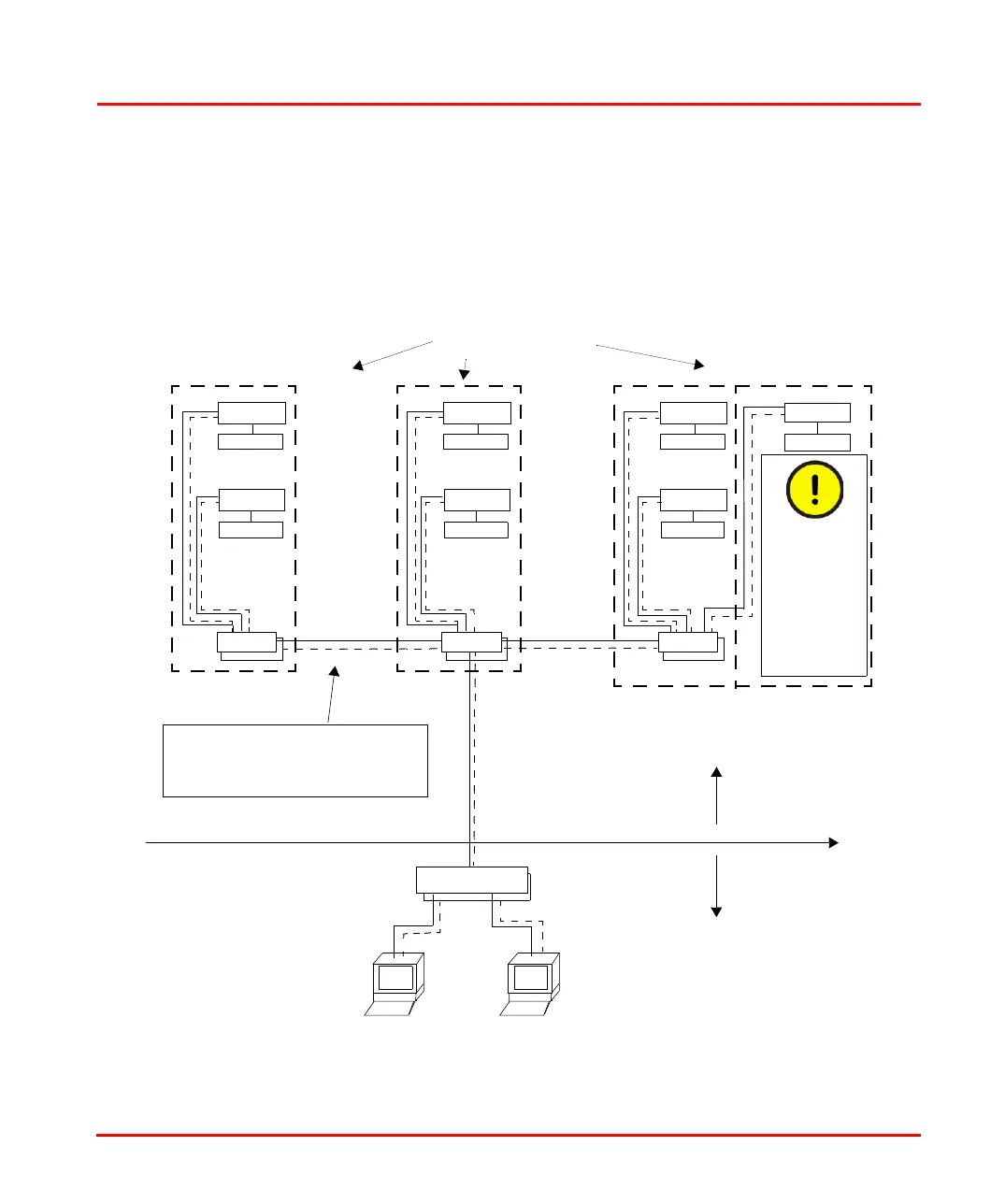

Figure 53. Example of AC 800M Controllers Connected to a Control Network
I/O
AC 800M
I/O
AC 800M
STP
AC 800M
I/O
Switch
Hub
I/O
AC 800M
I/O
AC 800M
STP
Switch
I/O
AC 800M
I/O
AC 800M
STP
Hub
Within industrial environments, only
use STP cable where full control of
the cabling is available.
Use only
STP inside
areas with
common
grounding
INDUSTRIAL
ENVIRONMENT
NON-INDUSTRIAL
ENVIRONMENT
FO
FO = Fiber Optic link
STP = Shielded Twisted Pair Link
Controllers mounted
in cabinets
Control Builder Operator Station
USE STP EXCEPTIONALLY
USE FO GENERALLY
USE STP GENERALLY
FO or STP FO or STP
and observe
maximum
cable length.
