Section 2 Installation Prefabricated aluminum profile
3BSE036351-510 A 67
Prefabricated aluminum profile
There are aluminum profiles for horizontal mounting. The aluminum profile gives
an excellent grounding and rigid mounting of products concerned. The aluminum
profile shall be fastened to the cabinet with at least 4 self-tapping screws.
The profile has grooves for screws that can be used for fastening the modules in an
environment with high vibrations.

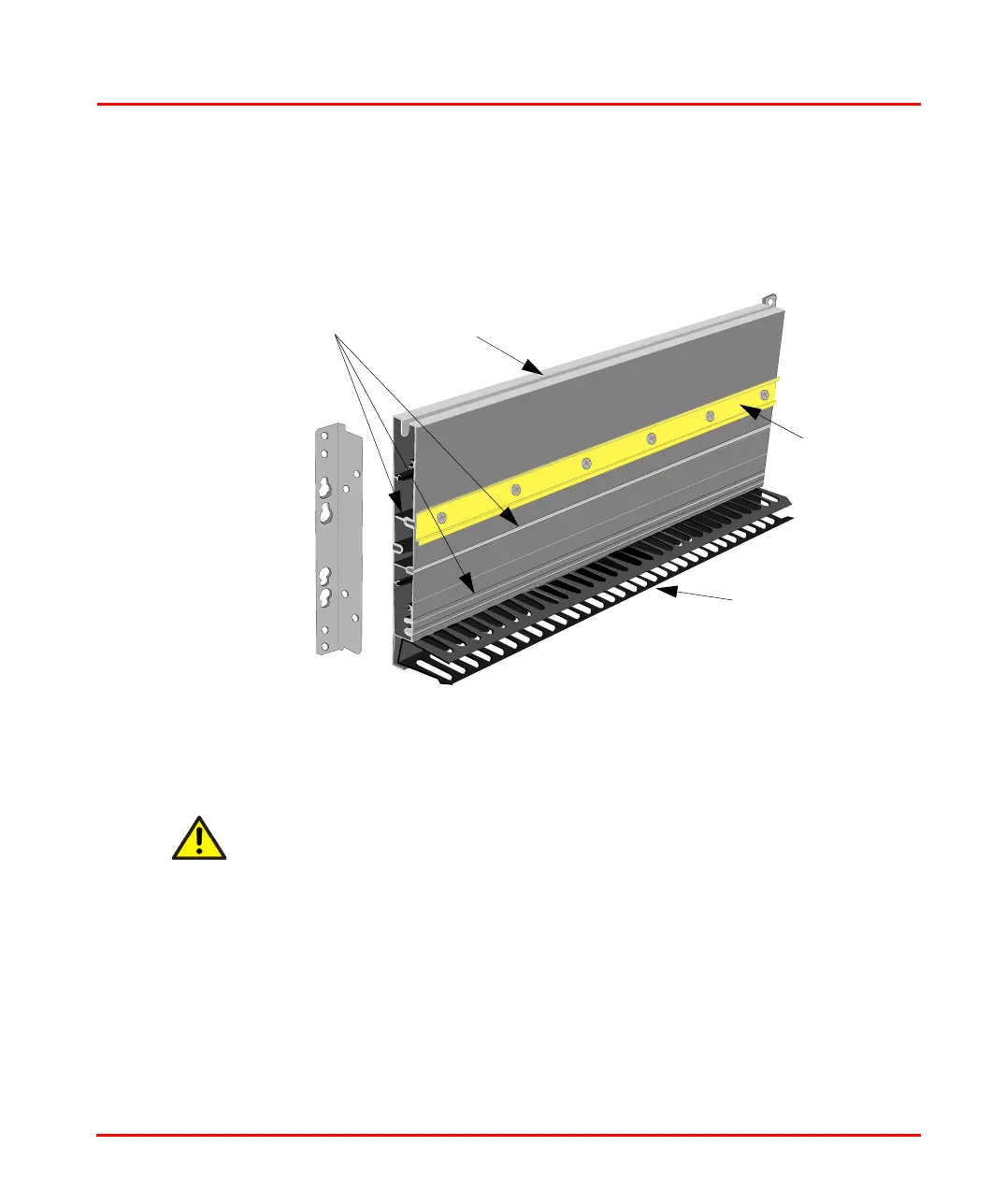

Figure 16. Al-profile for DIN-rail support
The AC 800M Controller and associated units must be unpowered and
disconnected when being mounted onto a DIN-rail!
Al-profile
Pre-formed
channels
Cable Duct
DIN-rail
