Section 2 Installation Installing the SS823/SS832 Voting Unit

3BSE036351-510 A 139

3. Connect the SS82x voting unit to the processor unit. Figure 46 on page 140

shows the connection to PM861/PM864/PM865 in redundant configuration.

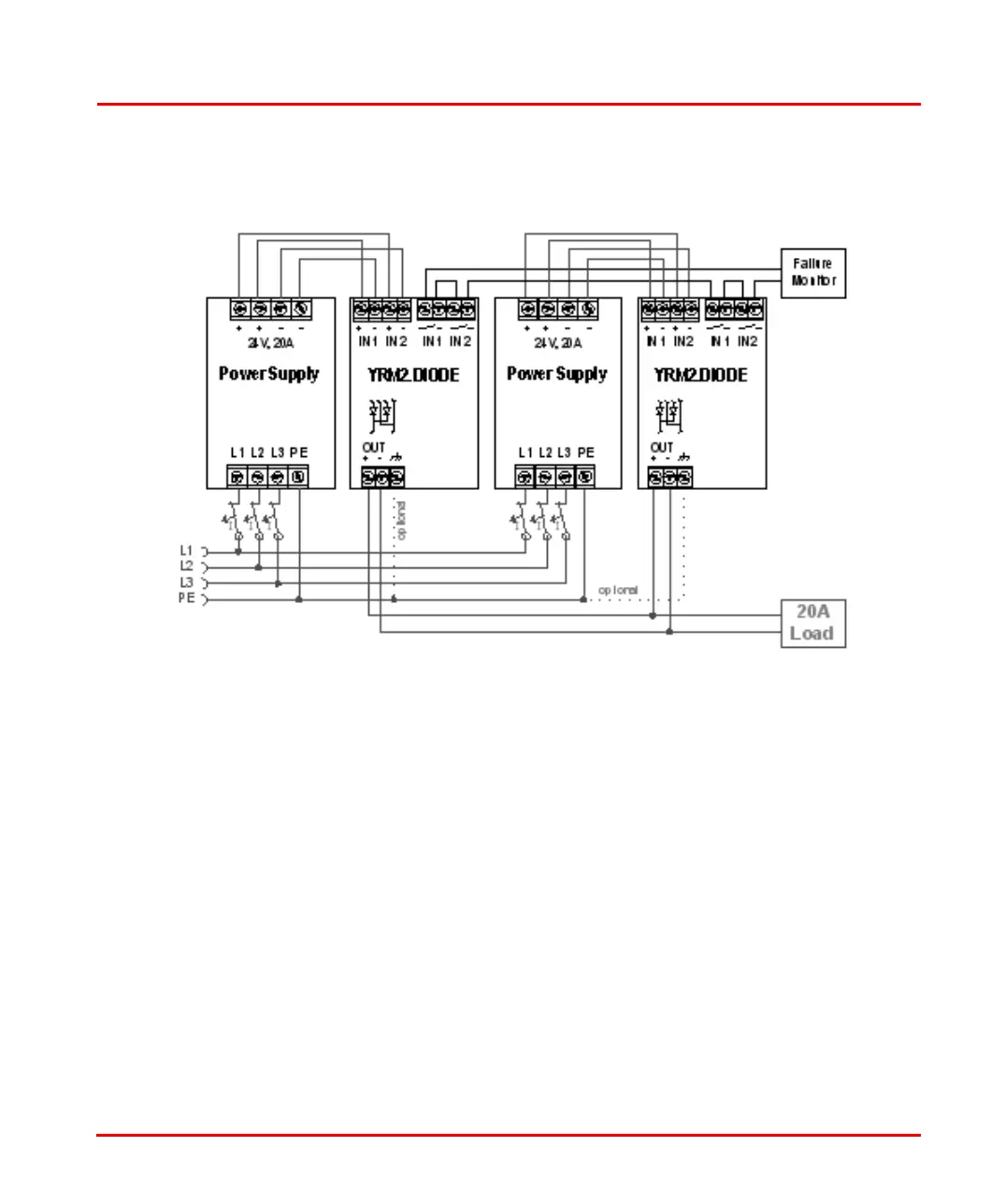

Figure 45. SS832 Redundant Configuration up to 20 A
