ABB AC 800M

Section 2 Installation Prefabricated aluminum profile
3BSE036351-510 A 69

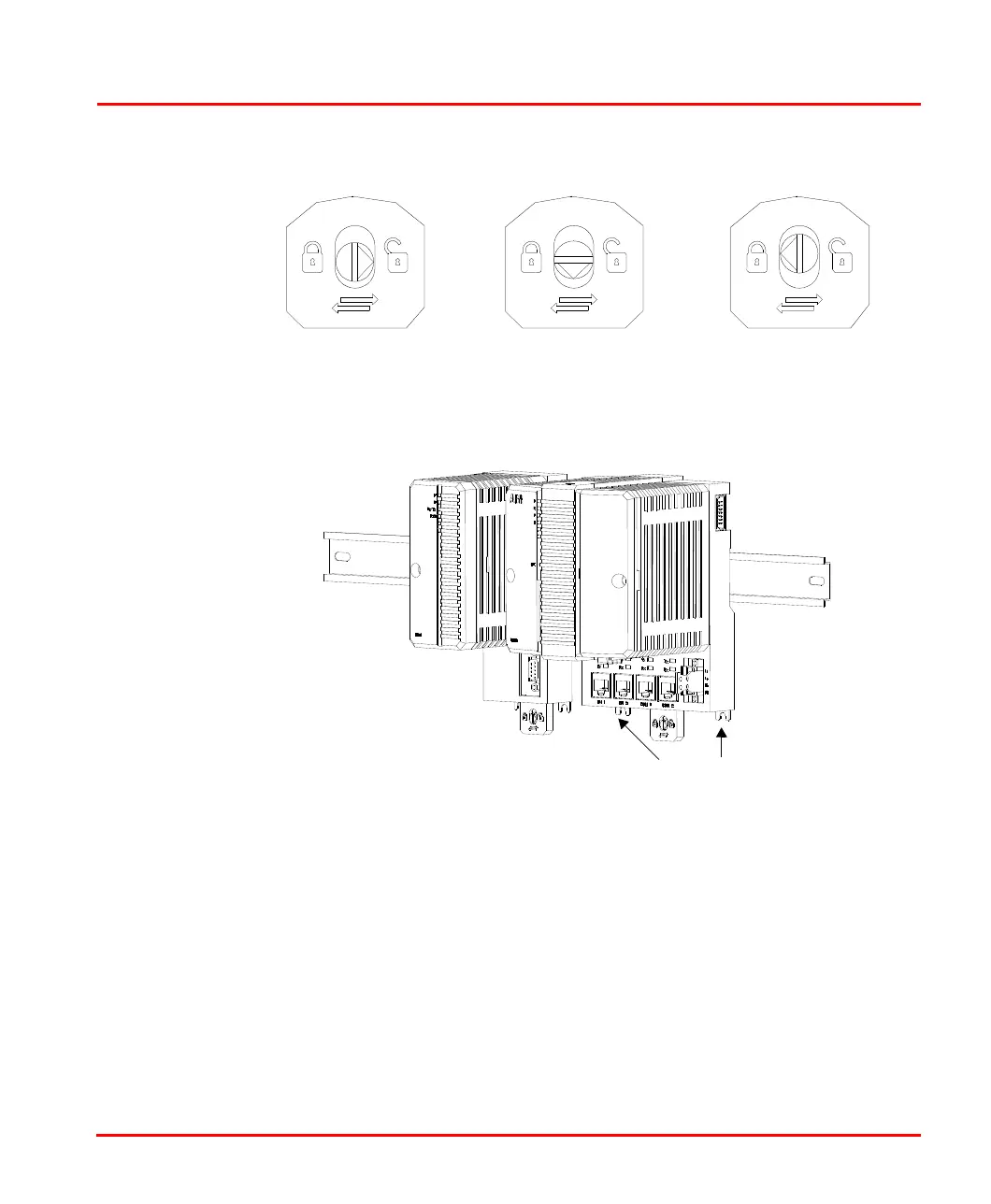

Figure 17. Baseplate Locking Device
Figure 18. DIN-rail Mounting of AC 800M Units
1. OPEN 2. SLIDE 3. LOCKED
Lugs for extra screws
to provide secure
mounting in locations
subject to vibration
