Section 2 Installation Installing the PM86x/TP830 Processor Unit in Redundant Configuration
3BSE036351-510 A 93
Communication Ports
Same as for single configuration (see Table 5 on page 84, Table 6 on page 85 and
Table 7 on page 86).

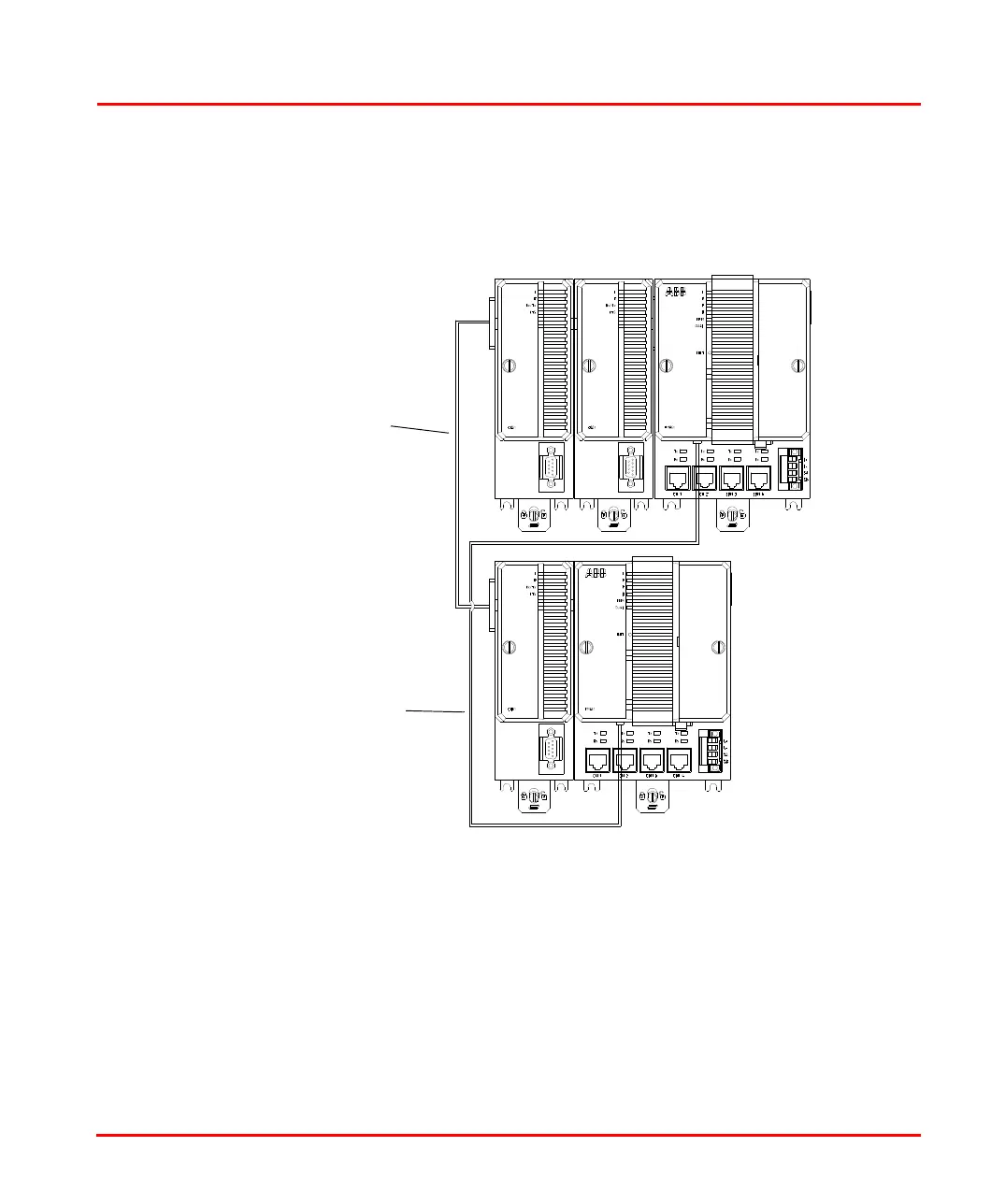

Figure 29. Connection of CPU redundancy
RCU Link cable
TK851
CEX-Bus ext.
cable TK850
