Installing the PM891 Processor Unit in Redundant Configuration Section 2 Installation

96 3BSE036351-510 A

Communication Ports

Same as for single configuration (see Table 8 on page 88and Table 9 on page 89).

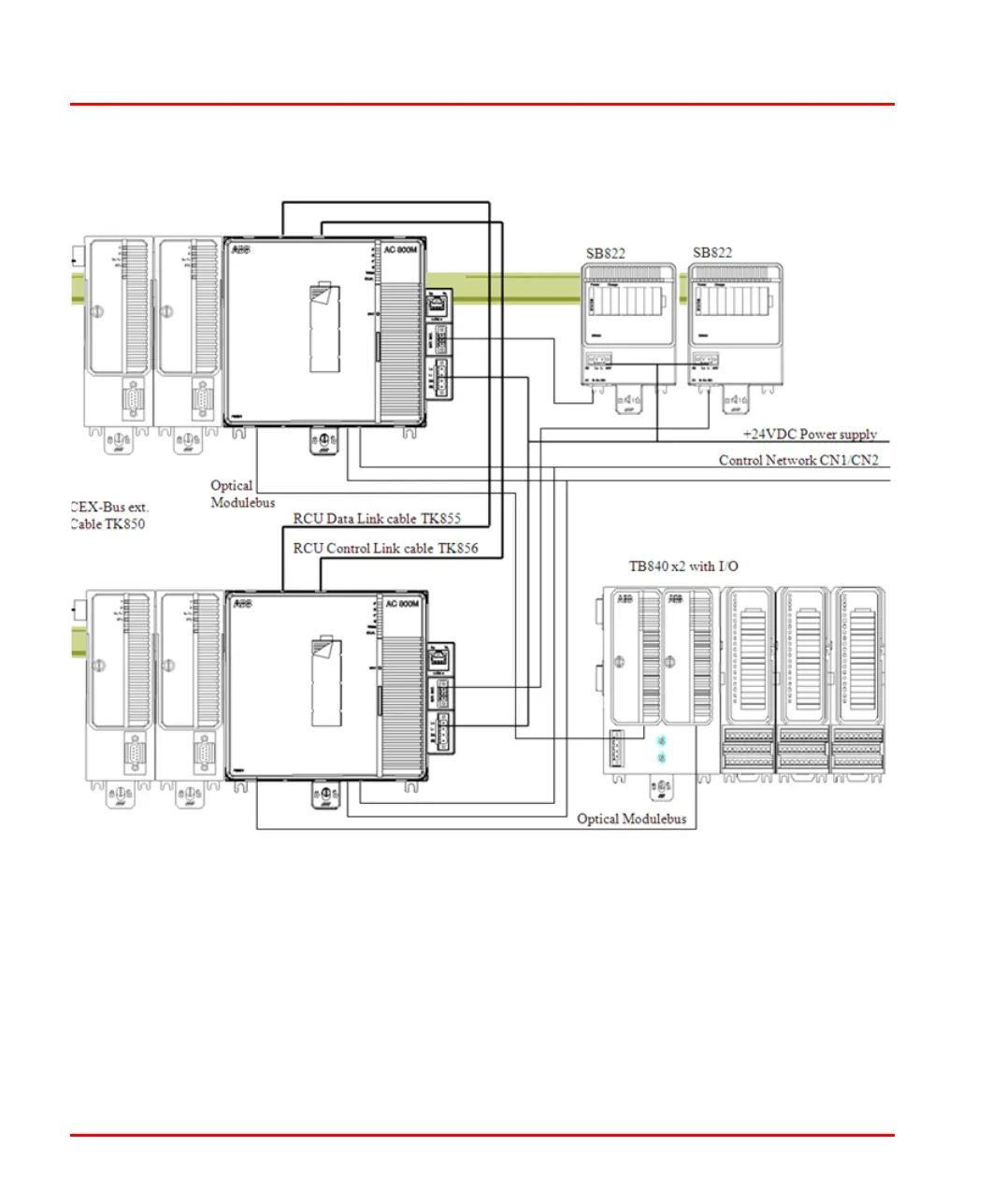

Figure 30. Example of PM891-Redundant configuration
