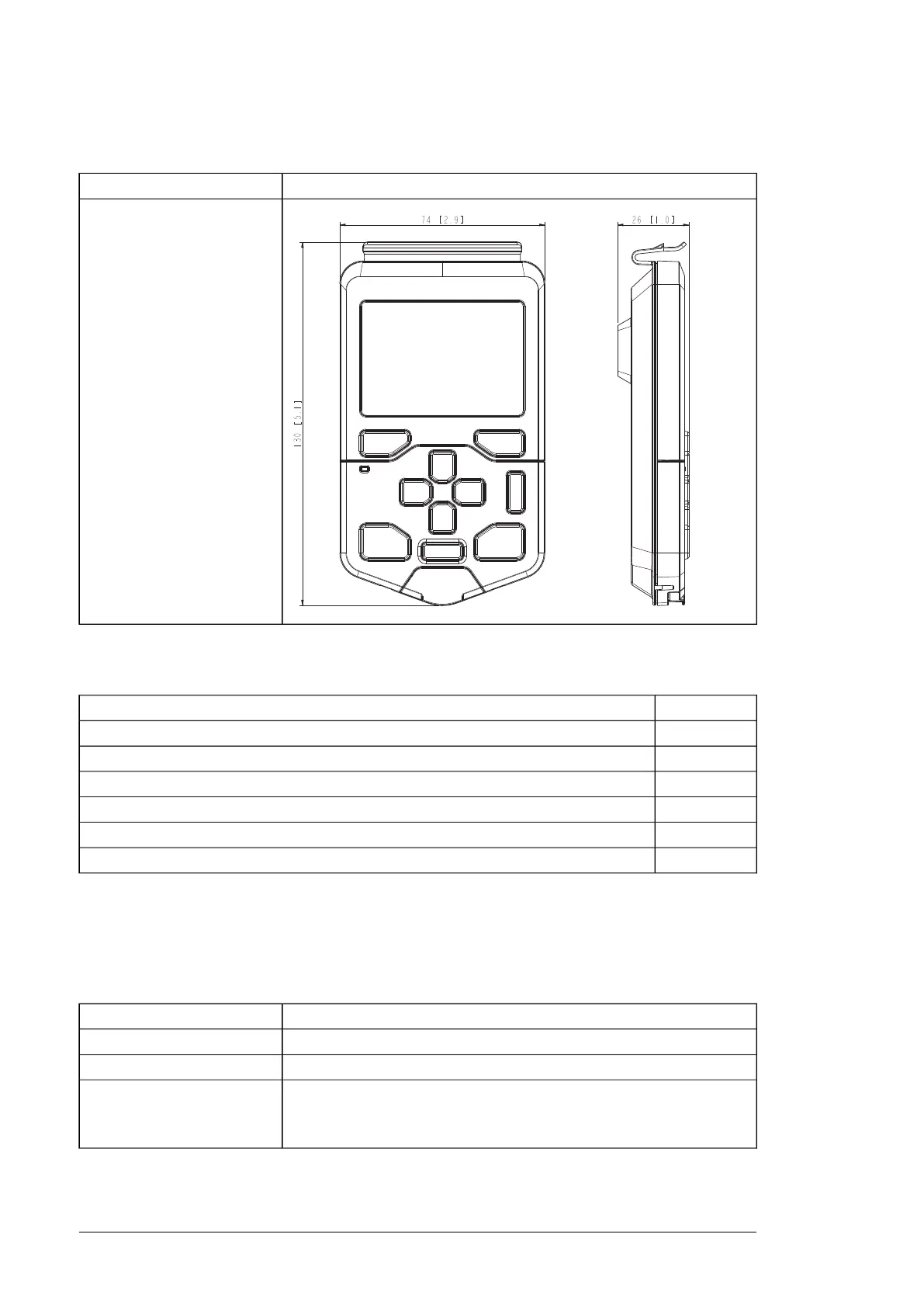

Dimensions and weight
130 gWeight
Height, width and depth mm [in.]
Degrees of protection
IP55Degree of protection, attached to a drive
IP20Separately
IP20When control panels are connected in stand-alone to RJ-45 cable
IP20When control panels are connected with USB cable.
IP55Control panel mounted to DPMP-01
IP65Control panel mounted to DPMP-02 or 03
IP20When Control panel is not mounted to DPMP-01 or 02 or 03 holder
Control panel mounted to a drive provides the same protection class as the drive unit itself.
For more information, see hardware manual of the drive product.
Materials
PC/ABSEnclosure
CardboardPackaging
PolycarbonateScreen
Do not dispose the control panel with municipal waste.Disposal
Check the local regulations for disposal of electronic products.
See also, drive related Recycling instructions and environmental information.
