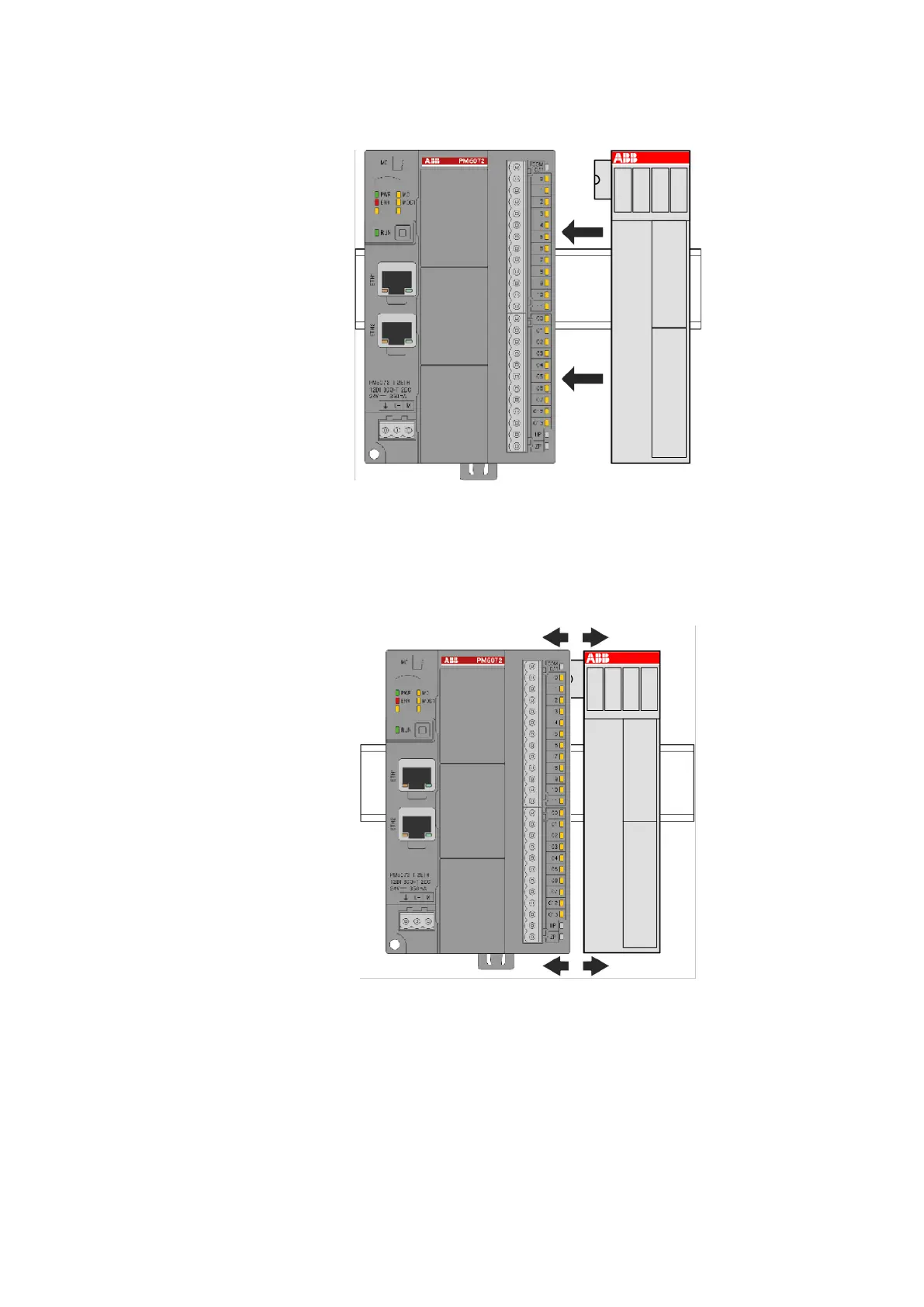

2. Attach I/O module by hand to an other module. The serial I/O bus is connected automati-

cally.

1. Remove I/O module by hand if connected.

Demounting I/O

modules

mounted on a

DIN rail

Device specifications

Installation > Mounting and demounting

2021/06/29 3ADR010635, 2, en_US 161
