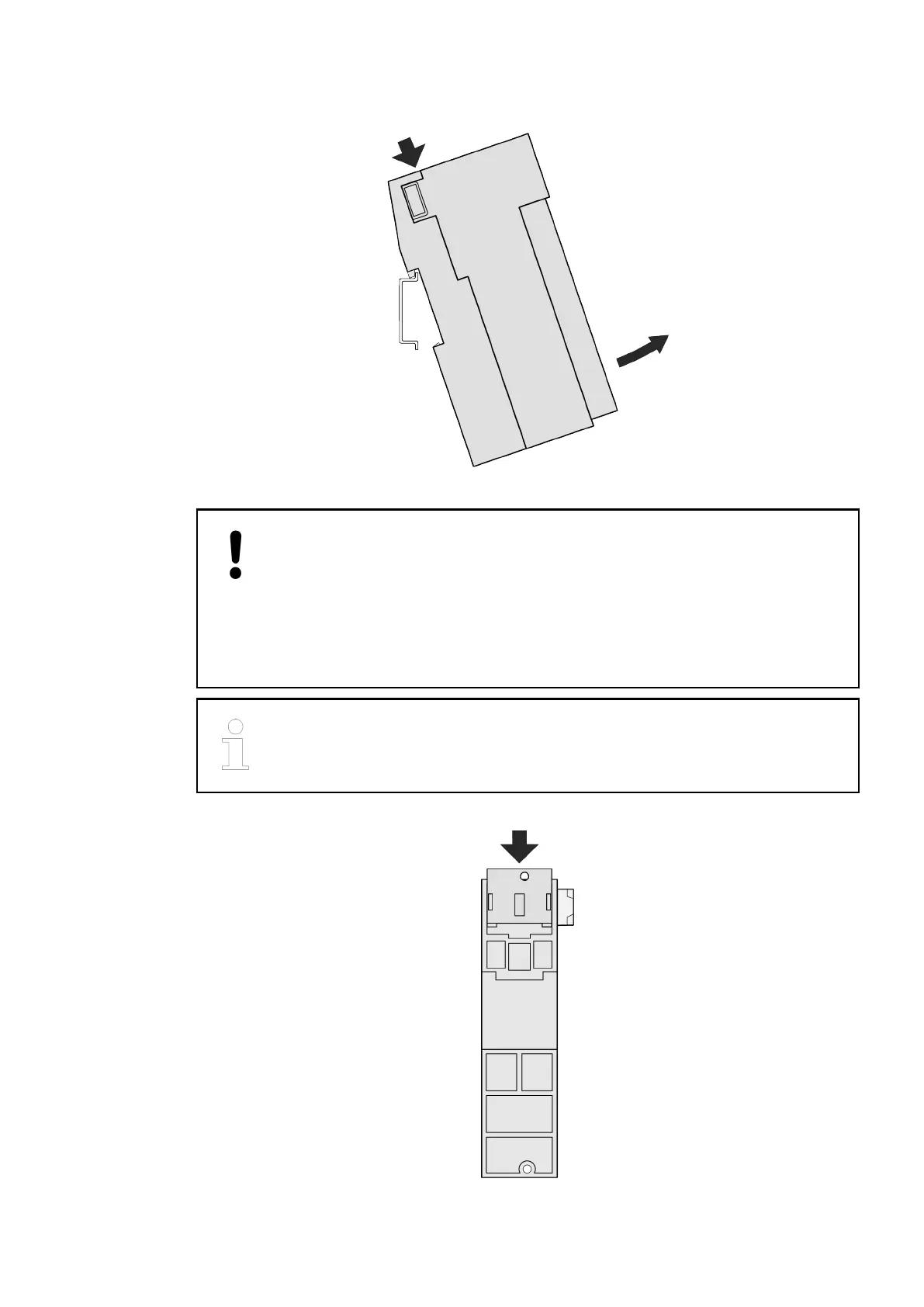

2. While pressing down I/O module pull it away from DIN rail.
NOTICE!
Risk of function faults!
Missing electrical contact by isolating screws or washers!
Use metal screws on the metal plate.
The metal plate must be included into the earthing concept of the plant.
Do NOT use isolating washers!
One TA566 wall mounting accessory
Ä
Chapter 6.5.4.2 “ TA566 - Wall
mounting accessory” on page 168 is needed per S500-eCo I/O module.
1. Snap in the TA566 at the back side of the I/O module.
Mounting I/O
modules on a
metal plate
Installation > Mounting and demounting
2021/06/293ADR010635, 2, en_US162
