5. Follow the same procedure to create the other shapes and labels.

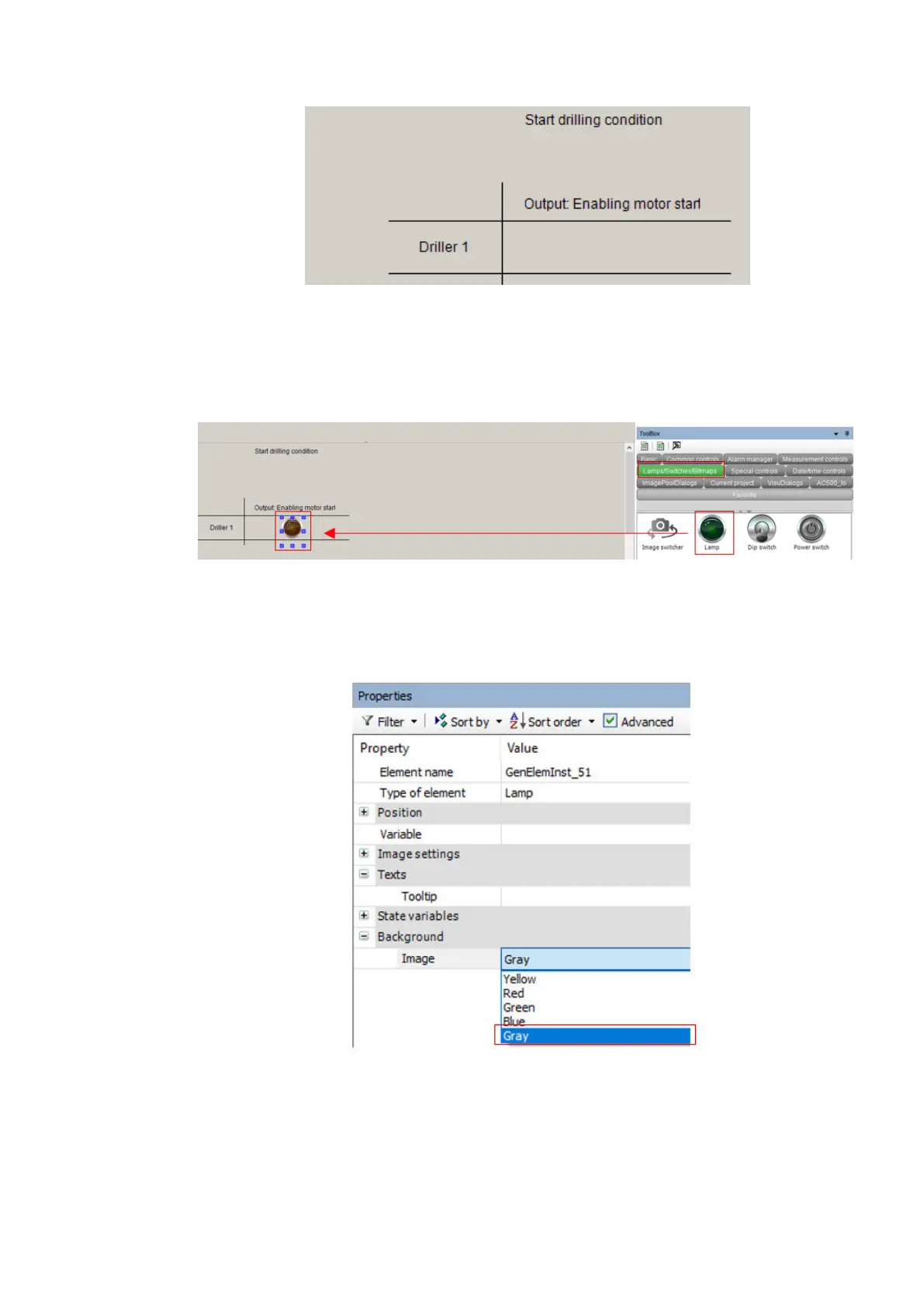

5.4.10.3.4 Lamp element for signal indication
1. Double-click on “PLC_VISU” in the device tree.
2. Select “ToolBox”.
3. Select “Lamps/Switches/Bitmaps”.
4. Drag and drop “Lamp” to the screen.
5. Adapt the size, if required.
6. Under “Image”, select “Gray”.
Example project > Create visualization
2021/06/29 3ADR010635, 2, en_US 55
