DiagCode State Name State Description and Output Setting
8005 Wait for Reset
2
Activation is TRUE. S_ESPE_In = TRUE. Check for S_AutoReset or wait
for rising trigger of Reset.
Ready = TRUE
S_ESPE_Out = FALSE
Error = FALSE
8000 Safety Output
Enabled
Activation is TRUE. S_ESPE_In = TRUE. Functional mode with
S_ESPE_Out = TRUE.
Ready = TRUE
S_ESPE_Out = TRUE
Error = FALSE

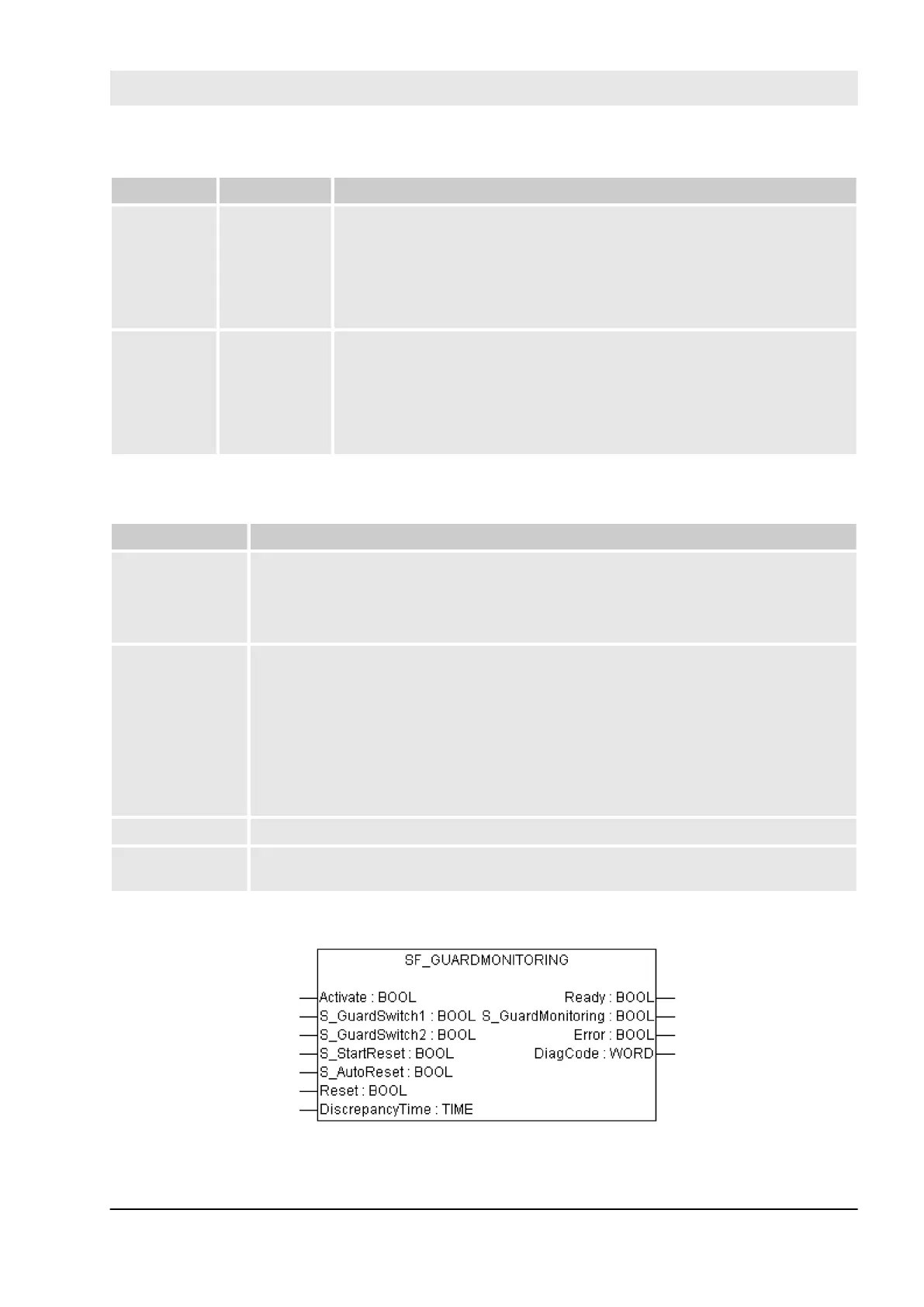

4.6.6.7 SF_GuardMonitoring
Standards Requirements
EN 953: 1997 3.3.3 Control Guard
n The hazardous machine functions "covered" by the guard cannot operate until the
guard is closed;
n Closing the guard initiates operation of the hazardous machine function(s).
EN 1088: 1995
3.2 Interlocking Guard
n The hazardous machine functions "covered" by the guard cannot operate until the
guard is closed;
n If the guard is opened while the hazardous machine functions are operating, a stop
instruction is given;
n When the guard is closed, the hazardous machine functions "covered" by the
guard can operate, but the closure of the guard does not by itself initiate their oper-
ation.
EN 954-1: 1996 5.4 Manual reset
ISO 12100-2:
2003
4.11.4 Restart following power failure/spontaneous restart
Configuration and programming
AC500-S Libraries > SafetyBlocks_PLCopen_AC500_v22.lib
