Note: Start or Run enable can be assigned to the same digital
input.
2. Setting the time period
The example shows how to set a start time. In addition, the stop
time and the start and stop days have to be set in the same
manner. These constitute a time period.

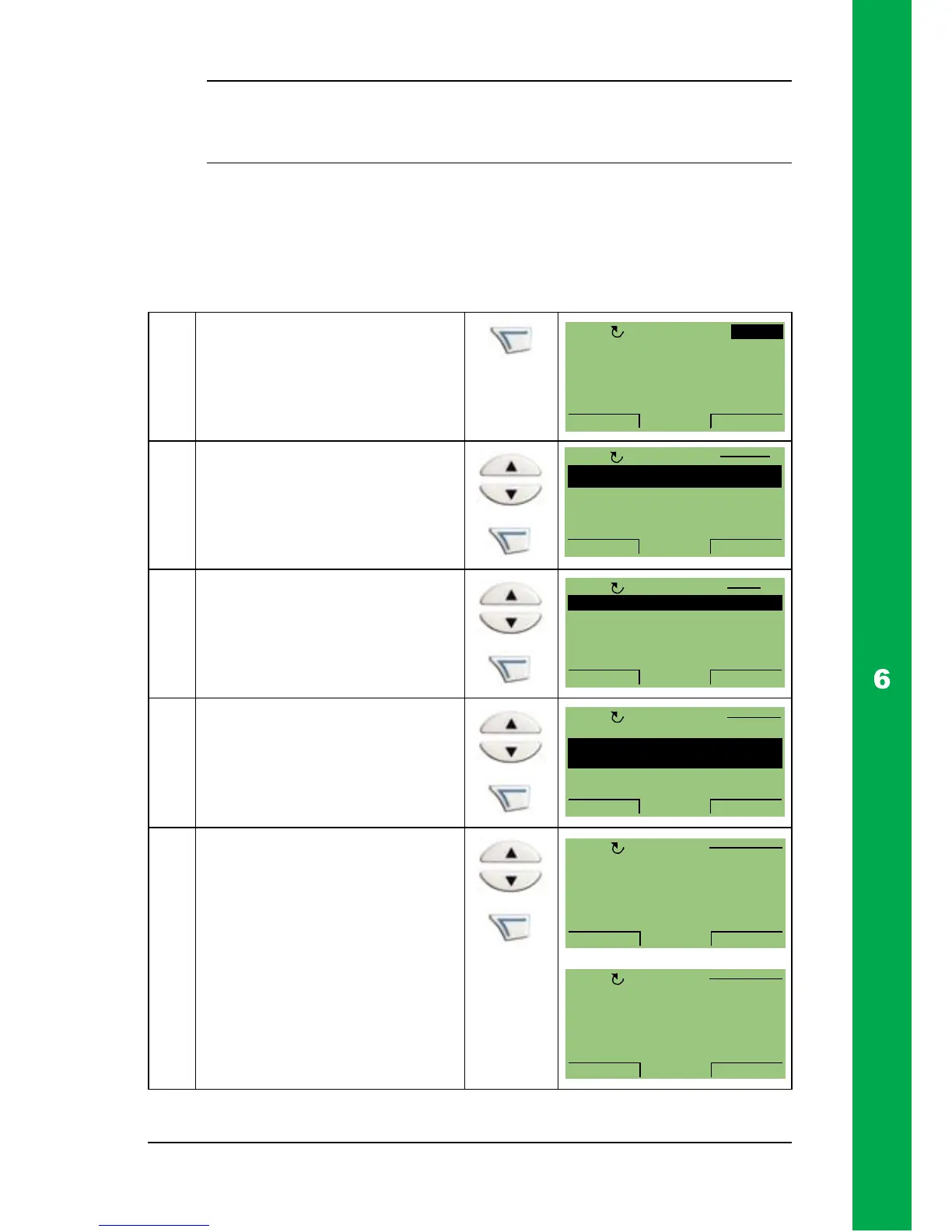

1 Press MENU to go to the
main menu.
2 Select PARAMETERS with
the UP/DOWN keys. Then
press ENTER to go to the
Parameters mode.
3 Scroll to group 36 TIMED
FUNCTIONS with the UP/
DOWN keys and press
SEL.
4 Scroll to START TIME 1
with the UP/DOWN keys
and press EDIT.
5 Change the highlighted part
of the time with the UP/
DOWN keys. Pressing
NEXT moves to the next
part. Press SAVE to save
the time.
0 A
0 Hz
0 %0.
0.
0.
0.0HzOFF
MENU
00:00
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER00:00
1
OFF
MAIN MENU
36 TIMED FUNCTIONS
37 USER LOAD CURVE
40 PROCESS PID SET 1
41 PROCESS PID SET 2
42 EXT / TRIM PID
PAR GROUPS 36
EXIT
SEL00:00
OFF
3601 TIMERS ENABLE
3602 START TIME 1
00:00:00
3603 STOP TIME 1
3604 START DAY 1
PARAMETERS
EXIT
EDIT00:00
OFF
3602 START TIME 1
PAR EDIT
08:00:00
[14400]
OFF
CANCEL NEXT00:00
3602 START TIME 1
PAR EDIT
08:30:00
[15300]
OFF
CANCEL NEXT00:00
