132 Real-time clock and timed functions
ACH550-01 User's Manual

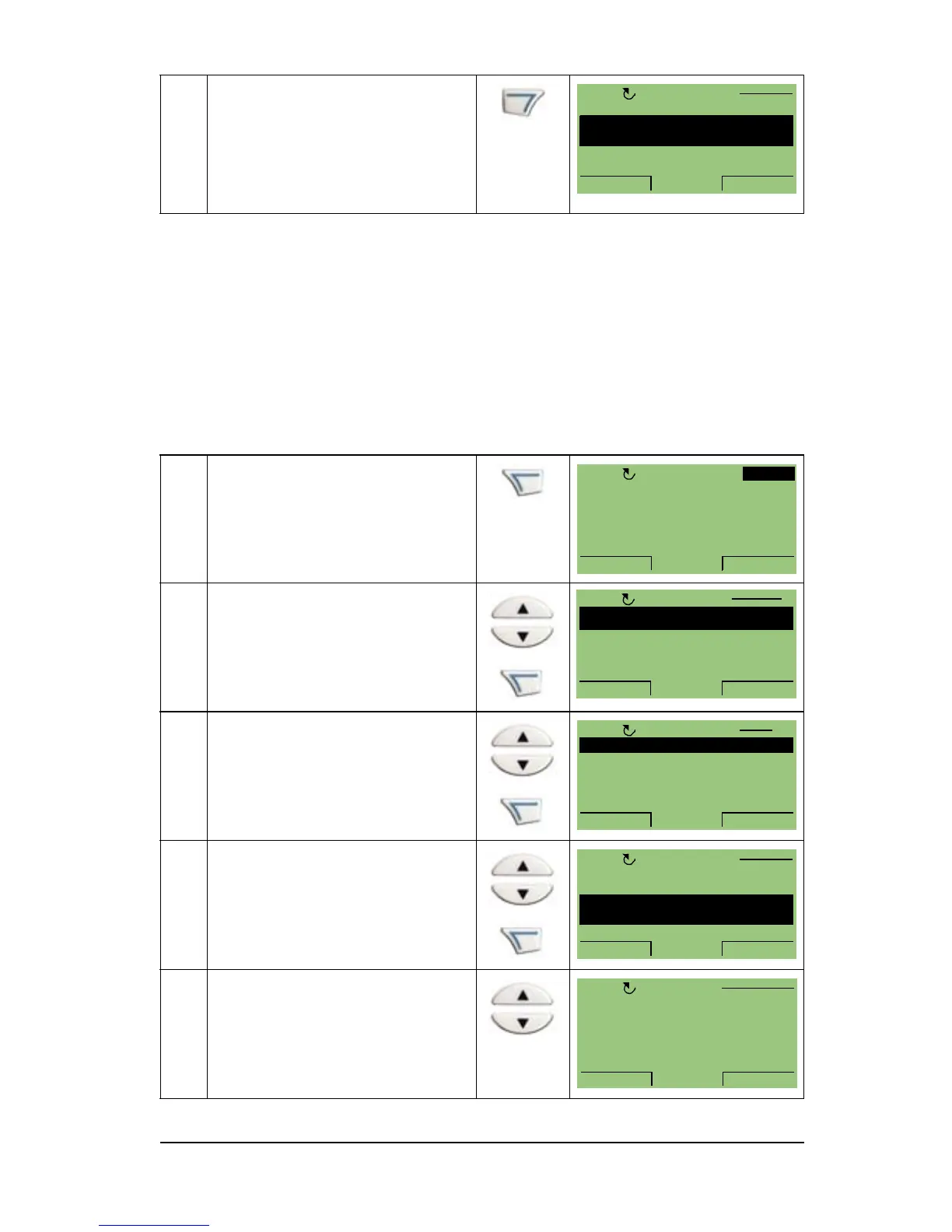

3. Creating a timer
Different time periods can be collected in a timer and connected
to parameters. The timer can act as the source of start/stop and
change direction commands, constant speed selection and relay
activation signals. Time periods can be in multiple timed
functions, but a parameter can only be connected to a single
timer. It is possible to create up to four timers.
To create a timer, follow these steps:
6 The new value is displayed
below the START TIME 1
text. Press EXIT to return to
the main menu. Continue
with STOP TIME 1, START
DAY 1 and STOP DAY 1.
1 Press MENU to go to the
main menu.
2 Select PARAMETERS with
the UP/DOWN keys. Then
press ENTER to go to the
Parameters mode.
3 Scroll to group 36 TIMED
FUNCTIONS with the UP/
DOWN keys and press
SEL.
4 Scroll to TIMER 1 SRC with
the UP/DOWN keys and
press EDIT.
5 The current value is
displayed. Change the
value with the UP/DOWN
keys.
3601 TIMERS ENABLE
3602 START TIME 1
08:30:00
3603 STOP TIME 1
3604 START DAY 1
PARAMETERS
EXIT
EDIT00:00
OFF
0 A
0 Hz
0 %0.
0.
0.
0.0HzOFF
MENU
00:00
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER00:00
1
OFF
MAIN MENU
36 TIMED FUNCTIONS
37 USER LOAD CURVE
40 PROCESS PID SET 1
41 PROCESS PID SET 2
42 EXT / TRIM PID
PAR GROUPS 36
EXIT
SEL00:00
OFF
3622 BOOST SEL
3623 BOOST TIME
3626 TIMER 1 SRC
NOT SEL
3627 TIMER 2 SRC
PARAMETERS
EXIT
EDIT00:00
OFF
3626 TIMER 1 SRC
PAR EDIT
NOT SEL
[0]
OFF
CANCEL SAVE00:00
