ABB ACH550-01 - Page 138

Real-time clock and timed functions 133
ACH550-01 User's Manual
4. Connecting parameters
The parameter example 1201 CONST SPEED SEL has to be
connected to the timer so that the timer acts as the source of
constant speed activating. A parameter can only be connected
to one timer.

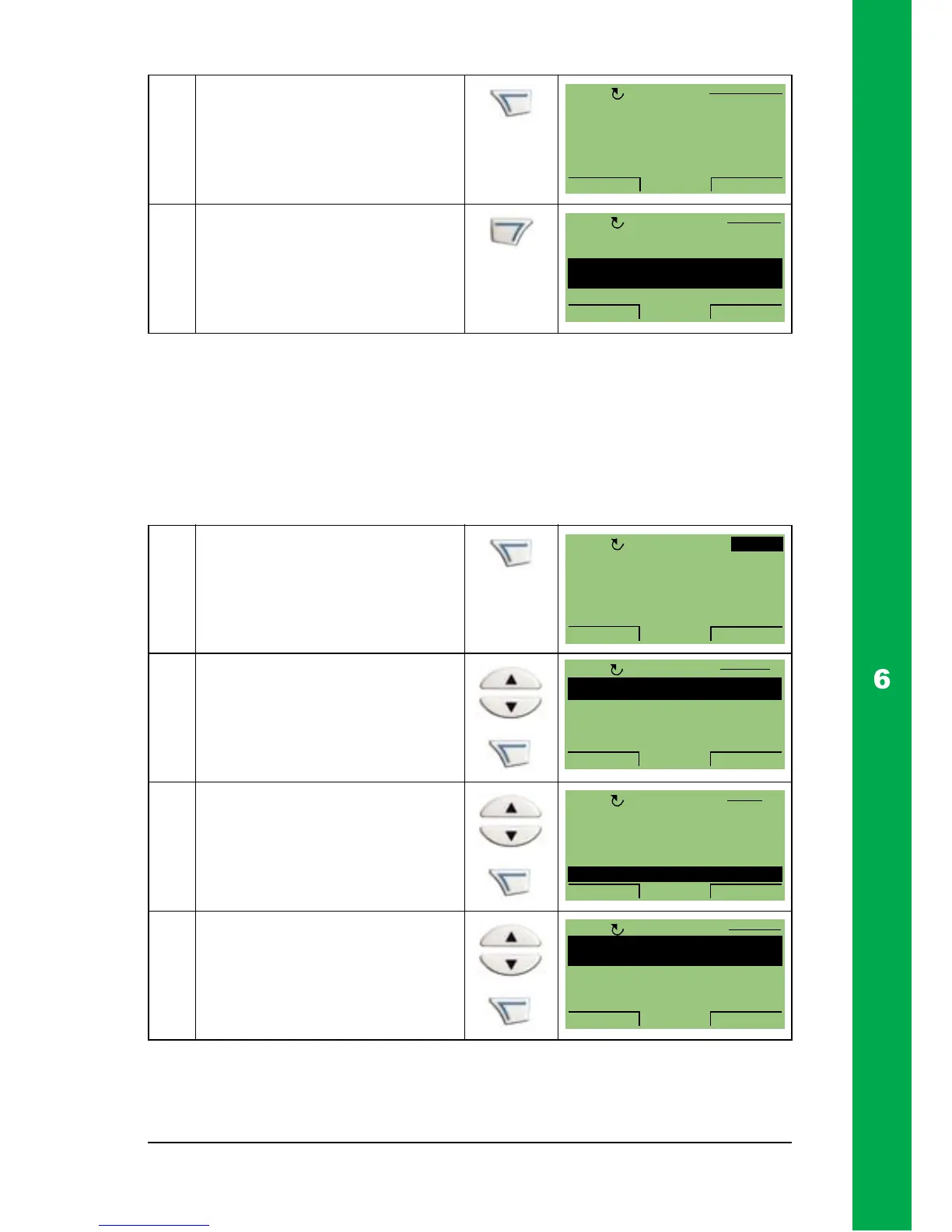

To connect the parameter, follow these steps:
6 Press SAVE to save the
new value.
7 The new value is displayed
below the TIMER 1 SRC
text. Press EXIT to return to
the main menu.
1 Press MENU to go to the
main menu.
2 Select PARAMETERS with
the UP/DOWN keys. Then
press ENTER to go to the
Parameters mode.
3 Scroll to group 12
CONSTANT SPEEDS and
press SEL.
4 Scroll to parameter 1201
CONSTANT SPEED SEL
and press EDIT.
3626 TIMER 1 SRC
PAR EDIT
P1
[1]
OFF
CANCEL SAVE00:00
3622 BOOST SEL
3623 BOOST TIME
3626 TIMER 1 SRC
P1
3627 TIMER 2 SRC
PARAMETERS
EXIT
EDIT00:00
OFF
0 A
0 Hz
0 %0.
0.
0.
0.0HzOFF
MENU00:00
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER
00:00
1
OFF
MAIN MENU
03 FB ACTUAL SIGNALS
04 FAULT HISTORY
10 START/STOP/DIR
11 REFERENCE SELECT
12 CONSTANT SPEEDS
PAR BACKUP 12
EXIT
SEL00:00
OFF
1201 CONST SPEED SEL
DI3
1202 CONST SPEED 1
1203 CONST SPEED 2
1204 CONST SPEED 3
PARAMETERS
EXIT
EDIT00:00
OFF
