138 Real-time clock and timed functions
ACH550-01 User's Manual

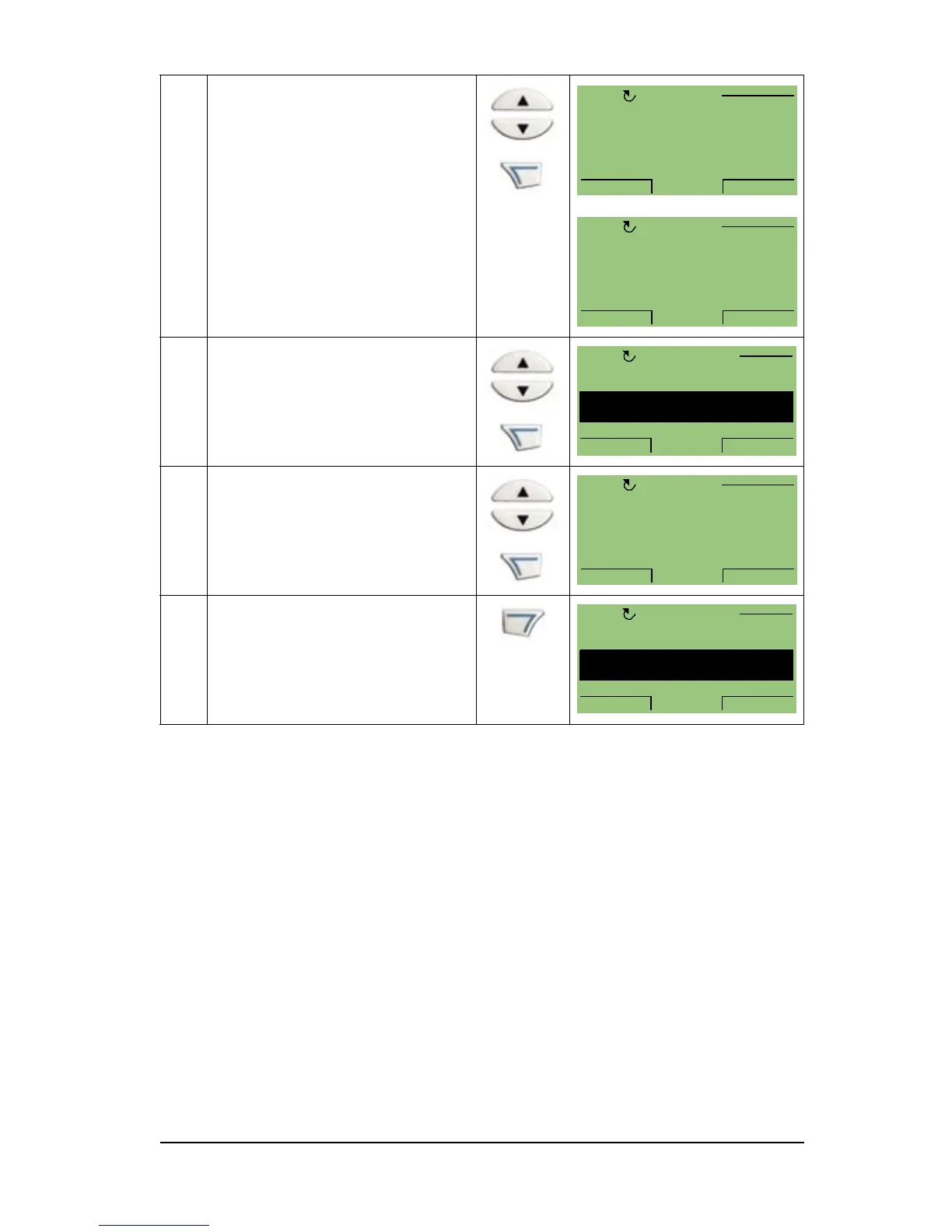

7 Change the highlighted part
of the time with the UP/
DOWN keys. Pressing
NEXT moves to the next
part. Press SAVE to save
the time.
8 Scroll to TIMER 1 SRC and
press EDIT.
9 Select BOOST with the UP/
DOWN keys and press
SAVE.
10 The new value is displayed
under TIMER 1 SRC. Press
EXIT to return to the main
menu.
3623 BOOST TIME
PAR EDIT
00:00:00
[0]
OFF
CANCEL NEXT
00:00
3623 BOOST TIME
PAR EDIT
00:30:00
[900]
OFF
CANCEL NEXT00:00
3622 BOOST SEL
3623 BOOST TIME
3626 TIMER 1 SRC
NOT SEL
3627 TIMER 2 SRC
PARAMETERS
EXIT
EDIT
00:00
OFF
3626 TIMER 1 SRC
PAR EDIT
BOOST
[16]
OFF
CANCEL SAVE00:00
3622 BOOST SEL
3623 BOOST TIME
3626 TIMER 1 SRC
BOOST
3627 TIMER 2 SRC
PARAMETERS
EXIT
EDIT00:00
OFF
